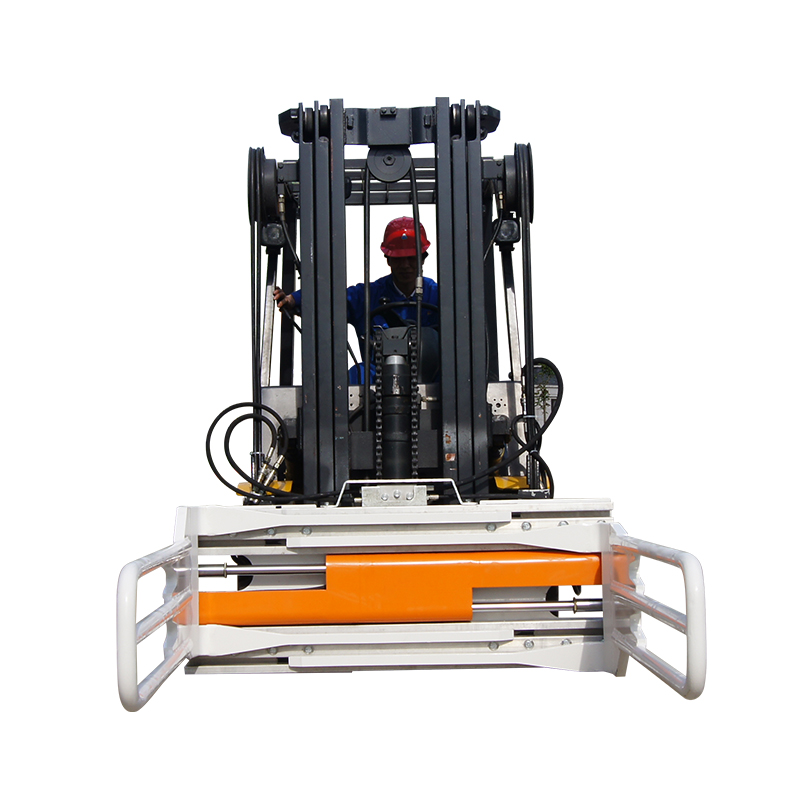

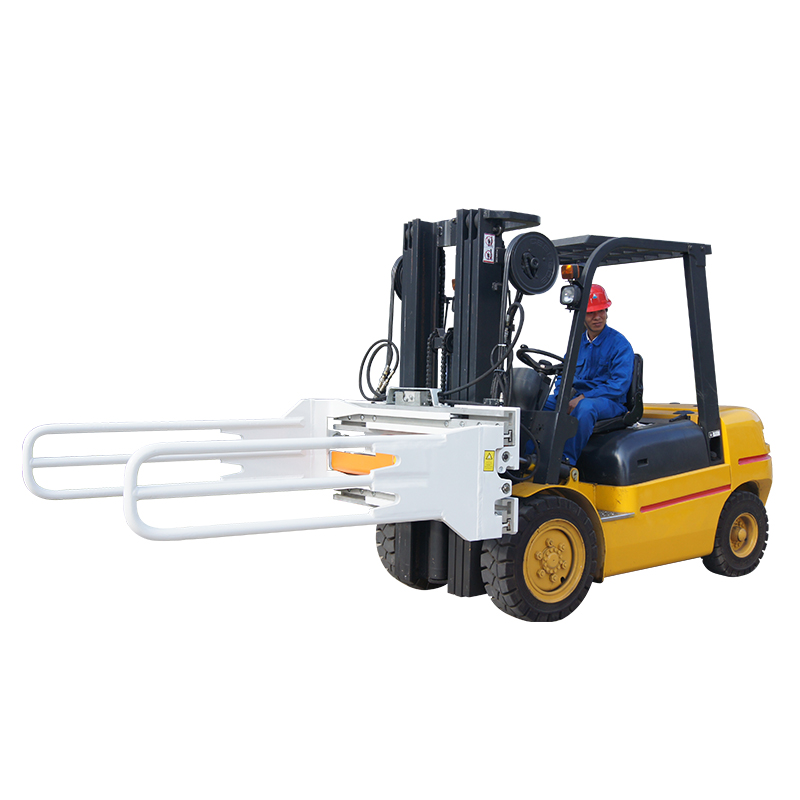

Name:Multi-purpose Foam Clamp Forklift Attachment
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Designed specially to handle foam rubbe or chemical fiber without damaging it, Lateral sliding armdesign for smooth clamping and sideshifting functions are applied for high efficienty, safety, dur-ability and economy, Found in industries that need to handle foam blocks, with high effeciency.Come in wide range of opening and arm design for different load.

Specifications:
CAPACITY@
LOAD CENTER
MODEL
OPENING
RANGE
FRAME
WIDTH
ARM
HEIGHT
ARM
LENGTH
MIN TRUCK
CARRIAGE WIDTH
VERTICAL
CENTER OFGRAVITY
WEIGHT
EFFECTIVE
THICKNESS
HORIZONTALCENTER OFGRAVITY
(kg@mm) A (mm) W(mm) D (mm) B(mm) M (mm) VcG (mm) (kg) ET (mm) HCG (mm)
1900@500 HMC19D-B002 910-2290 1260 400 1800 890 224 510 128 375
1900@500 HMC19D-B006 425-2265 1600 600 1800 968 232 660 128 375
1900@500 HMC19D-B008 900-2300 1260 500 2500 890 224 660 128 623
1900@500 HMC19D-C001 740-2580 1600 600 1800 1040 233 635 128 370
1900@500 HMC19D-C005 440-2280 1600 400 1800 1040 234 580 128 343
2700@500 HMC27D-B003 760-2600 1600 400 2500 928 253 860 128 575
2700@500 HMC27D-C001 760-2600 1600 400 1800 980 263 710 148 365
