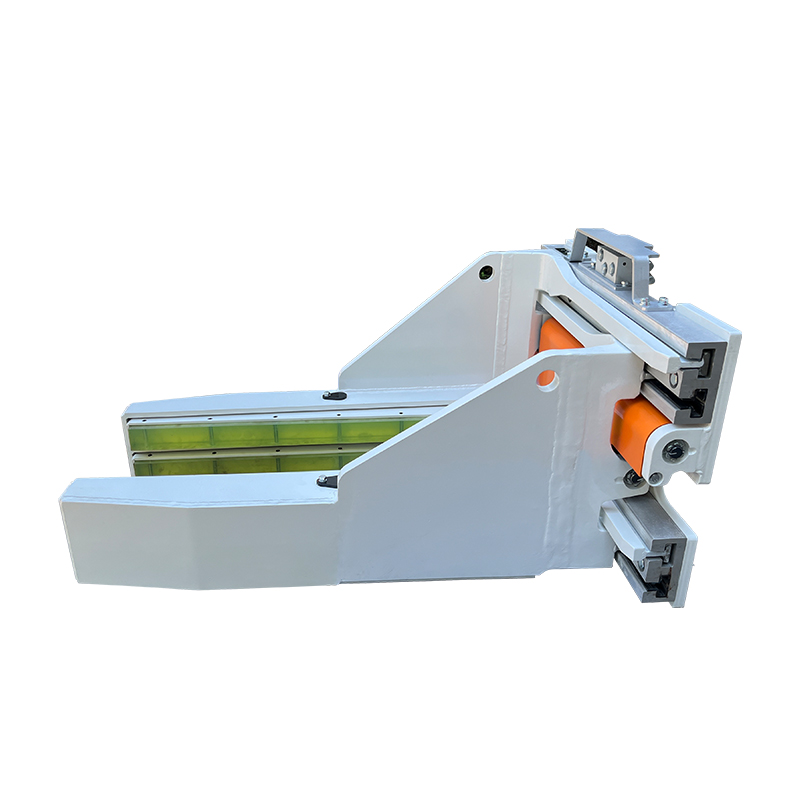

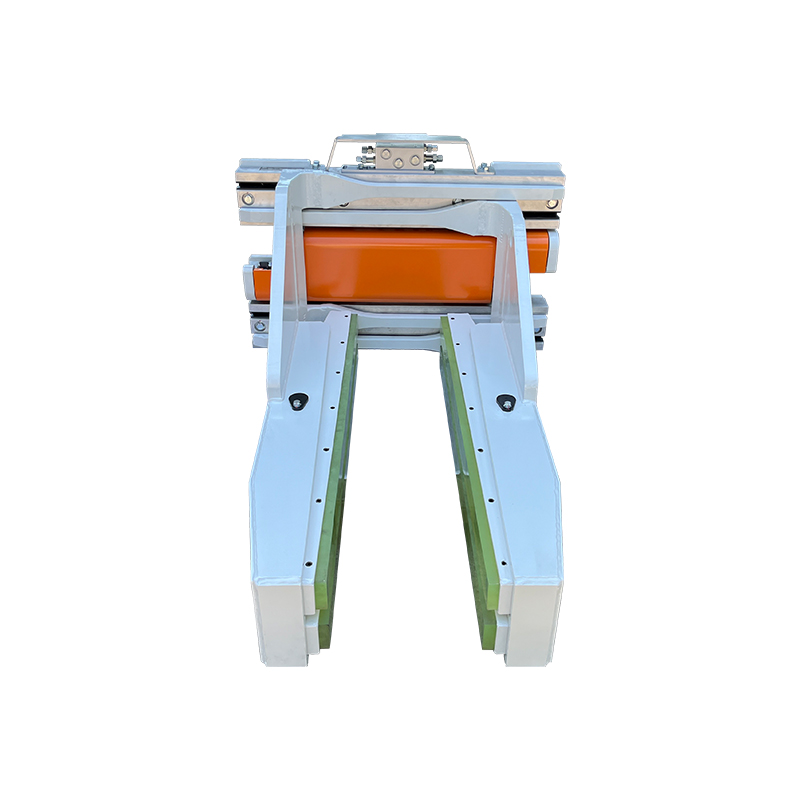

Name:Multi-purpose Block Clamp Forklift Attachment
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Block clamp can efficiently handle and stack nearly any type of solid, regular cubic goods under normatemperature without pallet, Lateral sliding arm design for smooth clamping and sideshifting function.Widely used in construction material, metallurgy industries for handling concrete blocks, cement brickscarbon cubes, etc. The high structural strength and durability can ensure safe, productive applicationand long service life.

Specifications:
CAPACITY@
LOAD CENTER
MODEL
OPENING
ARMRAMGELENGTH
ARM
LENGTH
ARMLENGTH ARMTHICKNESS FRAMEWIOTH WEIGHT
(kg/mm) A(mm) L{mm) L (mm) E (mm) W {mm) (kg)
1900@500 ZKC19F-0001 340-1490 800 346 110 940 545
2700@500 ZKC27F-0001 430-1790 1000 346 130 1016 786
2700@500 ZKC27F-0002 430-1790 1000 309 130 1016 757
2700@500 ZKC27D-C001 290-1610 1100 128 210 1016 500
2700@500 ZKC27D-C002 290-1610 1100 238 210 1016 650
2700@500 ZKC27D-C004 280-1600 1400 242 220 1016 650
2700@500 ZKC27D-C005 280-1600 1400 128 220 1016 661
2700@500 ZKC27D-C006 350-1680 1400 117 200 1016 620
2700@500 ZKC27D-C007 265-1615 1400 127 200 1016 660
2700@500 ZKC27D-0008 350-1680 1000 117 200 1016 620
2700@500 ZKC27D-C009 290-1610 1200 238 210 1016 710
2700@500 ZKC27D-C011 403-1753 1000 230 168 1016 790
