Products – Portable Drum Handling Equipment

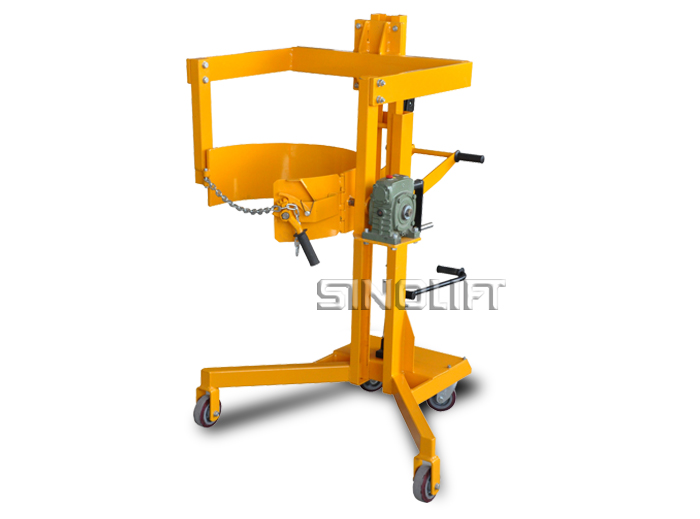

Name:DTF350B Hydraulic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

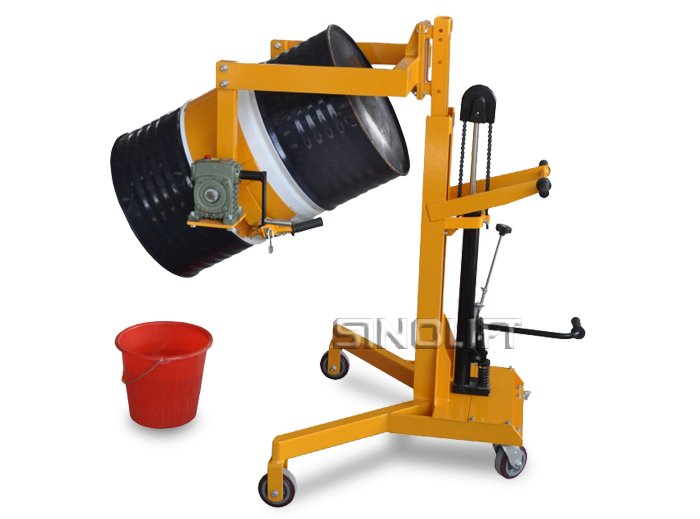

Designed to lift and pour a heavy drum up to 600mm(26") high. Manually rotate a drum 360 degrees in either direction. Lock drum in vertical position to prevent spills while transporting, or in horizontal position to dispense. Also move a drum to and from pallets.Quickly lift, move and dispense a heavy drum,

Standard unit with gear reduction and the Stop brake. Adds gears for easy rotation and controlled dumping.

Pour drum beyond the V-shaped base. It is easy to Move drum off and on pallets.


Specifications:
Model DTF350B
Capacity kg 300
Drum Plastic/Iron
Drum Tilting Degree 360°
Drum Size mm Φ570~600
Wheel mm Φ150×20
Previous:DT300BE Portable Drum Mover Electric ScaleNext:NO ProductsReturn
