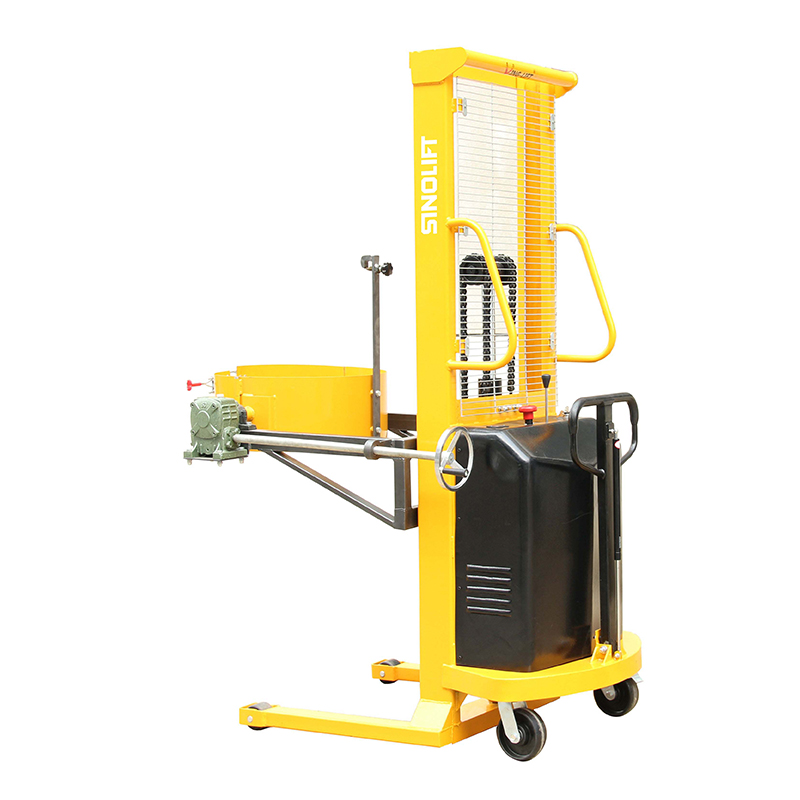

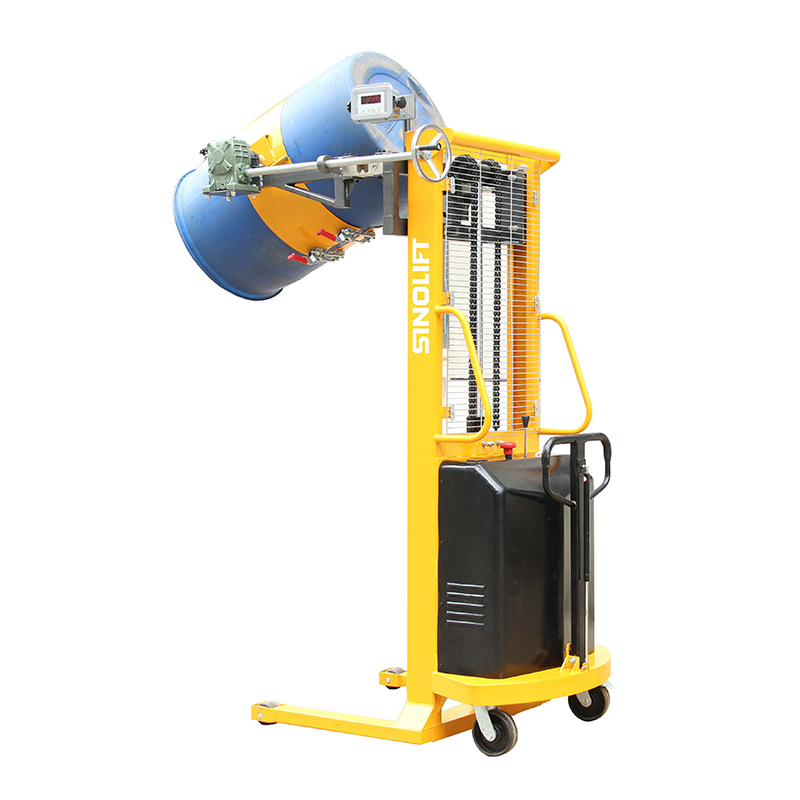

Name:YL500C YL500C-1 Electric Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

High quality hydraulic pump station, powerful.

“C” shape steel mast made by special rolled craft, strong and safe.

Simple design, nimble, easy to operate.

High quality oil cylinder, lift fast, 180 electrical turning.

With electronic scale built-in YL500C -1, theScale function: zero collection, gross/wet weighing, total weight tolerance:±100g.

Use for moving, loading and tilting liquid such as dyes, paint, adhesive, oil in chemical industry, food workshop.


Specifications:
Model YL500C YL500C-1
Capacity kg 500 500
Max. lifting height mm 1600 1600
Drum size 55 gallon ( (Ø572x900) steel
Powered lifting yes/no yes yes
Drum tilting (electric/manual) manual manual
With weighing scale yes/no no yes
Lifting speed mm/s 120 120
Load rollers size mm Ø80x55 Ø80x55
Steering wheel size mm Ø150x50 Ø150x50
Width of legs (Inner/Out) mm 640/800 640/800
Leg length mm 630 630
Turning radius mm 1750 1750
Lifting motor kw 1.5 1.5
Battery V/Ah 12/120 12/120
Charger for Stacker V 12 12
Charger for Weighing Scale V 6 6
Overall Size(LxWxH) mm 1400x950x2060 1400x950x2060
Weight kg 240 245
