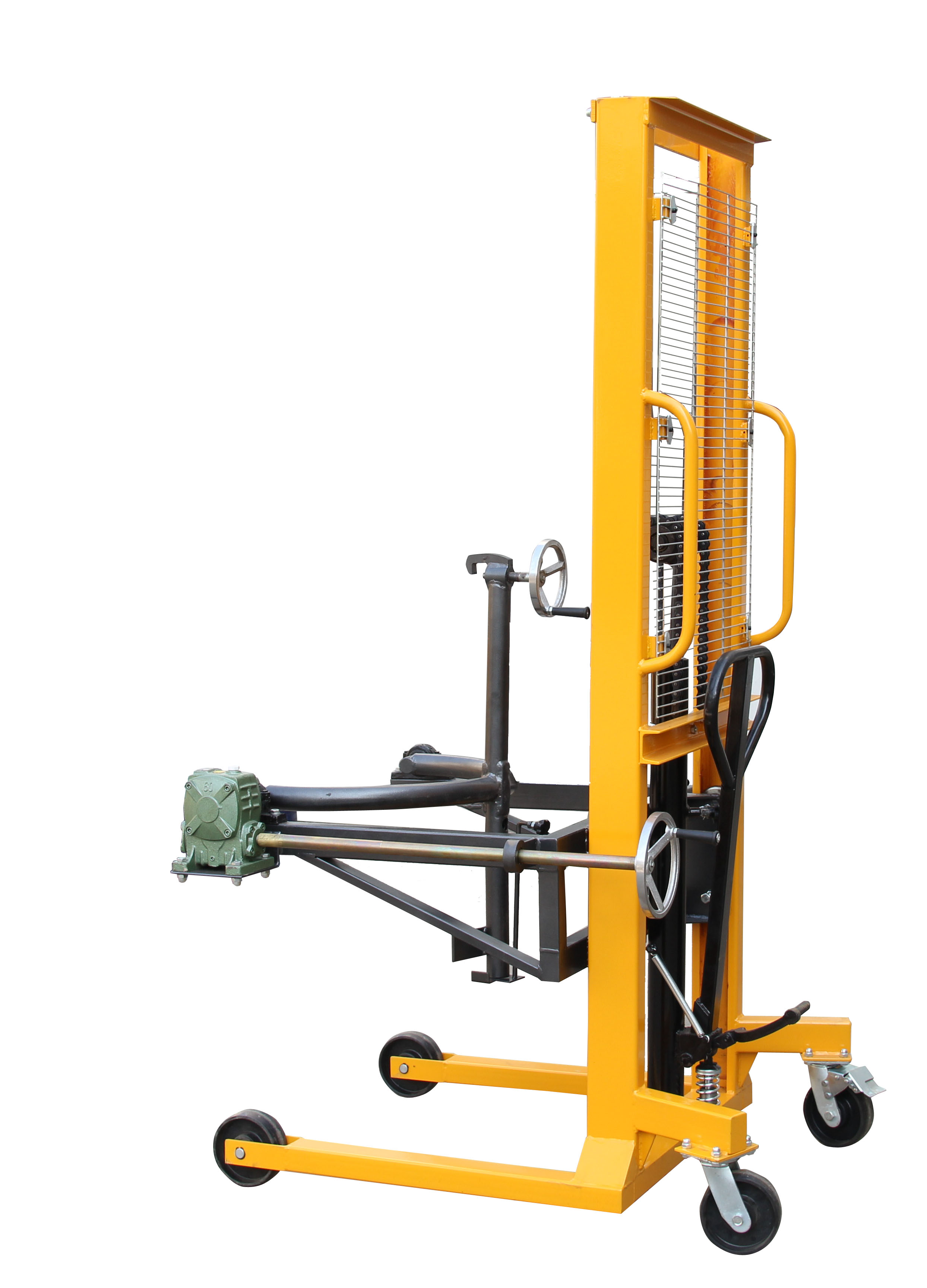

Name:DA400B DA400B-1 DA400B-2 Hydraulic Gripper Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Easy to lift, transport and tilt 55 gallon drum.

Available to carry the drum to rack (lower than 1350mm).

Compact and reliable

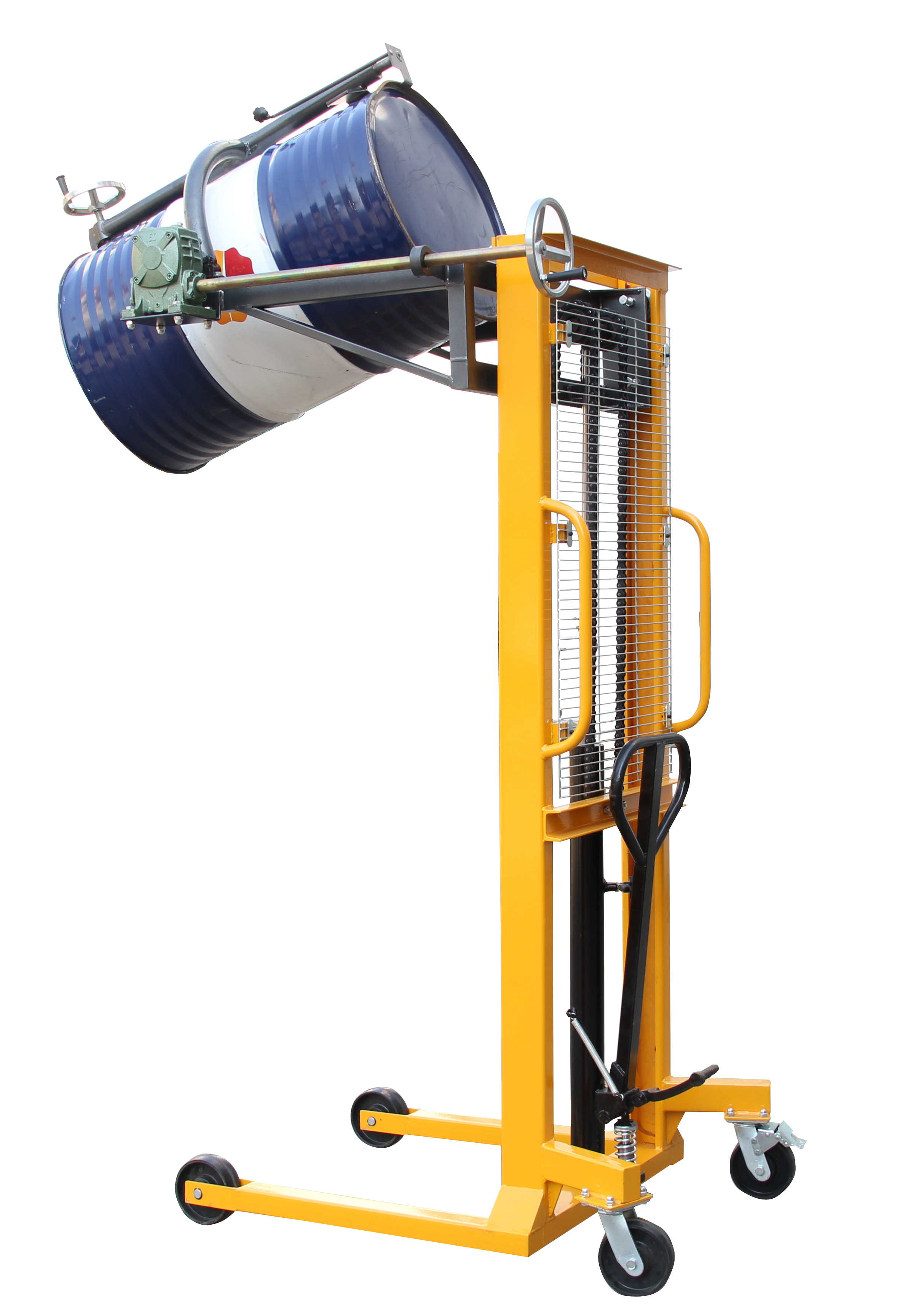

Tilt the drum 180° for oil empty.

It can lock a drum in vertical position to avoid spills or horizontal.

Position for draining through a faucet.

Easily lift with pedal when unload.

With electronic scale built-in DA400A-1 and DA400B-1 (with printer); operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

Specifications:
Model DA400B DA400B-1 DA400B-2
Rated capacity kg 400 400 400
Max. lifting height mm 1600 1600 1600
Drum size 55 gallon ( (Ø572x900) steel
Drum tilting (electric/manual) manual manual manual
With weighing scale yes/no no yes yes
Load rollers size mm Ø80x60 Ø80x60 Ø80x60
Steering wheel size mm Ø150x50 Ø150x50 Ø150x50
Width of leg (Inner/Outer) mm 630/810 630/810 630/810
Leg Length mm 770 770 770
Charger for weighing scale V 6 6
Overall size (LxWxH) mm 1100x1000x2100 1100x1000x2100 1100x1050x2100
Net weight KG 160 165 170
