Products – Oil Drum Tool and Accessories

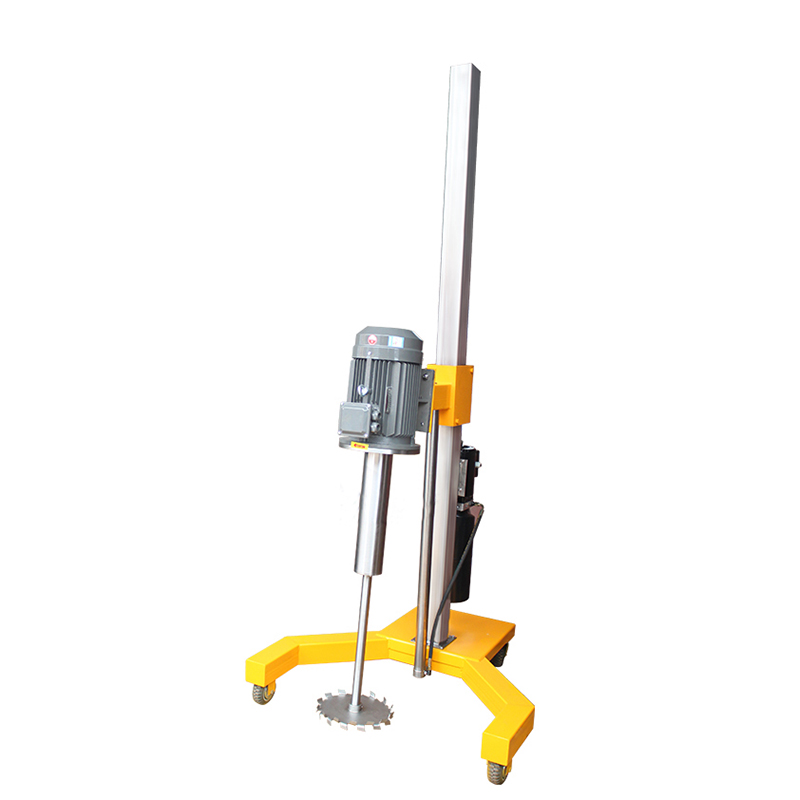

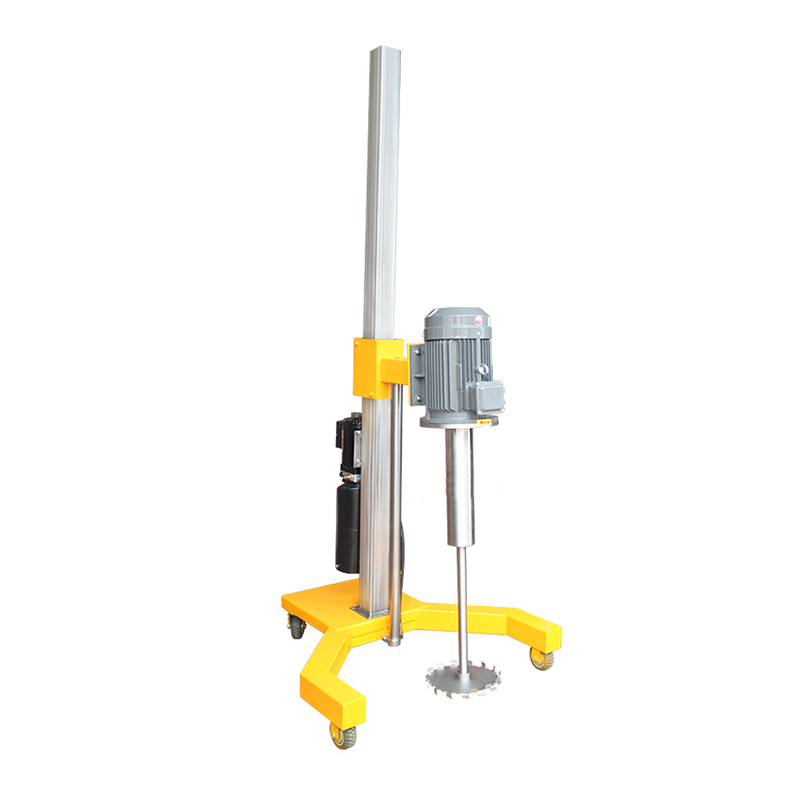

Name:TC Series Pneumatic Drum Mixer
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The motor power can be selected according to the viscosily of the mixed materia, the form of blades can be selected according to the requirements, and the number of blades can be selected.

The normal contact part is made of SuS304 stainless steel.

 SUS316L can be customized and teflon coated blades can be customizedU-TYPE trolley lifting rack for carbon steel painting, can be customized with stainless steel.

The frame is equipped with mobile casters, trolley handrals, air cylinder lift, guide rail assist lift, Automatic Lift Control ValveSuitable for 200L bucket size:0595xH895mm.

Specifications:
Model MotorPower Deceleration Torques Rotating Speed Gas Consumption Stirring Shaft Paddle Size Paddle Type
Applicable
Viscosity
HP Ratio N.M Rpm/min m³/min mm mm mm
TC-200LM3-3 1/4 / 1.37 0~900 0.395 φ16*L880 8″*2layer 3-leaf type Within1000
TC-200LM5-3 1/2 / 4.7 0~750 0.395 φ16*L880 10″*2layer 3-leaf type Within3000
TC-200LM5J3 1/2 1:3 13.5 0~250 0.395 φ20*L800 10″*2layer 3-leaf type Within5000
TC-200LM7-1 1.2 / 28 0~360 0.99 φ20*L880 10″*2layer 3-leaf type Within15000
TC-200L4AMJ3 1.7 1:3 11.5 0~1000 1.8 φ25*L880 10″*2layer
3-leaf type
dispersion plate
Within5000
TC-200L6AMJ3 4 1:3 25 0~1000 3.6 φ25*L880 10″*2layer
3-leaf type
dispersion plate
Within13000
Previous:HC Series Pneumatic Drum MixerNext:NO ProductsReturn
