Products – Oil Drum Tool and Accessories

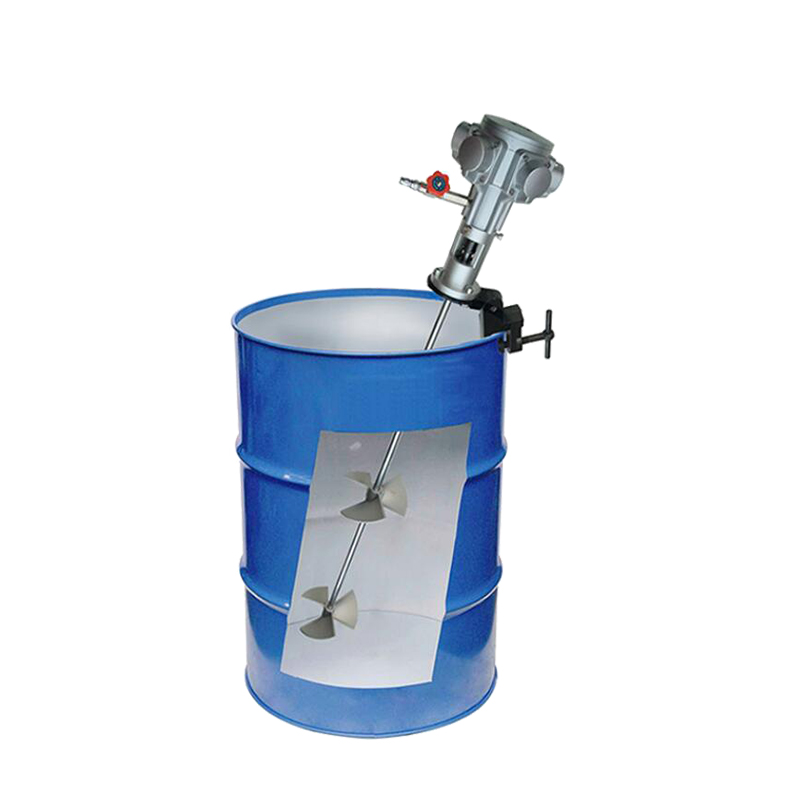

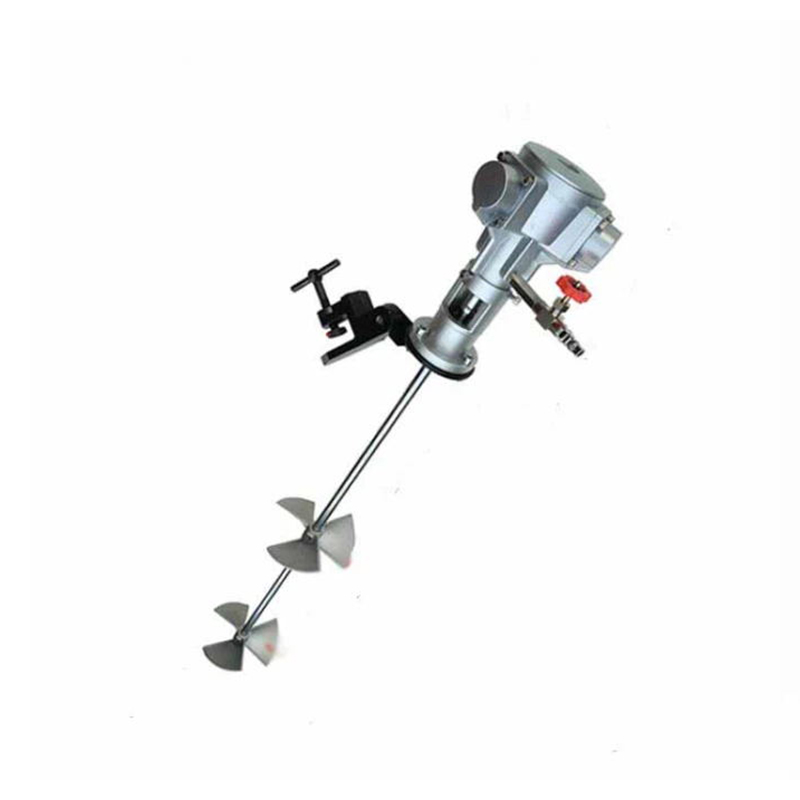

Name:HA Series Pneumatic Drum Mixer
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Compressed air as power source and pneumatic motor as medium power;100% explosion protection;
Equipped with drum stationary clamp, clamp angle adjustable;
Suitable to mix the material in open-type drum or barrel;
Pneumatic motor is with the stepless speed regulating function;
Stirring paddle is stainless steel SUS304 # material, optional SUS316#;

Remark:The motor power can be selected according to the viscosity of the mixed meterial.
Working Pressure:0.3-0.7Mpa.
Contact with liquid part of the material for SUS304,can be customized SUS316 stainless steel or surface ptfe coating.

Specifications:
Model Motor Power Rotating Speed Gas Consumption Paddle Size Paddle Type Stirring Shaft
HP Rpm/min m³/min / mm
HA-200LM3 1/4HP 0~900 3-leaf type φ16*L850 3-leaf type φ16*L850
HA-200LM5 1/2HP 0~750 0.395 8″*2 4-leaf type φ16*L850
Previous:TY400C Drum BlenderNext:HB Series Pneumatic Drum MixerReturn
