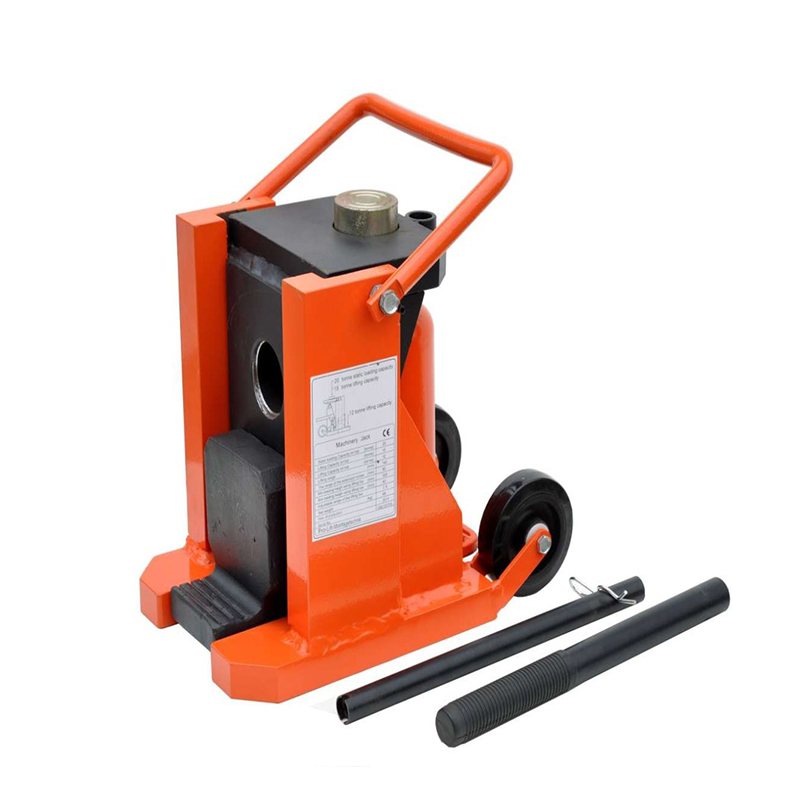

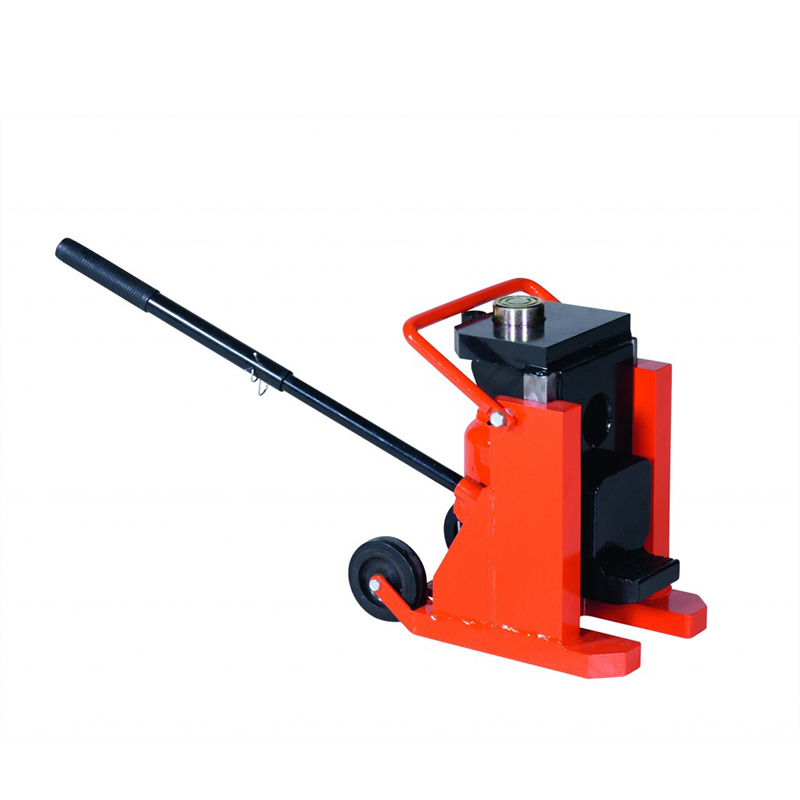

Name:TB Series Machinery Jack
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

With double support rod for wider application, with two working faces TB200 with wheels, facilitate the movement of heavy objections, with overload protection device, this tool meets CE safety standards, in line with the European uniform safety standards, ensure your safe operation.

Mainly used in housing movement, machine tool installation and bridge construction operations, etcsuitable for shipyard, bridge construction or factory construction site, the ideal mobile tools

Small for storage, it is an essential tool in case of emergency

Heavy duty design and compact structure, heavy working tools, ultra high standard industrial quality, designed to safely lift the load in the most convenient way, built-in overload and bypass valves, separate gaps for easy operation.

Specifications:
Model TB100 TB200
Toe/Top rated lifting capacity (kg) 6000/7500 12000/15000
Toe/Top Min. height (mm) 35/320 40/325
Lifting stroke (mm) 160 140
Screw rod adjust height (mm) 0~80 0~60
Support capacity on top (kg) 100000 200000
N.W./G.W. (kg) 25/28 68/72
Packing size (mm) 280×180×360 401×330×370
Lifting Range of Top(mm) 320-560 325-545
