Products – Portable Drum Handling Equipment

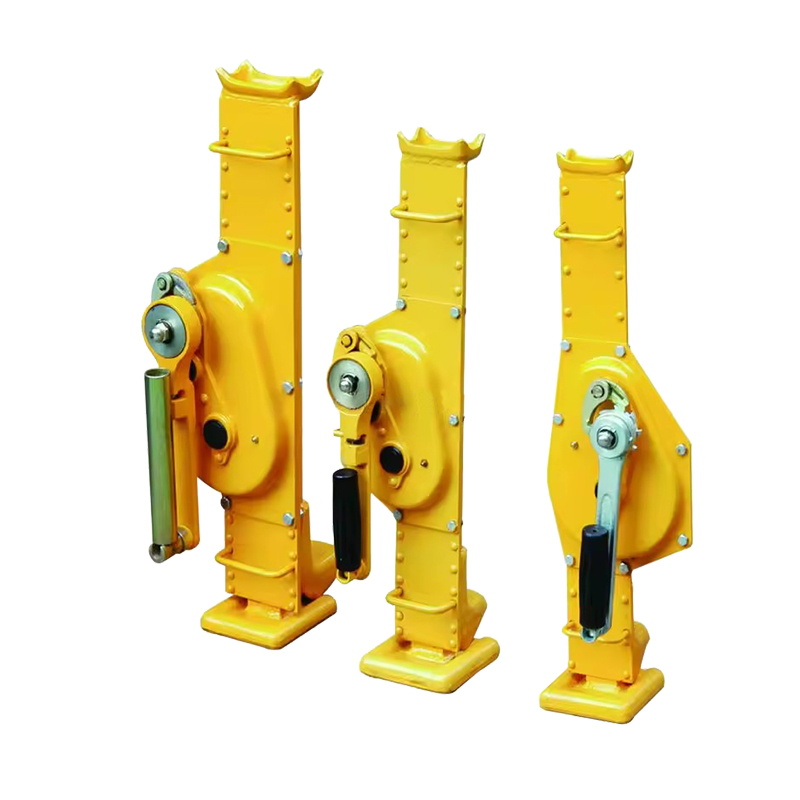

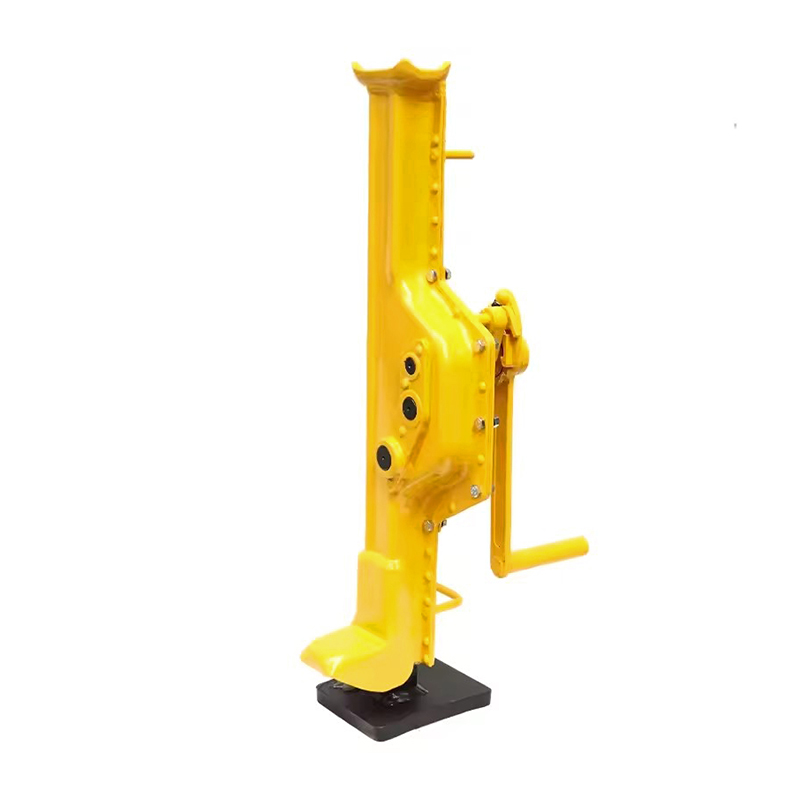

Name:ST series Steel Jack
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Mainly used in ultra high load maintenance operations, suitable for various types of load,

simple operation, with fixed toe or claw head to improve, strong security, safety crank and foldable handle

All construction components standardized.

high stability, stabilizer to ensure maximum stability, with CE certificate, ensure the safety of your operation

Low expenditure of force through optimal ratio.you choose the toe or top to lift the load, shake the handle can fold, provide universal handle and safety handle


Specifications:
Model ST-l.5 ST-3 ST-5 ST-10 ST-20
Capacity kg 1500 3000 5000 10000 20000
Jack Height mm 600 735 735 800 800
Claw Lowest mm 70 70 80 100 95
Lifting Height mm 300 355 355 380 340
Weight kg 16 21 28 46 60
