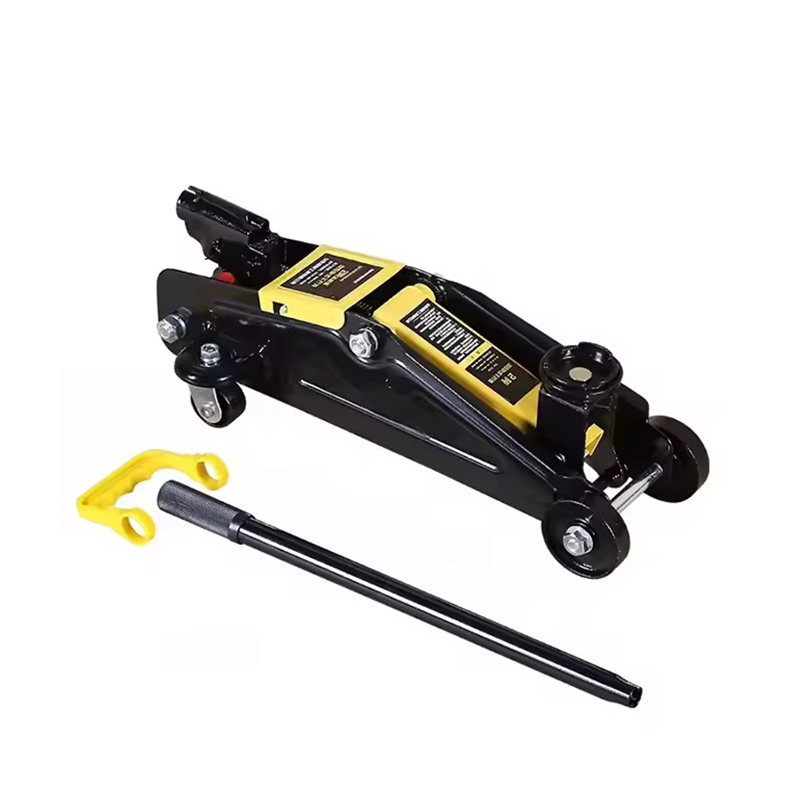

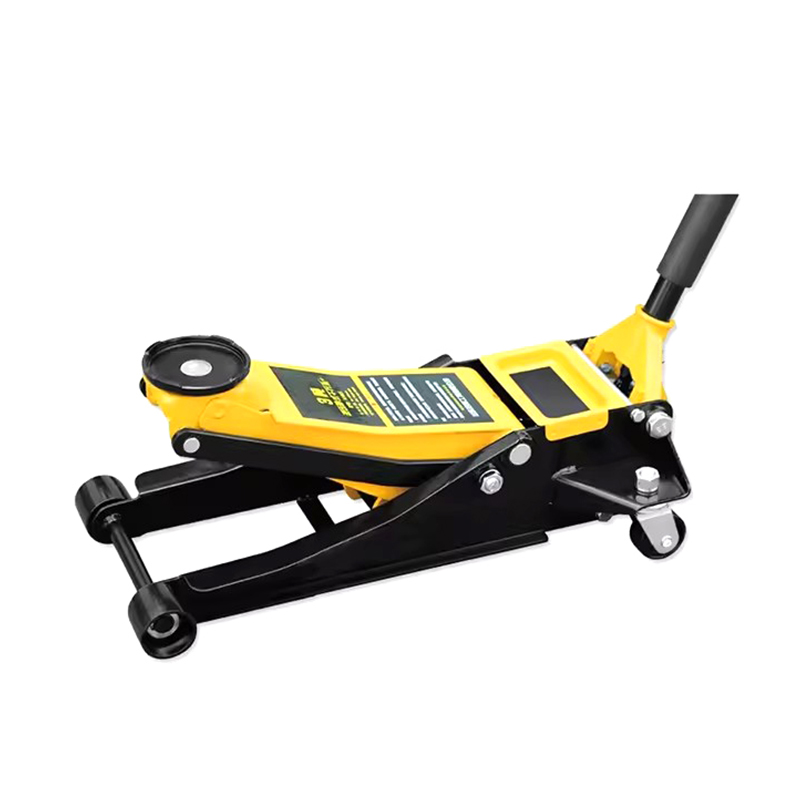

Name:QKA Series Hydraulic Floor Jack
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Suitable for 2-ton hydraulic car jack tires or other vehicle maintenance, just in case.

Heavy-duty steel structure, can improve a wide range of manufacturing and modeling.

Multifunctional design, the saddle is shaped to grasp the bottom, ensuring safe operation when you pump the handle.

It lifts up to 385 cm, giving you clearance, and can easily roll along the front and rear wheels on the garage floor. Torsion valve release causes the car to descend slowly and safely, while passing the pump bypass valve releases excess pressure. The lifting handle can also be separated for transport and storage. For daily use and emergency toolkit. Packaging for easy storage and carrying

Features a one-piece lift arm with dual leveling mechanism and reinforced flanged side frames for added strength under load.

Patented safety bypass system prevents over extension and accidental overloading.

Double swivel saddle and heavy steel casters allow safe and easy positioning.

Specifications:
Model Lifting Capacity Min. height Lifting Height Max. Height Net Weight Gross Weight Quantiy/Case Measurement Quantiy/1x20"
ton mm mm mm kg kg pcs cm pcs
QKA-2-B 2 135 220 355 10.5 12 1 53x23x15 1500
QKA-2-C 2 135 220 355 10.5 11 1 50.5x21x15 1900
QKAI-1.5-B 2 135 220 355 9.5 11 1 53x23x15 1500
QKAI-1.5-C 2 135 220 355 9.5 10 1 50.5x21x15 1900
QKAII-2-B 2 135 250 385 12 14 1 58.5x24x14.5 1200
QKAII-2-C 2 135 250 385 12 13 1 56x22.5x15 1350
QKB-2-B 2 130 220 350 8.2 9.3 1 53x25x15 1400
