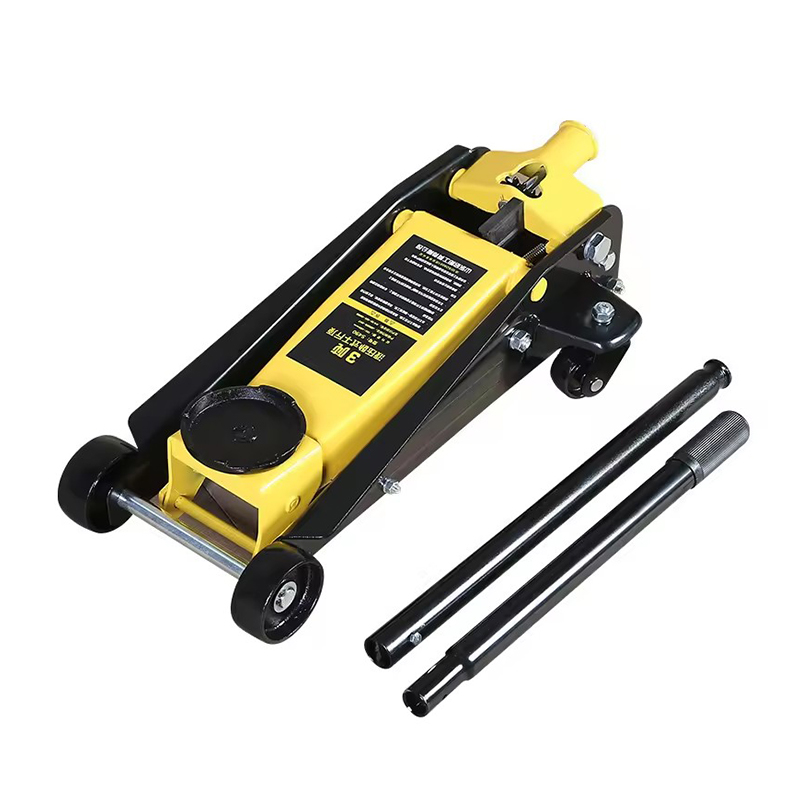

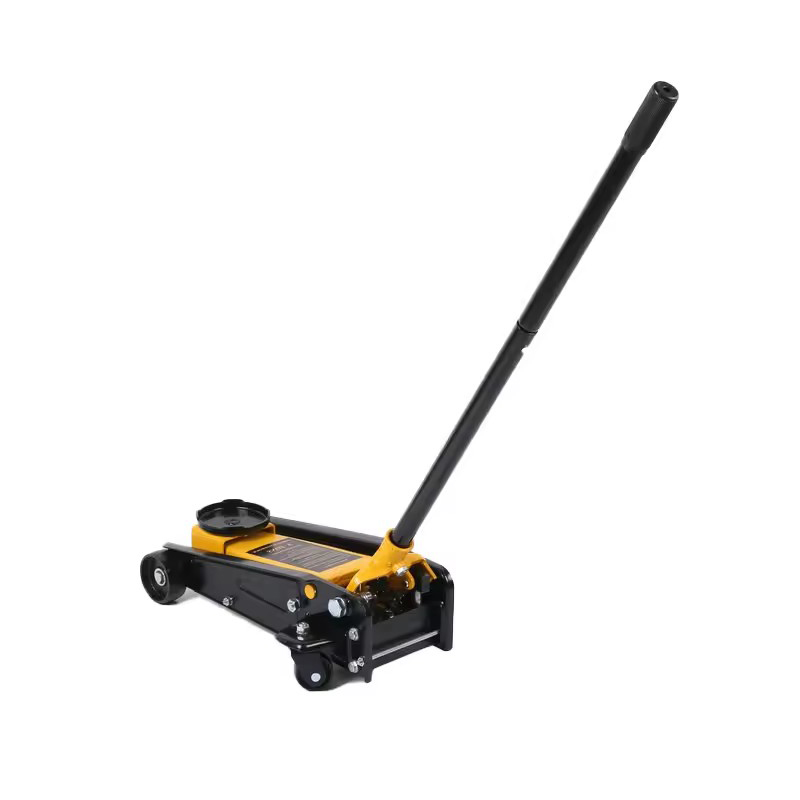

Name:QK Series Hydrualic Floor Jack
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The light vehicle jack design allows a lifting range from 295mm to 335mm. The load reduction is slowly controlled by a convenient release valve knob.

Multi-function saddle design allows for comprehensive adjustment in all directions, can rotate 360 to operate from any direction, convenient for your yellow steel frame, rust prevention, beautiful appearance, long service life, rust prevention.

Four rotating ball bearing casters that mount portable car jacks with a maximum weight lift of 2 tons, facilitate removal and installation of most parts from cars and trucks.



Specifications:
Model Lifting Capacity Min. Height Lifting Height Max. Height Net Weight Gross Weight Quantiy/Case Package Measurement Quantiy/1x20"
ton mm mm kg kg kg pcs cm pcs
QKIV-1.5-B 1.5 140 155 295 6 7 1 Blow case 43x21x14.5 2450
QKIV-1.5-C 1.5 140 155 295 6 6.5 1 Color Box 41x20x13.5 2850
QKIII-2-B 1.5 125 175 300 6.5 7.5 1 Blow case 45x22.5x14.5 2200
QKIII-2-C 1.5 125 175 300 6.5 7 1 Color Box 43x20x13.5 2500
QKII-2-B 2 135 200 335 7.5 8.5 1 Blow case 48x23.3x15.5 1900
QKII-2-C 2 135 200 335 7.5 8 1 Color Box 45.5x20x14.5 2100
QKI-2-B 2 135 200 335 8.5 9.5 1 Blow case 48x23.5x15.5 1900
QKI-2-C 2 135 200 335 8.5 9 1 Color Box 45.5x21x14.5 2100
