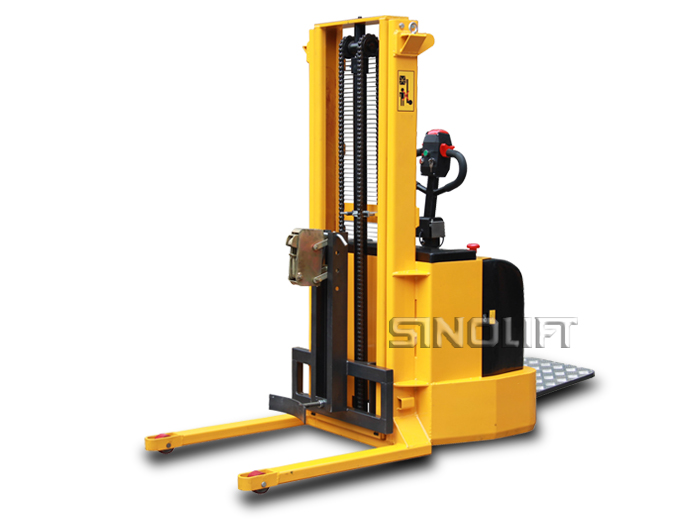

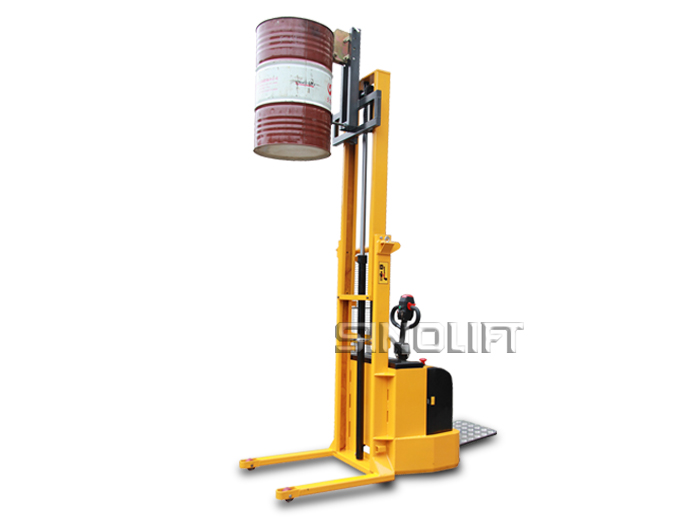

Name:DT600 Full-electric Drum Transporter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The car adopts the imported electric vehicle special walking control system, the walking stability, has the light, flexible characteristics, can be operated alone, suitable for oil barrel handling, lifting, loading and unloading operations;

Multi-in-one multi-functional control handle, walking infinite speed regulation, high power steering switch, integrated hydraulic pump station, high power walking drive wheel;

Equipped with a manned pedal can reduce the operation of fatigue;

Supporting intelligent charger, the whole charging process does not need special monitoring, make it more safe and convenient;

Power mode: electric power mode.

Specifications:
Model DT600B
Drive Type Full Electric
Operating Type Standing operation
Rated Load Capacity kg 600
Drum Size 55 gallon (Ф572×900) steel
Lifting Height mm 2400
Turning Radius mm 1710
Max. Gradeability (Laden/Unladen) % 3/5
Driving Wheel Size mm Ø250*80
Tire / Polyurethane
Controlling Type / Electromagnetic braking
Drive Motor Power kw 1.2
Lifting Motor Power kw 2.2
Noise level db(A) 70
Battery voltage/capacity V/Ah 24/210
Charger V/A 24/30
Net weight kg 635
