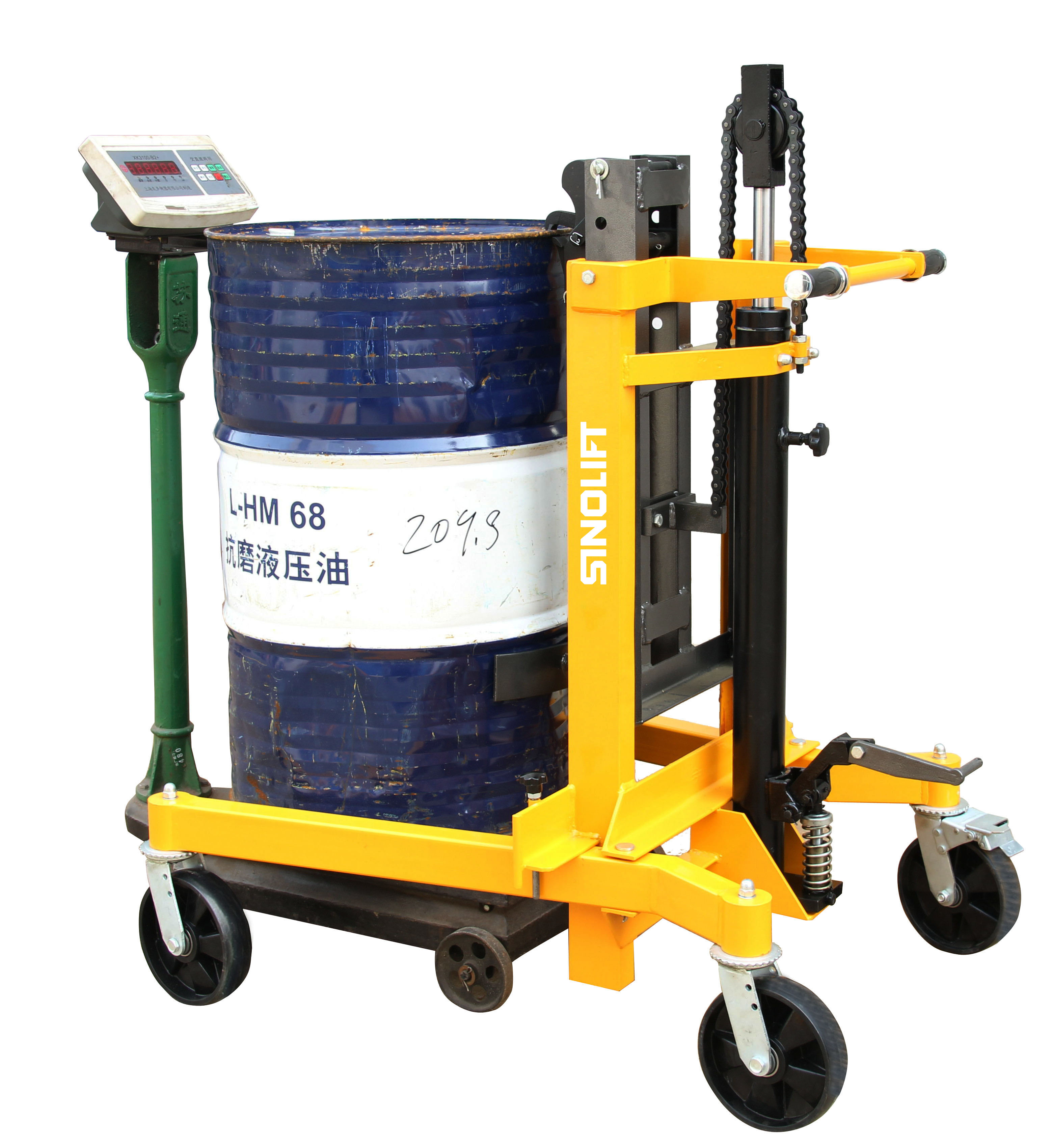

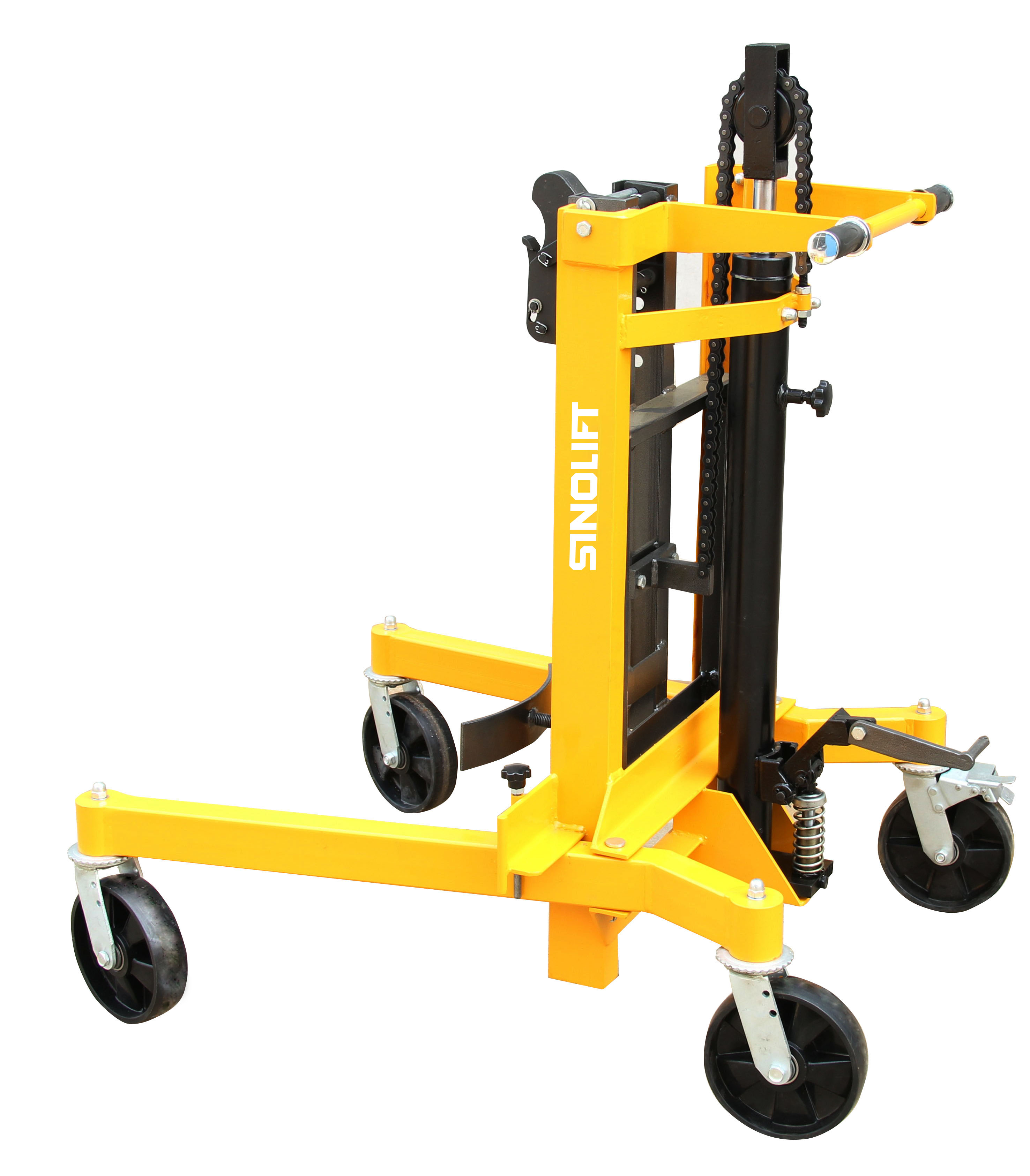

Name:DT400C Hydraulic Drum Handler
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Ergonomic lifts,transport,and places poly, steel, or fiber drums on or off pallets.

A spring-load clamp securely holds any rimmed drum.

It have swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability.

Legs adjust for different pallet, Handles 30-, 55-, 85-gallon drums and plastic drums

Automatic clamping tightly drum during lifting, safety & reliable.

Optional Single Eagle-grip and Double Eagle-grip.

Note: Specification and materials are subject to change without notice.


Specifications:
Model DT400C
Capacity Kg 400
Drum size 30 gallon (Ф450×700), 55gallon(Ф572×900) or 80 gallon(Ф800×900) steel, 210L Plastic
plastic or steel drum
Lifting Height mm 300
Support Leg adjustable Width mm 660-1380
Front wheel size(PU) mm Ф200×50
Rear wheel size(PU) mm Ф200×50
Overall Dimension mm 1120x900x1220
N.W Kg 109
