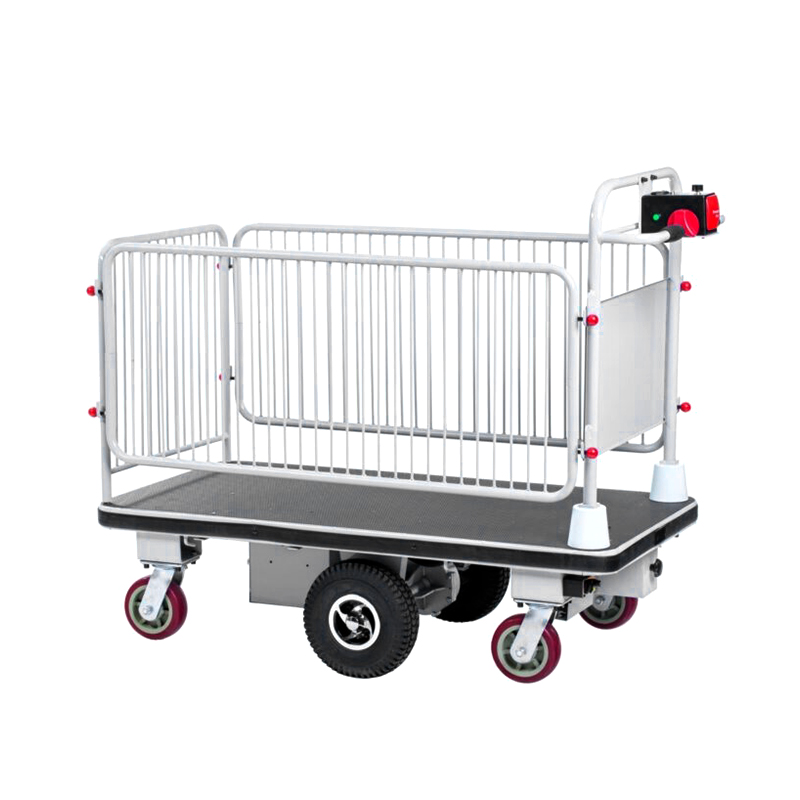

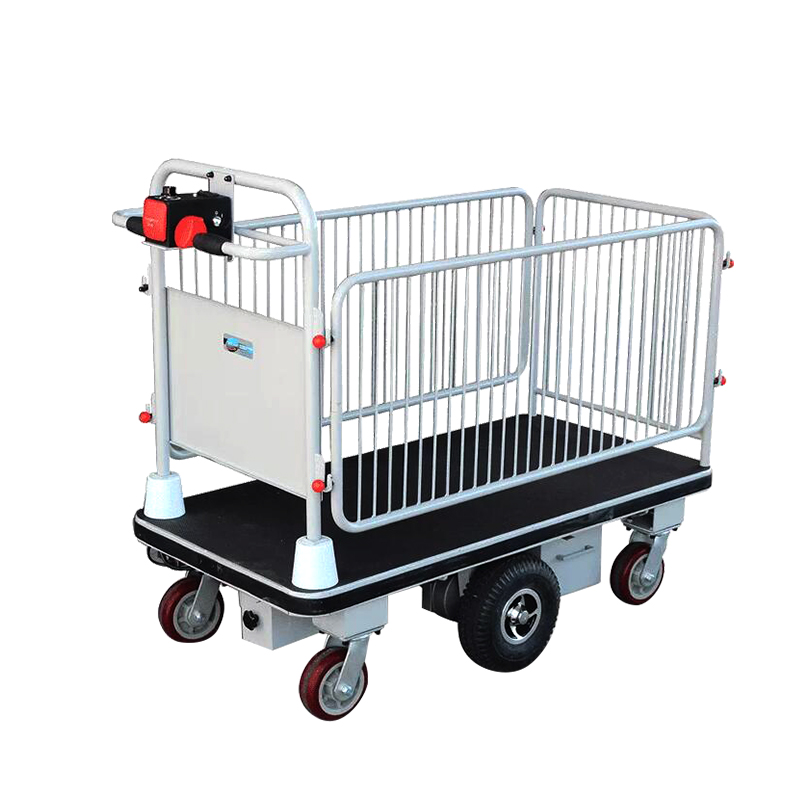

Name:HG-105 Electric Platform Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Product characteristics

Product function, overall size of 1455*630*1080 (mm), platform size of 1280630 (mm), maximum load weight of 400kg, continuous work for 7 hours on full charge, charging time of 8-10 hours, 400W drive motor, adjustable speed, 3-7 km/h

High configuration

The original imported controller, with infinite speed control and reverse brake control, safe and efficient

Rubber inflatable drive wheels help to reduce noise and damage to the floor

Around the fence design, both sides can be removed separately, to ensure the safety of transportation

Support customer customization, skin high quality electrostatic powder spraying, gray white, if other colors please call, accept special specifications of customization

Widely used in logistics center, warehouse picking, production workshop and other workplaces

Specifications:
Model HG-105
Product size mm 1455*630*1080
Plate size mm 1280*630
Net weight kg 113
Max capacity kg 400
Motor w 400
Battery v/ah 2*12*33
Controller A 70
Speed km/h 3-7
Battery Time h 6-7
Previous:FFS300L-01 FFS220L-01 Fork SpreaderNext:HG-105B Electric Platform TrolleyReturn
