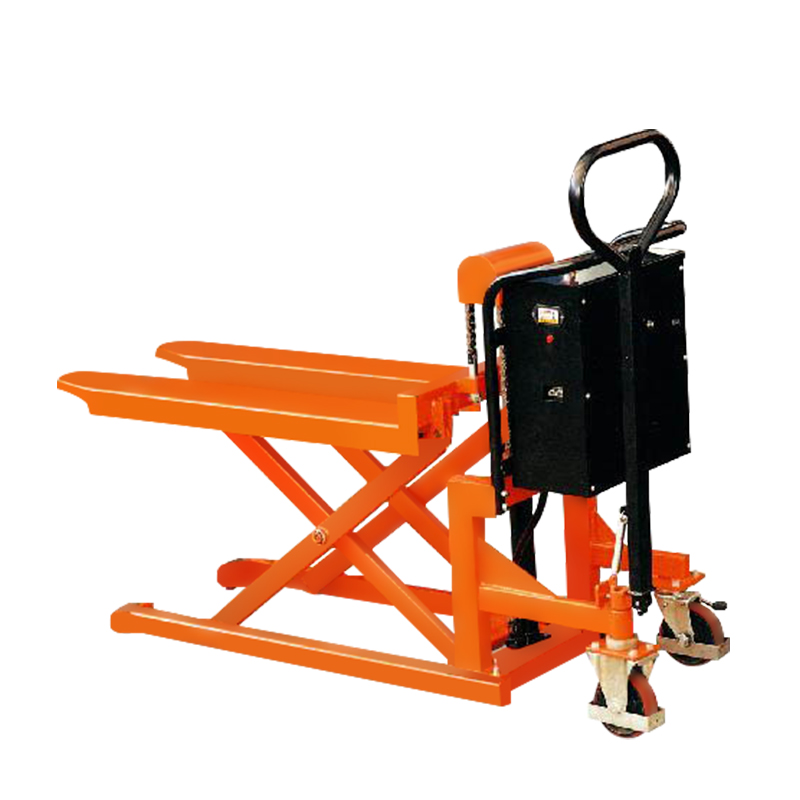

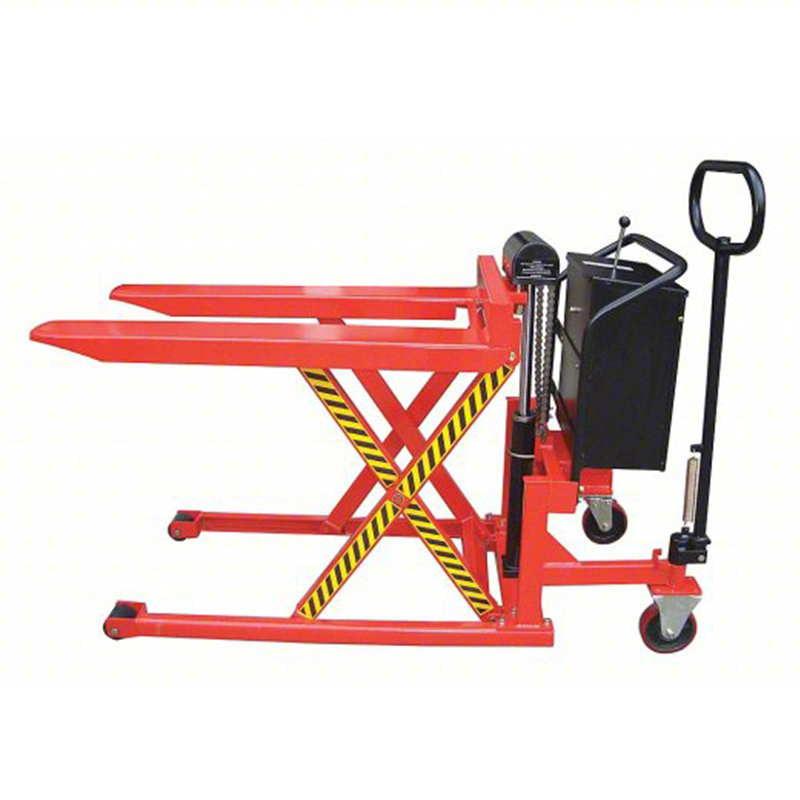

Name:PE & PEL Series Electric Skid Lifter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
 M series Manual Winch Work Postioner
 E Series Electric Work Postioner Lift
 Other Spercial Work Postioner Lift Trolley
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Easier handling to minimize back strain.

Better feature - it can move when raised.

Combination of pallet truck and lift table.

Ideal for your loading and unloading operations.

Continuous-welded heavy steel frame and forks handle weighty loads with ease.

Easy-to-use control lever plus two parking brakes on steering wheels increase safety.

Reliable power unit for easier and faster lifting.

Addtional steering handle on 1000kg models for easier and more comfortable turning.



Specifications:
Model PE50S PE50L PE100S PE100L PEL50S PEL50L PEL100S PEL100L
Load kg 500 500 1000 1000 500 500 1000 1000
Min. Fork Height mm 85 85 85 85 88 88 88 88
Max. Fork Height mm 830 830 830 830 833 833 833 833
Fork/Platform Width W(mm) mm 526 690 526 690 538 703 538 703
Fork/Platform Length L(mm) mm 1115 1115 1115 1115 1115 1115 1115 1115
Overall Length mm 1620 1620 1740 1740 1620 1620 1740 1740
Overall Width mm 580 740 550 720 580 752 556 726
Overall Height mm 1050 1050 1307 1307 1050 1050 1307 1307
Front Roller mm φ75×68 φ75×68 φ75×68 φ75×68 φ75×68 φ75×68 φ75×68 φ75×68
Steering Whee mm φ150×40 φ150×40 φ150×40 φ150×40 φ150×40 φ150×40 φ150×40 φ150×40
Battery Ah/V Dec-66 Dec-66 Dec-66 Dec-66 Dec-66 Dec-66 Dec-66 Dec-66
Net Weight kg 172 176 174 180 180 184 182 188
