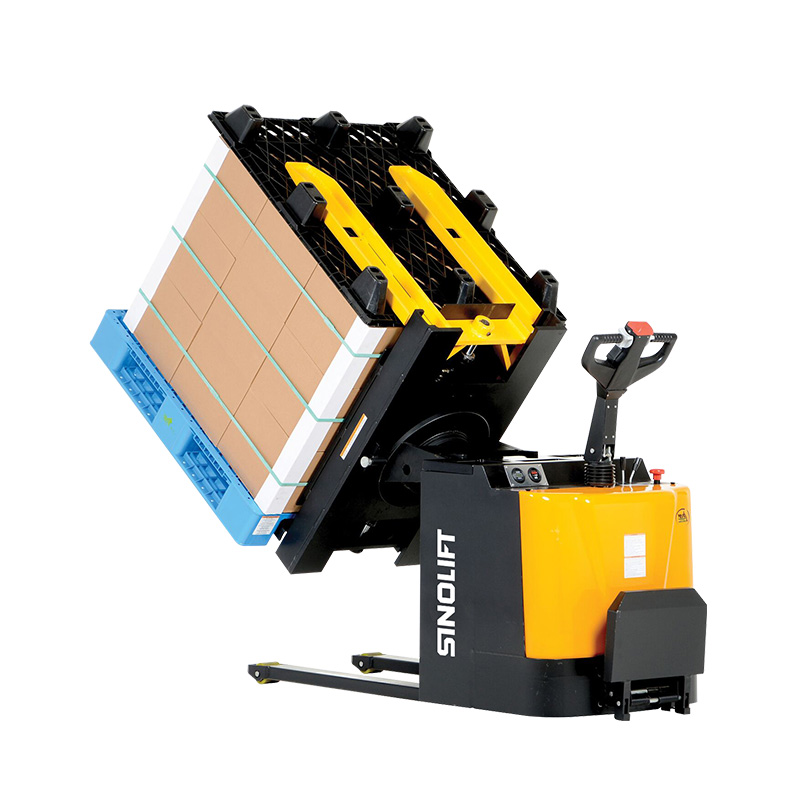

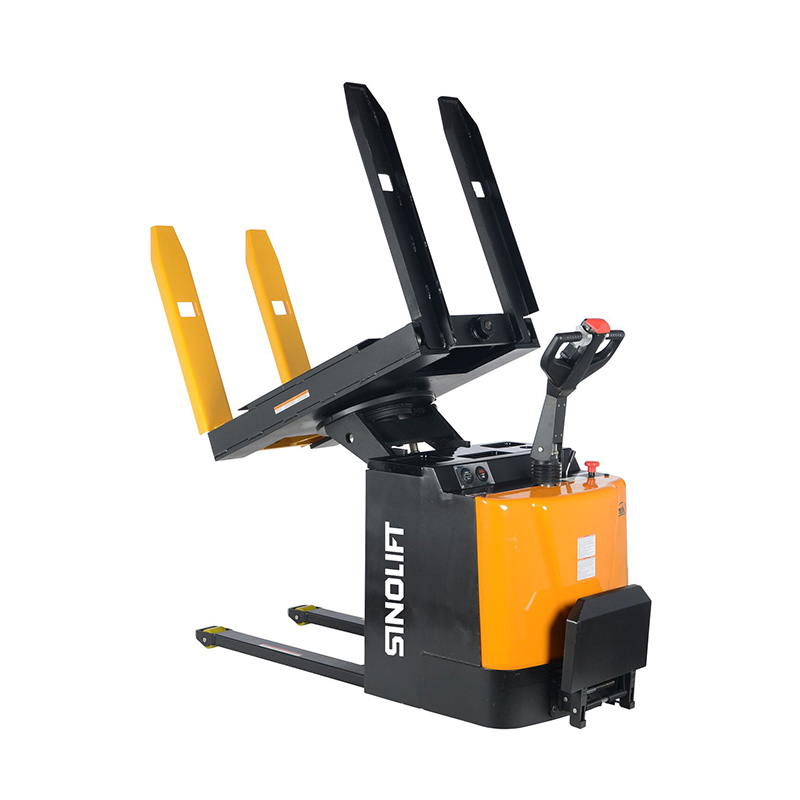

Name:WPR series electric pile turner flip over pallet stacker solution
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The rotary pallet stacker is a versatile material handling machine

Innovative design and strong construction

Movering efficiently and safely in a narrow space

The rotation function eliminates the need for manual processing, reduces the risk of harm, and improves productivity

Roevolving tray stacking provides reliable and effective solutions for easy handling and load positioning, whether in warehouses, distribution centers, and manufacturing facilities.

Specifications:

Model WPR100/122 WPR125/138 WPR150/155 WPR150/178
Capacity kg 1000 1250 1500 1500
Clamp range size mm 500-1500 500-1500 500-1500 500-1500
Single Fork Width mm 150 150 160 160
Fork Length mm 880 880 880 880
Max. Platform height mm 1460 1460 1575 1575
Fork width mm 550 550 550 550
Lowest Height mm 90 90 90 90
Max.Fork Open mm 1220 1380 1550 1780
Min.Fork Close mm 800 915 500 500
Rise Time s 28 28 28 28
Down Time s 10 10 10 10
Battery 160A 12x2V 180A 12x2V 210A 12x2V 280A 12x2V
Lift Motor DC24V 2kw DC24V 2kw DC24V 2.0kw DC24V 2.0kw
Driving Motor DC24V 1.0kw DC24V 1.0kw DC24V 1.2kw DC24V 1.2kw
Weight kg 750 750 840 840
Overall Size mm 850x1960x1980 850x1960x1980 850x1960x1980 850x1960x1980
