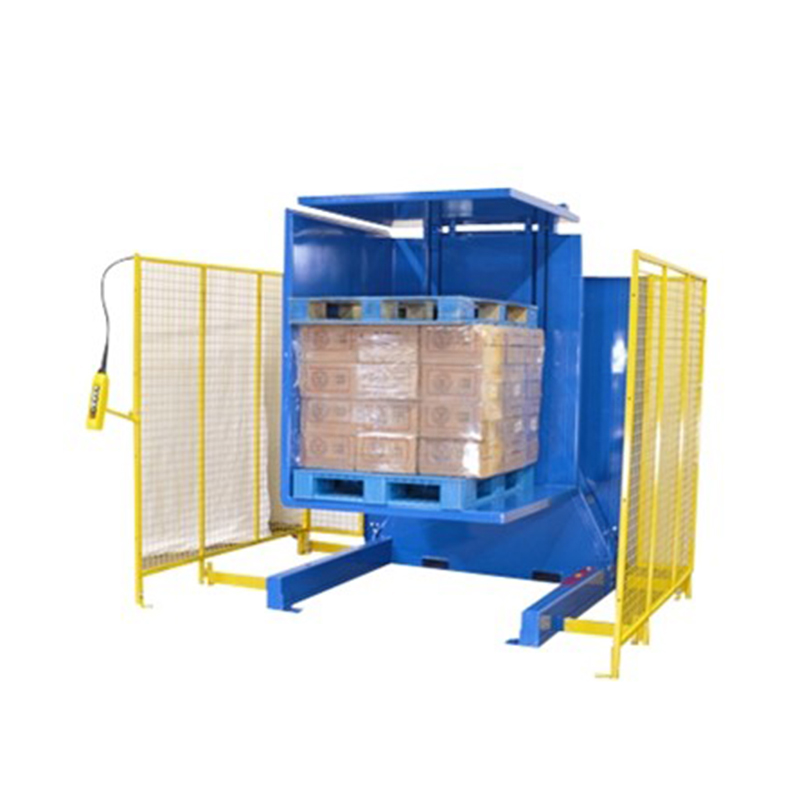

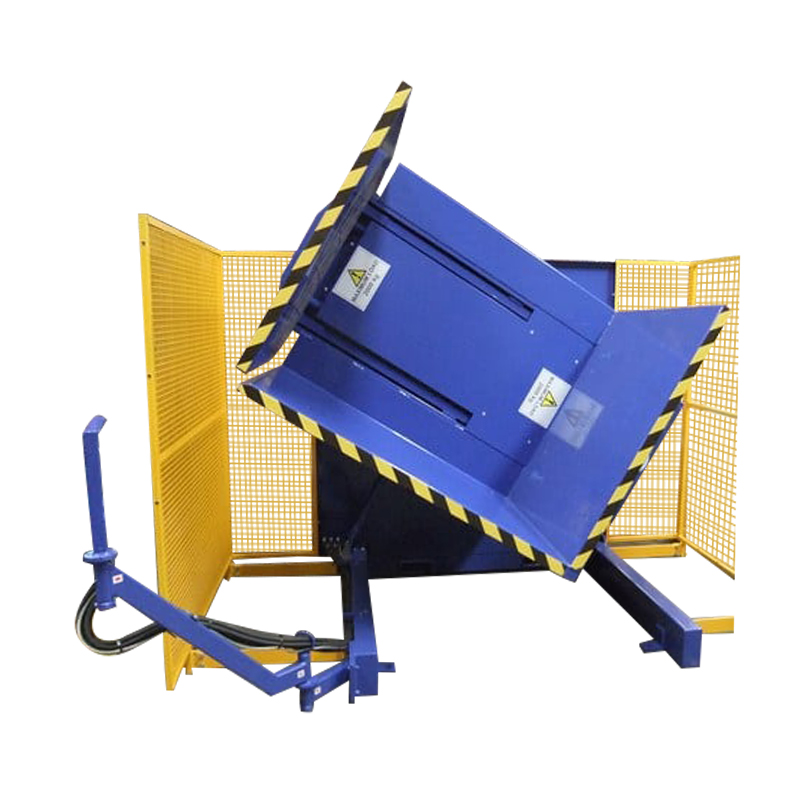

Name:YL10 Full Electric  warehouse Pallet Inverter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Highly versatile stand-alone inverter with dual fixtures that can be loaded by forklift or pallet trucks

Suitable for rotational stacking or movement of large volume objects

Antirust treatment is coated with two layers of zinc primer and 2 packets of epoxy acrylic finish.

Select the joint venture hydraulic pump station to rise stable and powerful, clamping rotating lifting in one

Door frame uses high quality I-steel, high strength, durable

Widely used in chemical, food, medical and other industries to the whole tray 180 flip.

Specifications:
Model YL10
Electrical appliance control cabinet size
mm 305(L)x402(W)x880(H)
Machine size mm 2200(L)x1920(W)x2155(H)
Tighten trip mm 1070-1890
Hoisting crane depth mm 300
Safety fence size mm 3040(L)x3000(W)x1870(H)
Any power-generating or power-driven machine
220V/12.2KW
Rotation angle ° 180
Load kg 1000
Net weight kg 1900
