Products – Hoisting And Lifting Equipment

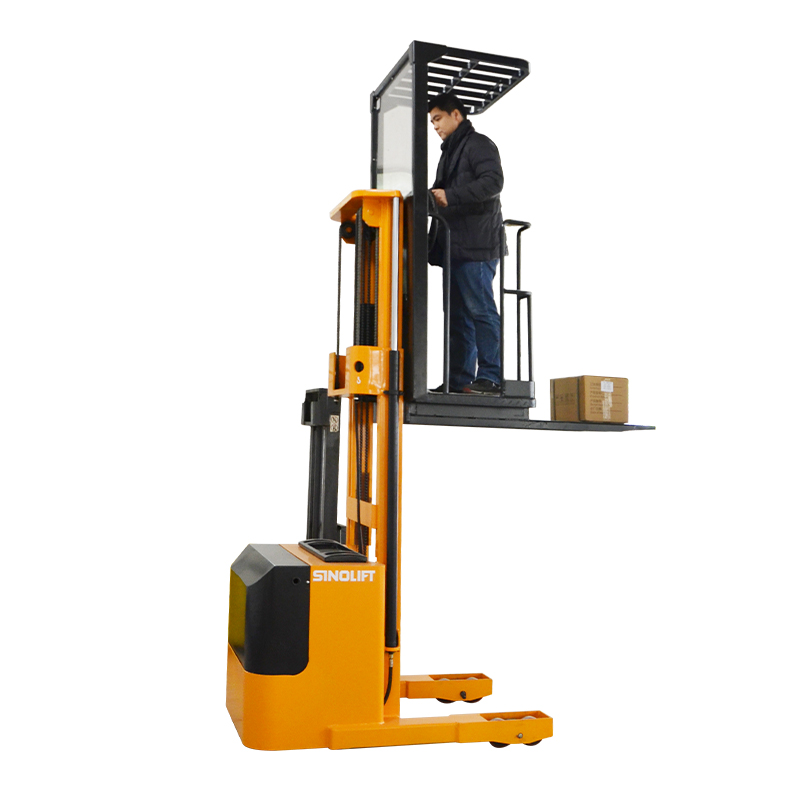

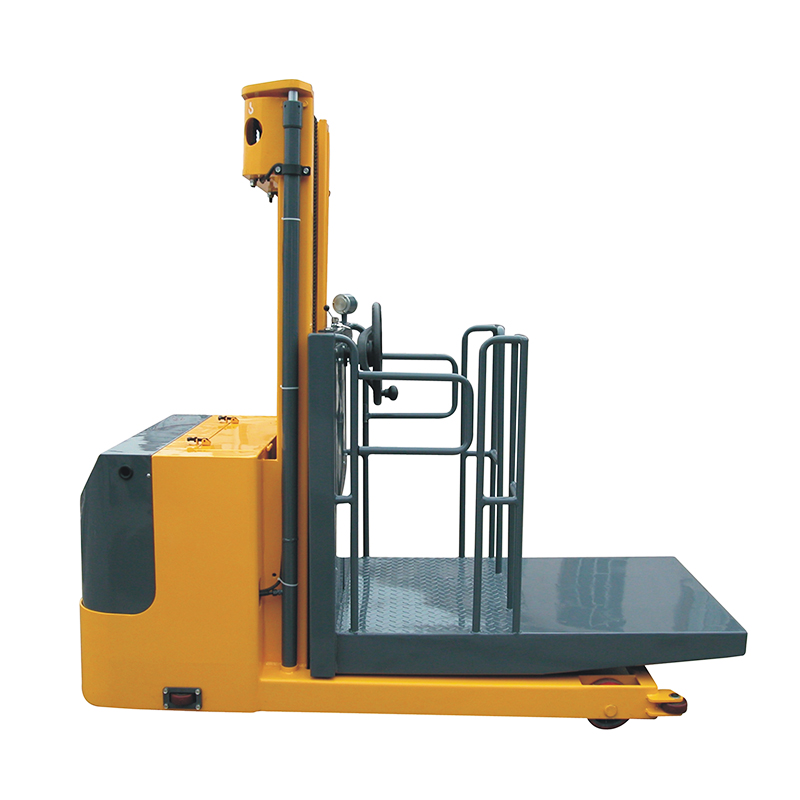

Name:CDG500 Series Self-propelled Electric Order Picker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Simplicity of operator

You can drive this model, even when selecting the operator to ride this model. You can operate, reduce the lift and lower the operating floor to improve work productivity

Small volume

This product is mostly used in a narrow space, with a short length and a small turning radius, to improve the efficiency of working in a narrow space

Strong endurance

Using high-quality drive system and pump station, lifting and operation is smooth and powerful. Configured with large capacity traction battery, power durable, durable, reliable.

Security configuration

Safety belt, safety belt is closely connected to the roof, to ensure the safety of operators suitable for the state Treasury, workshop, supermarkets, stadiums and other aerial operation or maintenance operations

Specifications:
Model Unit CDG500
Load capacity Kg 500
Wheels size mm Φ140*80
Wheels material PU
Min. turning radius mm 1920
Max. lifting height mm 2700
Loading platformforkssize mm 800*620
Manned platform sizeL*W mm 840*600
width of Single fork mm 150
Lifting speed m/min 5
Lowering speed m/min 4
Pumping power KW/V 2.2/24
Batteries (traction battery) Ah/V 210/24
Driving wheel KW/V 1.2/24
Walking speed Km/h 6
Dimensions mm 1350*800*1800
