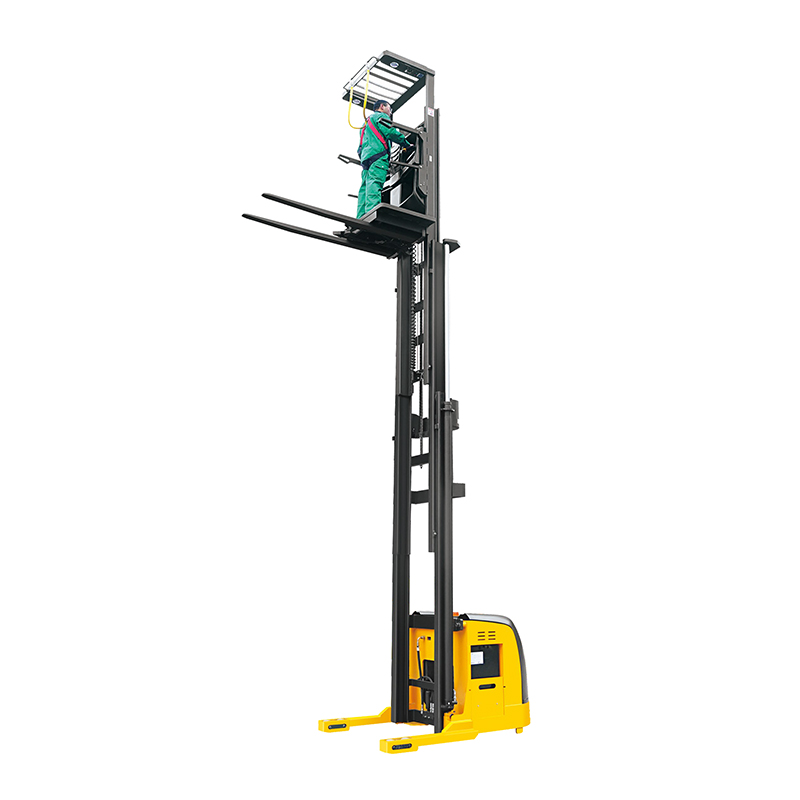

Name:OPS15 High-level Full Electric Order Picker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Low gravity centre provides good stability

Advanced electric steering technology(EPS) is humanized designed.with automatic reset  height display and automatic deceleration athigh lifting level.

Finger tip control via joystick, Stepless speed control for driving.

lifting and lowering speed is adjustable.

Buffer oil cylinder: the oil cylinder will automatic decelerate when offground 500mm, to prevent impact and lower noises.

The mast and the frame are dividable and exchangeable

Specifications:
Model OPS15
Drive type battery
Load capacity/rated load kg 1500
Load centre distance mm 600
Load distance, centre of drive axle to fork mm 206
Tyre size, front mm 310*125
Tyre size, rear mm 128*73
Aditional wheel mm 150*47
Wheels, number front rear (x=driven wheels) mm 1x+2/4
Height, mast lowered mm 2410/3080/3750
Max. lift height mm 5000/7000/9000
Height , mast extended mm 7230/9230/11230
Height of platform mm 230
Lowed height mm 80
Overall length mm 3200
Coupling height mm 1975
Overall width mm 1100/1352
Forks length mm 45/100/1220
Width overall forks mm 530/715
Height of overhead guard mm 2290
Aisle width for pallets 1000x1200 crossways mm 1400
Aisle width for pallets 800x1200 lengthways mm 1400
Turning radius mm 1800
Travel speed, laden/unladen Km/h 7.7/8
Lift speed, laden/unladen m/s 0--0.15/0--0.28
Lowering speed, laden/unladen m/s 0--0.28/0--0.3
Battery voltage, nominal capacity K5 V/Ah 24/770(1100)
Battery weight kg 610(850)
Battery dimensions L/w/h mm 982x397x561
Service weight (with battery) kg 3870
