Products – Hoisting And Lifting Equipment

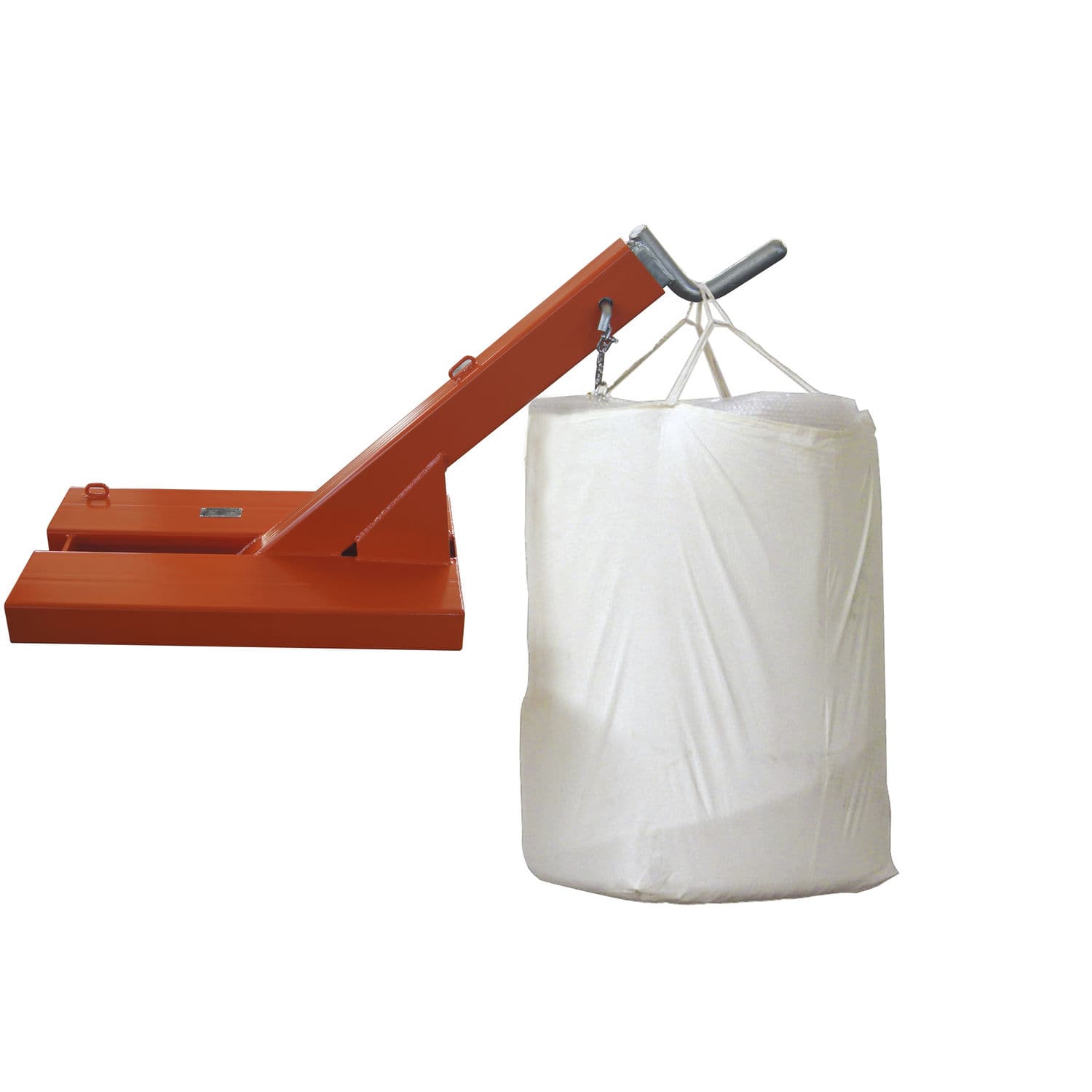

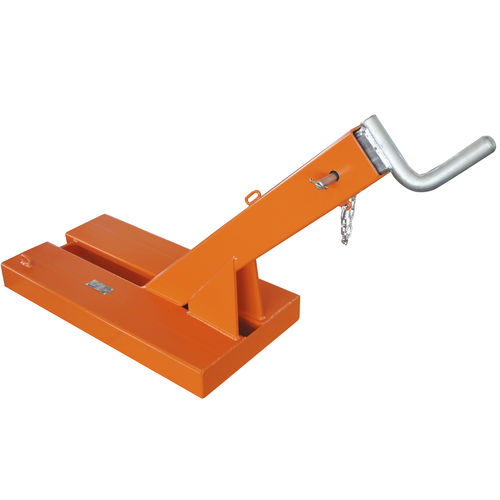

Name:BBF1500A Big Bag Lifter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Big Bag Lifter BBF1500A is Suitable for forklift trucks and big bags

economical way to handle single big bag.

Safe working load:1500kg

The maximum size of fork:228*60mm

Installation method: Slip-on

Unit weight: 147.5kg

Surface treatment: Painted finish.

Specifications:
Model BBF1500A
 load kg 1500
ize of fork mm 228*60
Unit weight kg 147.5
Surface treatment Painted finish.
Inner Position 1 2 3 4 5
L(mm) 1445 1575 1710 1845 1980
H(mm) 910 1045 1180 1315 1445
Capacity(kg) 1500 1350 1250 1000 750
Previous:BBF1000 Big Bag LifterNext:BBF2000 Big Bag LifterReturn
