Products – Hoisting And Lifting Equipment

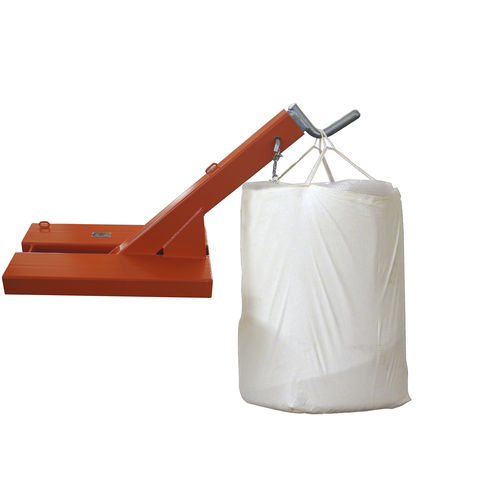

Name:BBF1000 Big Bag Lifter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Big Bag Lifter BBF1000 is Suitable for forklift trucks and big bags

economical way to handle single bag.

Safe working load:1000kg

Installation method: Slip-on

Unit weight: 90.0kg

Surface treatment: Painted finish.

Specifications:
Inner Position L(mm) H(mm) Capacity(kg)
1 1320 700 1000
2 1450 840 910
3 1585 975 830
4 1720 1110 760
5 1850 1245 710
Previous:BBH1000 Big Bag LifterNext:BBF1500A Big Bag LifterReturn
