Name:WCR-GR-35 WCR-GR-40  WCR-GR-50 WCR-GR-60 Vacuum Glass Lifter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

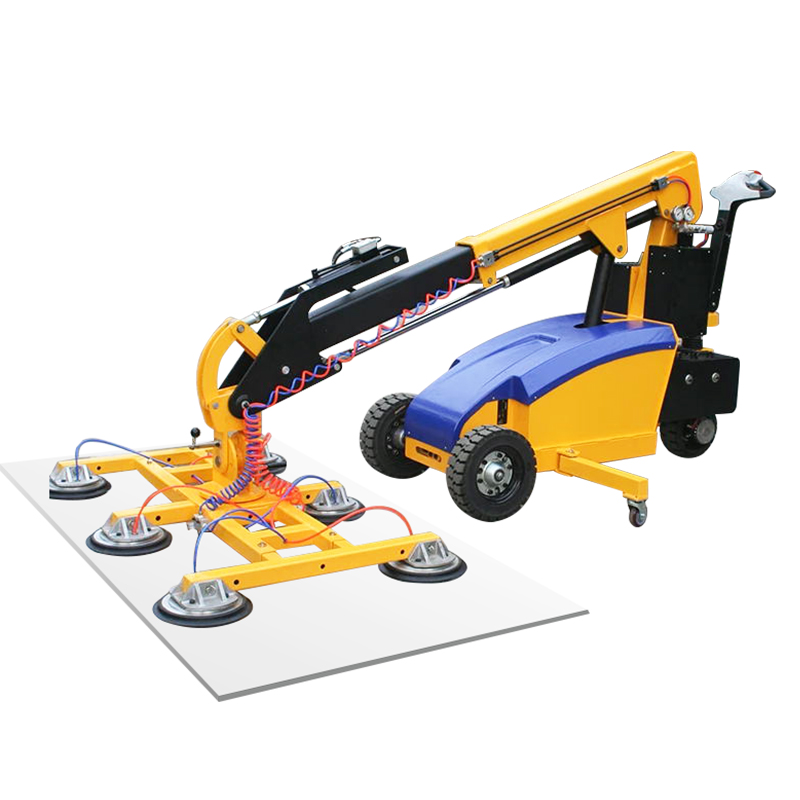

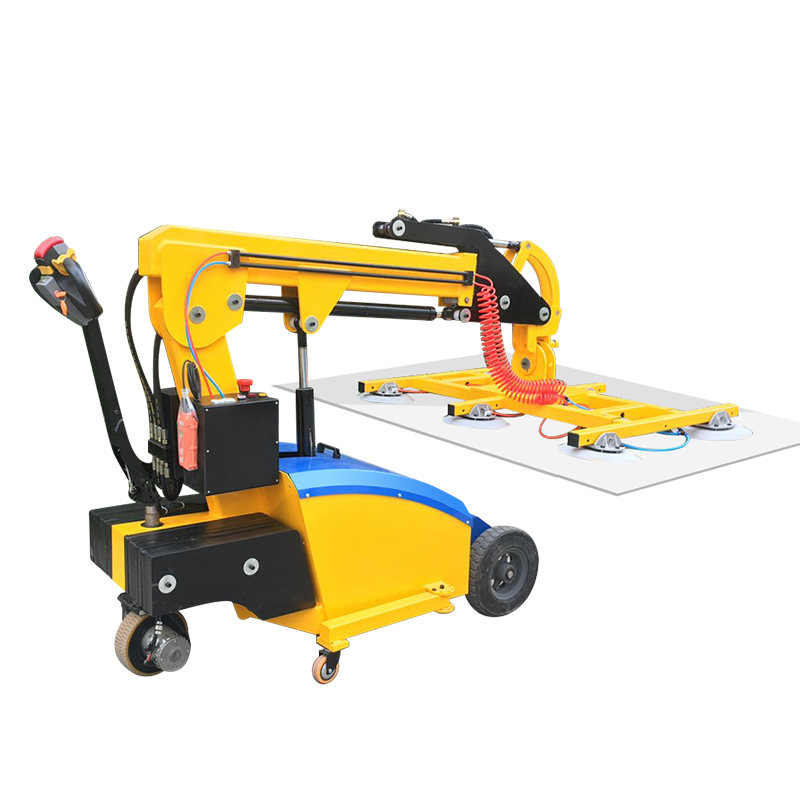

WCR-GR Glass Lifter and Glass Robot

Electric glass robot vacuum lifter is designed to move various plates, glass, marble slabs or ceramic tiles. These items can be easily moved or lifted by vacuum pumps and suction cups. Vacuum glass suction cup adopts an electric vacuum pump to implement electric suction and deflation. And it has functions such as electric rotation, side turning, manual turning, etc., which can realize the transfer and handling of glass very easily. It is mainly used in the installation of outdoor glass curtain walls and the removal of indoor glass. Not only greatly improve the work efficiency of workers, but also ensure the safety of staff. And suction vacuum cup lifter is an adjustable design; you can change the position of the suction cup according to your needs to absorb glass of different shapes and sizes. If you also need glass suction cups, send us an inquiry now.

Specifications:
Model Type WCR-GR-35 WCR-GR-40 WCR-GR-50 WCR-GR-60
Load Capacity 300kg (retract) 400kg (retract) 500kg (retract) 600kg (retract)
150kg (extend) 200kg (extend) 250kg (extend) 300kg (extend)
Lifting Height 3500mm 3500mm 3700mm 3700mm
QTY of Suction Cap 4pcs 4pcs 6pcs 6pcs
Rubber Suction Cap Ø300mm Ø300mm Ø300mm Ø300mm
Maintenance-free Battery 2x12V/80AH 2x12V/100AH 2x12V/120AH 2x12V/120AH
Battery Charger Smart Charger Smart Charger Smart Charger Smart Charger
Drive motor 24V/1200W 24V/1200W 24V/1200W 24V/1200W
Lifting Motor 24V/2000W/6L 24V/2000W/6L 24V/2000W/6L 24V/2000W/6L
Chassis L*W 2660*810mm 2660*810mm 2800*810mm 2800*810mm
Driving Wheel Ø250x80mm Ø250x80mm Ø300x100mm Ø300x100mm
Packing Size(mm)  2560*1030*1700 2560*1030*1700 2580*1050*1700 2580*1050*1700
N.W/G.W 1100/1150kg 1280/1330kg 1300/1350kg 1400/1450kg
Loading Qty 1x20/40GP: 6/12SETS
Movement Automatic 1. Pad frame vertical up/down 180°automatic
(4 kinds) 2. Boom in/out TELESCOPIC automatic
3. Powered arm up/down automatic
4. Lateral side shift 100mm automatic
Manual (2kinds) 5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right)
6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°)
Usages Mainly used for handling,moving and installing glass,marble,wooden panel etc.
