Feature:

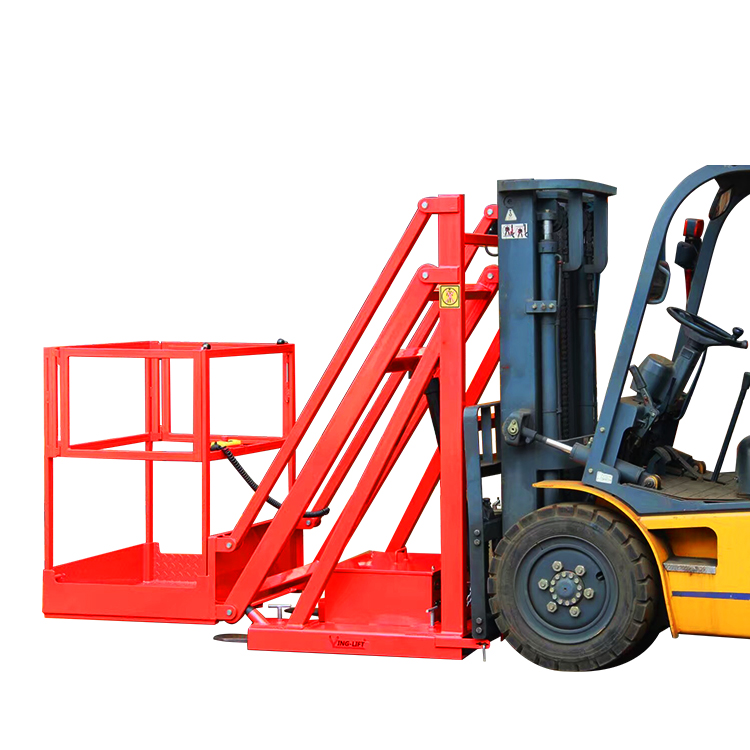

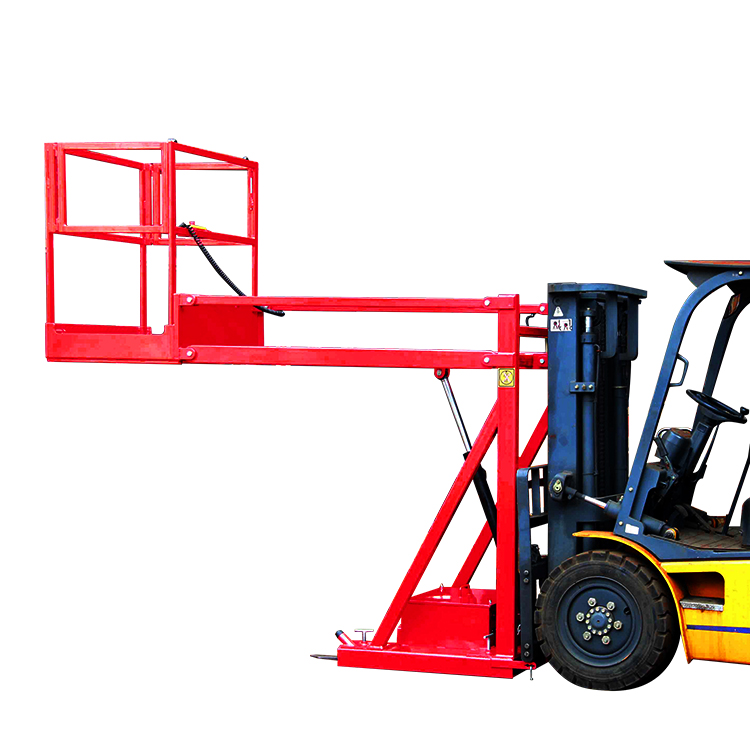

NK28A Forklift electric manned platform

The NK28 forklift is installed on a manual electric elevator platform

Forklift safety electric lifting platform, thick frame, factory direct sales price. With a physical display, everything is safety first.

High-quality oil pump to choose a high-quality hydraulic pump station, to improve the stability, high work efficiency.

Suitable for seat drive 2T or above forklift, forklift electric manned platform and forklift connection use three kinds of insurance.

Equipped with two fixed pins, two chain buttons, four fixed T bolts on the forklift leg to ensure safety.

The high quality hydraulic cylinder is equipped with explosion-proof valve to prevent rapid decline when the tubing breaks and ensure safety in operation.

Maintenance-free battery, forklift power can also be used with optional AC 220V voltage, improving operating endurance and efficiency.

Specifications:
Model Forklift Work Platform NK28A
Capacity kg 280
Lifting height mm 3200
Platform size mm 1000*800
Motor / 12V 1200W
Battery V/Ah 12/120
Net weight kg 426
Overall size mm 2140*1000*2000
