Products – Hoisting And Lifting Equipment

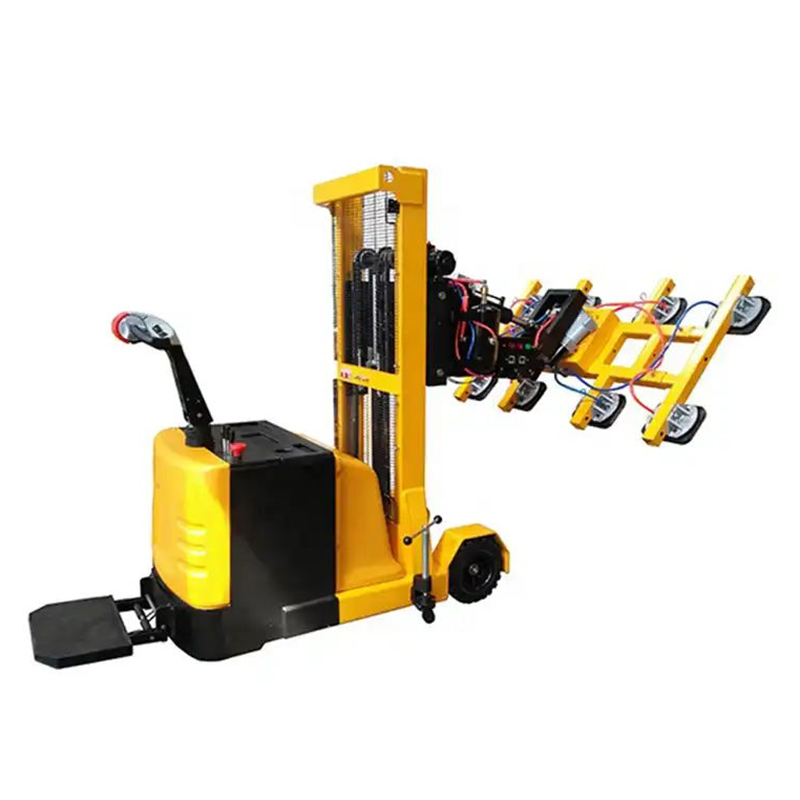

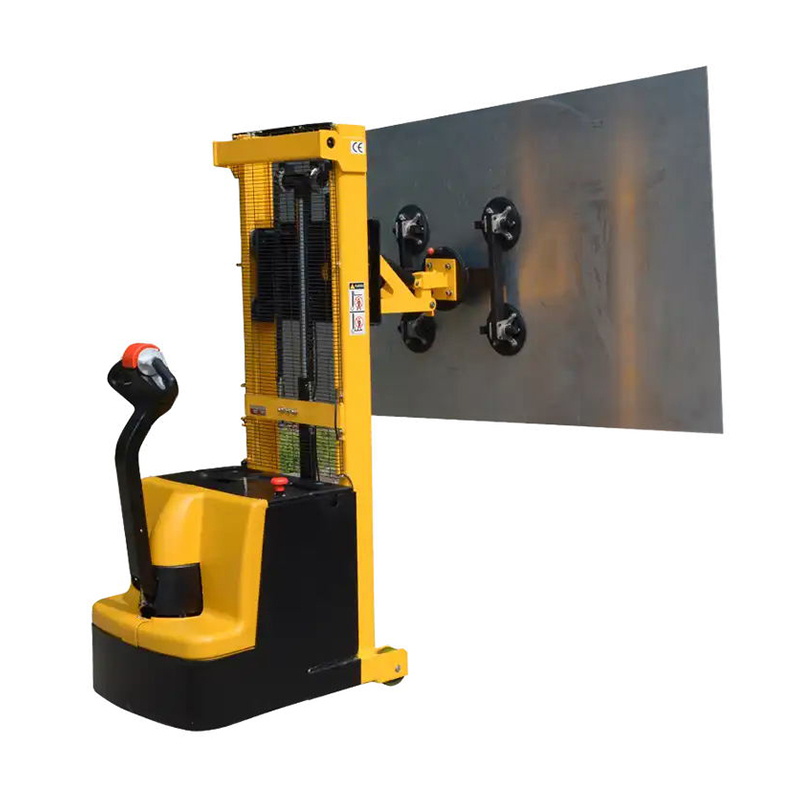

Name:PWS-20GR Walkie Electric Vacuum Glass powered Flip Handling  Lifter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Wide usage

This lifter is mainly used in a variety of different types of plate, glass and other materials handling, loading and unloading, reversal, installation and other operations.

Quite operatation

Balanced suction cup handling mechanical vehicle, no front legs, no obstacles, product appearance small, convenient to enter the elevator. Equipped with glass suction cups, fork and other devices, become a balanced stack high forklift and other handling and lifting equipment.

High quality accessories

Use the European security standards, automatic inquiry section, control the work pressure, and to use the double pipe system, safety when control, to prevent accidents.

Various functions

Sucker handling manipulator is environmentally friendly, efficient and easy to operate, electric walking, electric hydraulic lifting, electric front turn or back turn, from vertical state to horizontal state flip plane 360

A variety of models

Walking economy, standard folding slightly board station drive, balance and other configuration, equipped with intelligent ten level power display table

Multi-function control handle, simple operation, large capacity battery set, super battery life, smart computer charger.

Specifications:
Model: PWS-20GR
Capacity: 400kg(Horizontal) 200kg(Vertical)
Suction cup frame adjustable width: 1000 to 1400mm
Max height of the suction cup(Horizontal): 1600mm/2500mm
Min height of the suction cup(Horizontal): 140mm
Max height of the suction cup(Vertical): 2268mm
Min height of the suction cup(Vertical): 808mm
QTY of caps: 4xφ30
The vertical direction can be turned down by 90 degrees.
The horizontal direction can be rotated 90 degrees to the left and right.
Battery: 2x12V/70A
Charger: 24V/10A
Lift motor: 24V/2000W
Overall Length: 1450mm
Overall Width: 800mm
Overall Height: 2000mm
Net Weight: 425kg
Packing size: 1550*1100*2100mm
Gross Weight: 500kg
Previous:WSC-095GR Automatic powered electric glass  Vacuum Glass Flip  handling LifterNext:WCR-GR-35 WCR-GR-40  WCR-GR-50 WCR-GR-60 Vacuum Glass LifterReturn
