Products – Hoisting And Lifting Equipment

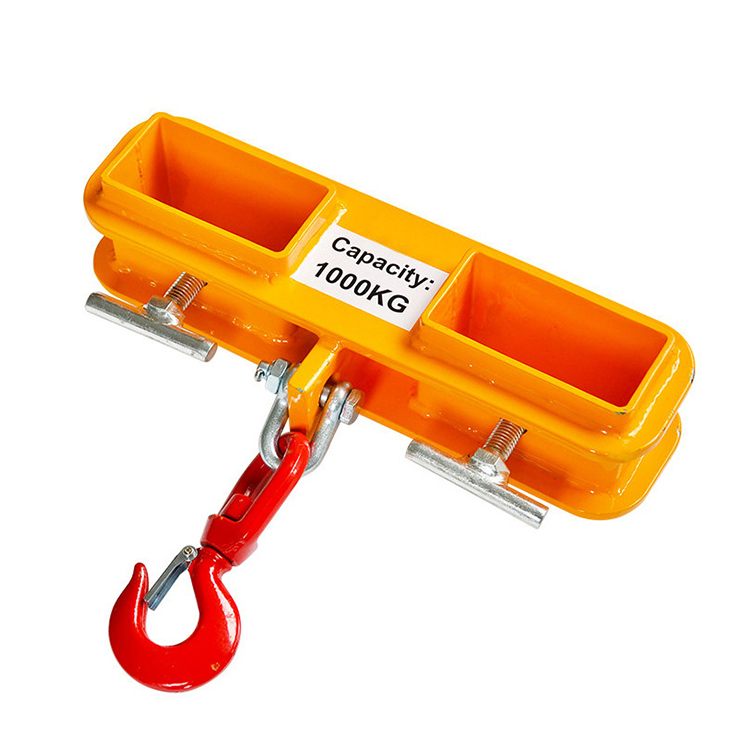

Name:MK50 High Strength Steel Forklift Lifting Hoist Swivel Hook
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Product description

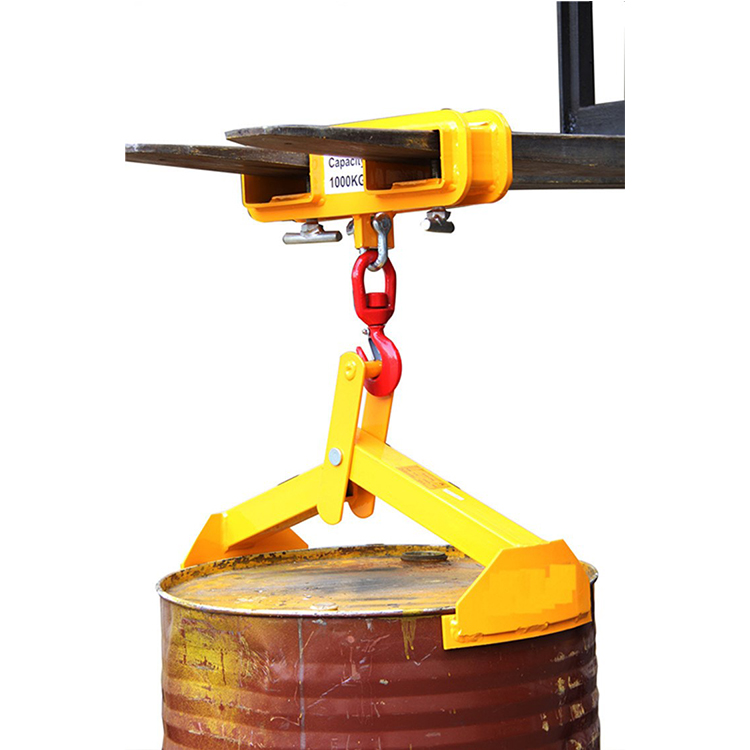

These fork adapters provide a safer handling of non-pallet-loaded forklifts. Turning the handling scraper into a mobile crane can hang the load over the sling and clip or grab and rotate it as needed rather than arbitrarily balancing the load on the fork. Ideal for structural steel section or steel plate.

Product characteristics

Double fork design, powder coated finish, suitable for most tray forks, and installed in seconds to easily turn your forklift into a moving crane with a Titan crane! Simply slide the hook over your tray fork fork bag, and for safety, clamp them with a thumb screw and fix the hook to your payload. Make your heavy lifting work easier and take advantage of the full capabilities of your forklift with this high quality yet affordable product from the company with a pallet fork in its name. The hook point is located in the standard loading center and is rated for most forklifts. Strong, heavy-duty construction that ensures long-term durability.

Simple loading and unloading

The assembly position can be adjusted along the length direction of the cargo fork, the electrical appliances can rotate, and the device is safely interlocked together, easy to fix.

Matters need attention

The goods are suitable for the installation of the cross-section size 160X60mms (width X thickness) rod, and the change of bearing force must be taken into account to ensure the safety details in the process.

Specifications:
Model MK10 MK25 MK50
Capacity kg 1000 2500 5000
Max. Fork section mm 140x55 148x56 188x76
Net weight kg 14 25 45
Overall Size (mm) mm 440 x 120 x 160 660 x 150 x 180 730 x 180 x 220
Fork Centre mm 250 450 450
