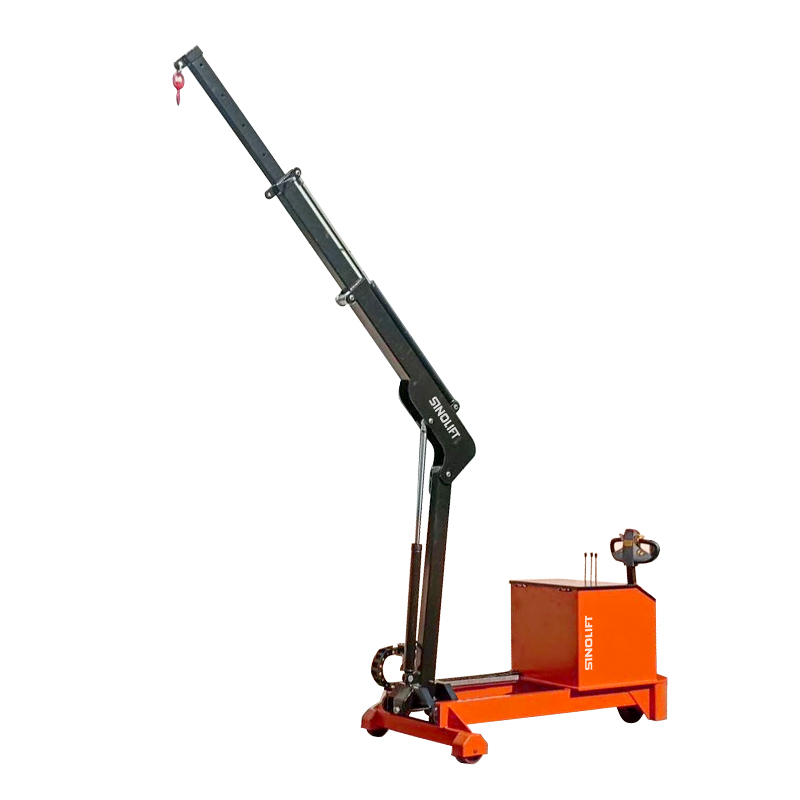

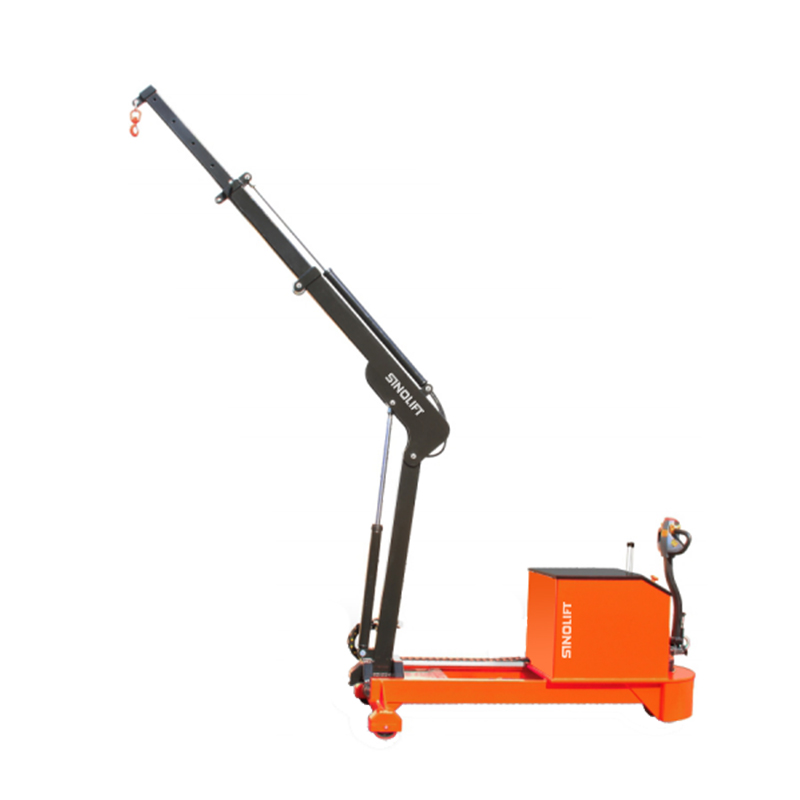

Name:YLH01 Cantilever Telescopic Boom Mobile Floor Crane
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Efficient

Electric walking, hydraulic lifting, hydraulic forward movement, and hydraulic forward extension are multifunctional integrated balanced weight fully electric single arm cranes. The frame is designed with a humanized design, and the height and angle can be adjusted according to one's own situation, making it convenient, time-saving, and labor-saving to improve work efficiency.

Long battery life

Joint venture hydraulic pump station with strong power, maintenance free battery and long-lasting power, suitable for long-term operation of business.

High quality

High quality oil cylinder, heavy-duty design, easy and convenient adjustment of boom distance through oil cylinder

Small volume

Equipped with a safety valve, it can be folded and packaged with a small volume, making it easy to store and suitable for operation in areas where forklifts are not easy to enter.

Specifications:
model YLH01
deadweight kg 725
Counterweight 600
Battery parameters 12V/120Ah*2
Battery size mm 406*172*211
Battery weight kg 30*2
Lifting motor kw 2.2
Drive motor power kw 0.75
front wheel mm 150*70
Drive wheel mm 250*80
Walking speed
kw/h 5
Vehicle dimensions

mm 2200*1015*1950
