Feature: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

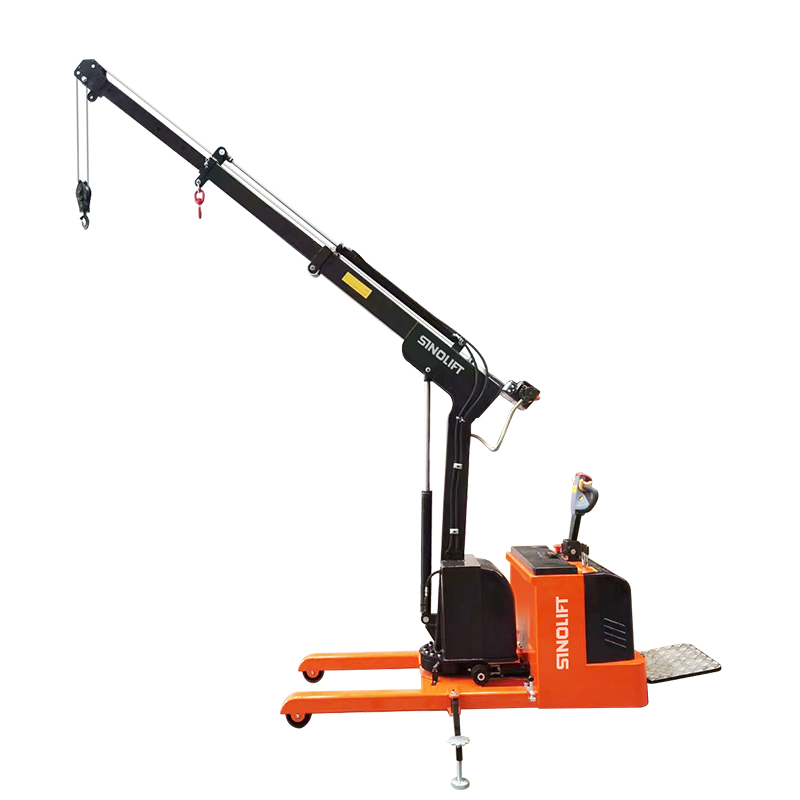

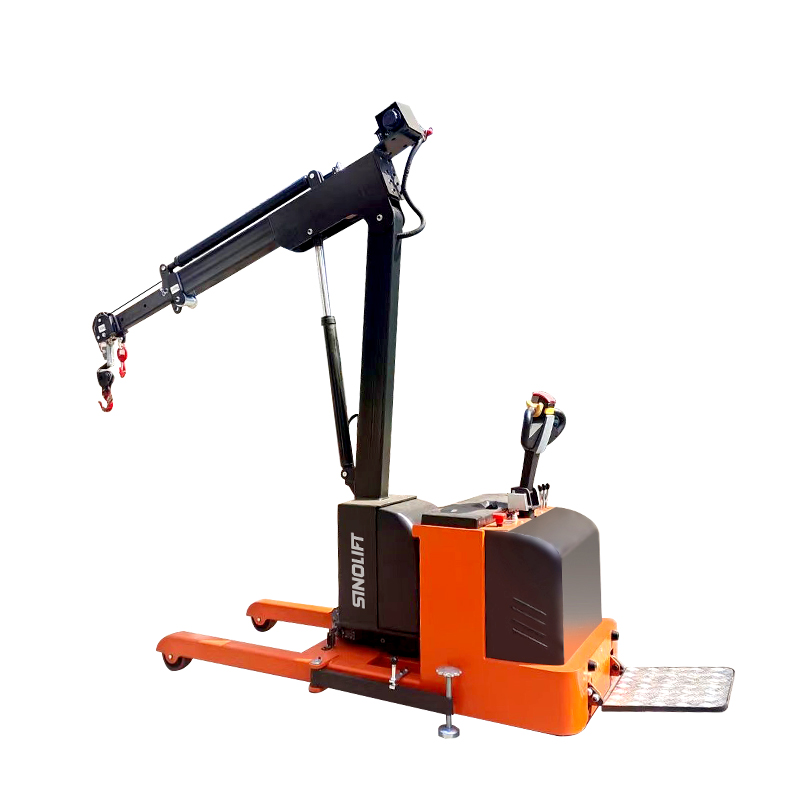

Easy to operate Multi functional control handle for human-machine integration, stepless speed controller for walking, high-power steering switch.Long endurance integrated hydraulic station, high-power walking drive wheel, maintenance free battery, long-lasting power: Multi mode application The lifting arm is designed in three sections, with a wide lifting range. The second section of the lifting arm can be easily adjusted for extended length through the oil cylinder; The hook can be controlled up and down through remote control; The first boom can lift 1000kgs. user-friendly design Equipped with a manned pedal for easy and convenient movement of the crane matters needing attention 1) When lifting, the supporting legs on both sides must be opened and in full contact with the ground. 2) The attenuation curve diagram must be considered during use to ensure lifting safety. 3) It is strictly prohibited to stand under the lifting arm during lifting operations Machine rated data The maximum ground clearance of the boom is 3.27 meters, the minimum ground clearance is 1.62 meters. When the boom is fully extended, the boom length is 3.27meters, and the load capacity is 300Kg. When the boom is fully retracted, the boom length is 1.62 meters, and the load capacity is 1000Kg. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
