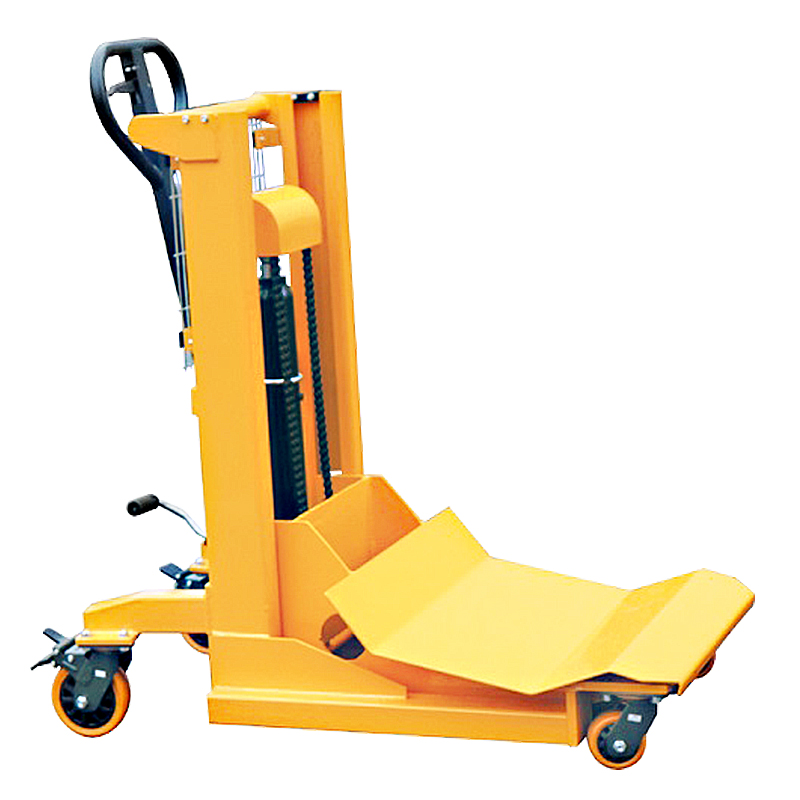

Name:MRL0786 MRL1086 MRL1015 Roll and Reel Hydraulic Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Rugged construction
Long functional life
Low maintenance costs
Specifications:
Model MRL0786 MRL1086 MRL1015
Operation Manual
Load capacity (kg) 700 1000 1000
Lifting Height (mm) 865 865 1500
Max.width of reel/roll (mm) 1550 1550 1550
Max.diameter of reel/roll (mm) 800 800 800
Reel Tray Wdith (mm) 700 700 700
Overall Length (mm) 1165 1165 1350
Overall Wdith (mm) 700 700 800
Overall Height (mm) 1130 1130 2060
Net Weight (kg) 150 160 220
