Products ¨C Reel And Roll Handling Equipment

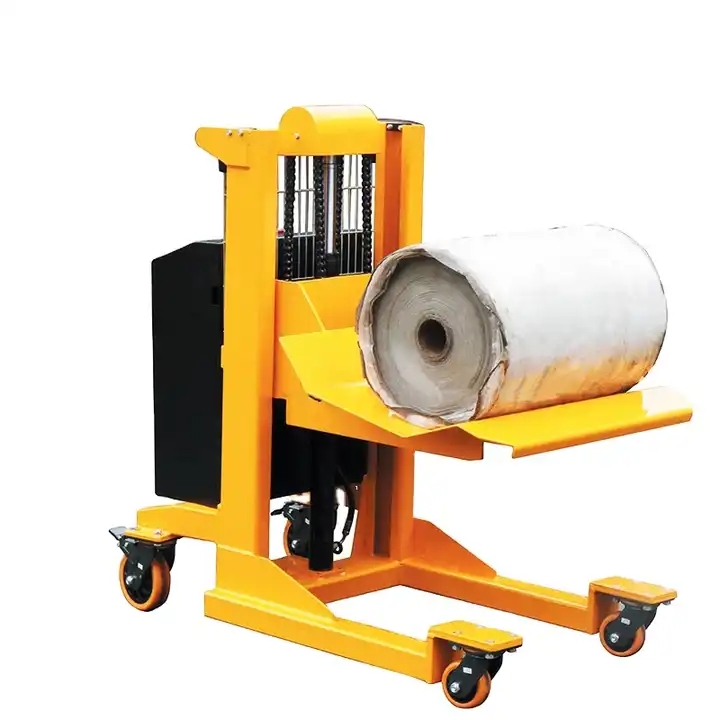

Name£ºSINOLIFT ERL0786 ERL1086 ERL1015 Roll & Reel Hydraulic Stacker
Click to view larger
Diagrams£º

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel£º+86 21 58003681
              +86 21 68014500
 Fax£º+86 21 68014262
 Website£ºhttp://www.sinoliftdrum.com
 Email£ºdrum@sinolift.com
 Skype£ºsinolift

Feature£º
Semi Electric Lifting Roll Work Positioner Stackers are specially designed for handling rolls of different materials in industries such as printing, packaging, paper a more.
Structure made of high resistance steel rolled sections to ensure the highest degree of strength and durability.
Large media and heavy material rolls are handled quickly and easily.
Material damage is reduced or eliminated when moving rolls.
Electric lifting, high efficiency for heavy loading.
Specifications£º
Article No.
ERL0786 ERL1086 ERL1015
Operation
Semi-Electric
Load capacity (kg) 700 1000 1000
Lifting Height (mm) 865 865 1500
Max.width of reel/roll (mm) 1550 1550 1550
Max.diameter of reel/roll (mm) 800 800 800
Reel Tray Wdith (mm) 700 700 700
Overall Length (mm) 1165 1165 1350
Overall Wdith (mm) 700 700 800
Overall Height (mm) 1130 1130 2060
Net Weight (kg) 190 200 350
Previous£ºSINOLIFT PFR3050L PFR4025 PFR4050 Roll & Reel Hydraulic StackerNext£ºCTD-Z series Semi-electric Roll Clamp StackerReturn
