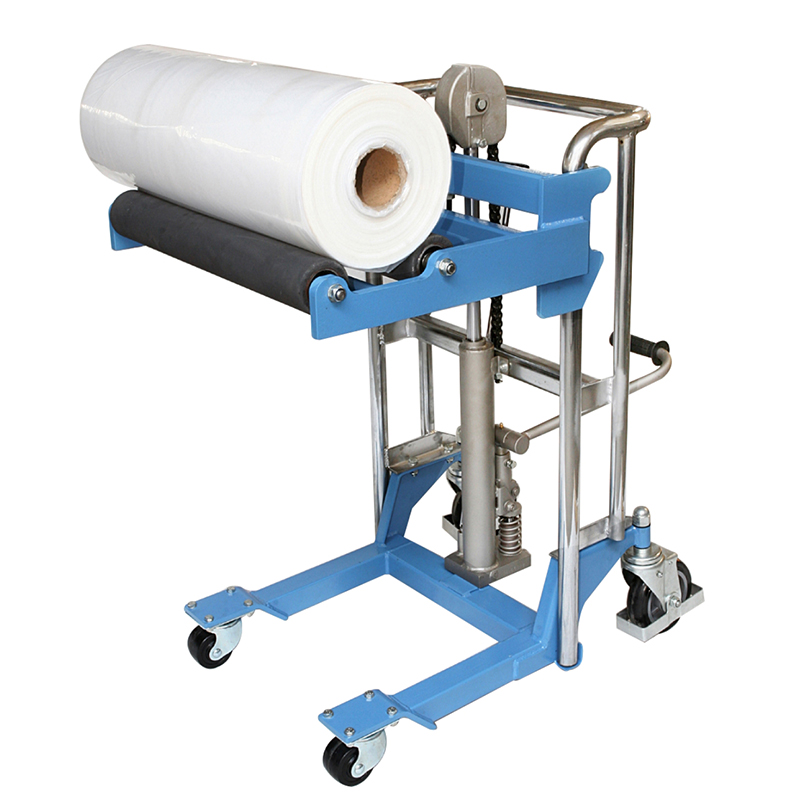

Name:SINOLIFT PFG4085(W) PFG4120(W) PFG4150(W) Roll & Reel r(1)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The Tiger Work Positioner range has been designed, developed and built to give long service with minimum maintenance required and assist with all manner of manual handling within industry and commerce. A sound long term investment!

Specifications:
model fixed front wheel PFG4085 PFG4120 PFG4150
model universe front wheel PFG4085W PFG4120W PFG4150W
Maximum load 400 400 400
Maximum rise of roll 870 1200 1500
Minimum roll height 180/220 180/220 180/220
Leg height 80 80 80
Leg height 120 120 120
Maximum diameter of applicable workpiece Medium 200*600 Medium 200*600 Medium 200*600
Roll size 76*550 76*550 76*550
Roll length 550 - (800). 550 - (800). 550 - (800).
Roll center distance 180 (240). 180 (240). 180 (240).
Roll material Rubber (PU, galvanized steel, stainless steel) Rubber (PU, galvanized steel, stainless steel) Rubber (PU, galvanized steel, stainless steel)
Roller center distance can be adjusted (100-250), (100-250), (100-250),
Overall dimension 780 * 630 * 1070 780 * 630 * 1420 780 * 630 * 1720
Front wheel diameter Ф 75 Ф 75 Ф 75
Rear wheel diameter Medium 125/ diameter 150 Middle 125/150 Medium 125/ Medium 150
Work times 30 45 58
Net weight 72 78 85
Previous:SINOLIFT ERS4120 ERS4150 Roll & Reel Hydraulic StackerNext:SINOLIFT EPT-R series Roll Pallet TruckReturn
