Products – Pallet Truck

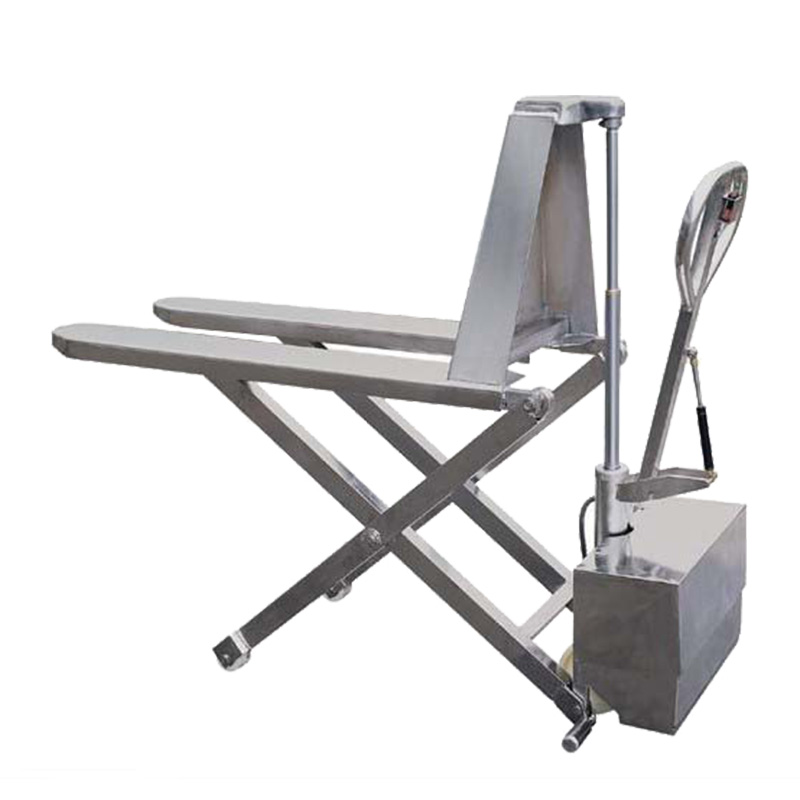

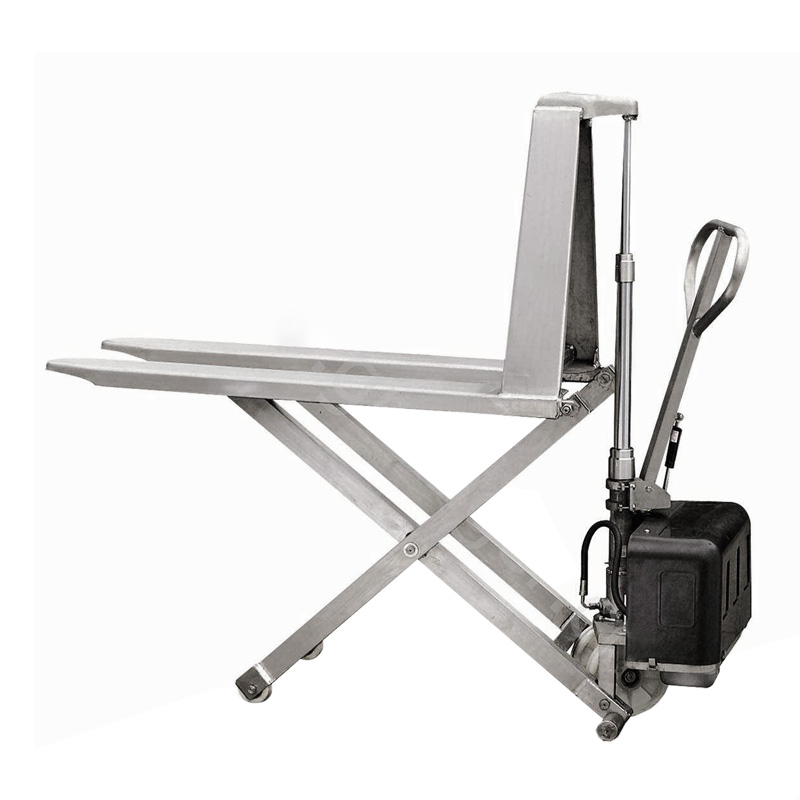

Name:SINOLIFT NPHE Electric Scissors Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Powered by 12 voltage battery, Driven by American "Monarch" pump station or French "HPI" Pump station.

◆Used as both a work table and pallet truck.

◆10-12 seconds pumping from the bottom to the top.

◆safety overload system prevents the truck from being used beyond its rated capacity.

◆The Handle can be restored to its upright position automatically once you let it free.

◆Lifting motor power is: 1.1kw.

◆Easy placing of load to correct ergonomic work height.

Specifications:
Model NPHE1000 NPHE1500
Capacity (kg) 1000 1500
Lowest Fork Height (mm) 85 85
Max. Fork Height (mm) 800 800
Fork Length X Fork Width (mm) 1140X520 or 1140X680 1100X520 or 1100X680
Diameter of front wheel (mm) Ø75X50 Ø75X50
Diameter of Rear Wheel (mm) Ø150X50 Ø150X50
Lifting time in Full Range(s) 10/12 18
Size of Fork (mm) 162X50 162X50
Descending Speed (m/s) <0.1 <0.1
Motor Working Voltage (v) 12 12
Battery Volgage (v) 12 12
Electricity Volume  (A/h) 63 63
Working pressure of Pump Station (Mpa) 15 21
Imput/output Voltage of Charger (v) 200-240/12 115-230/12
Service Weight  (kg) 118 / 128 145 / 155
Max. Charging Current of Charger (A) 10 10
