Name:SINOLIFT NPS handing stainless steel hydraulic pallet truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

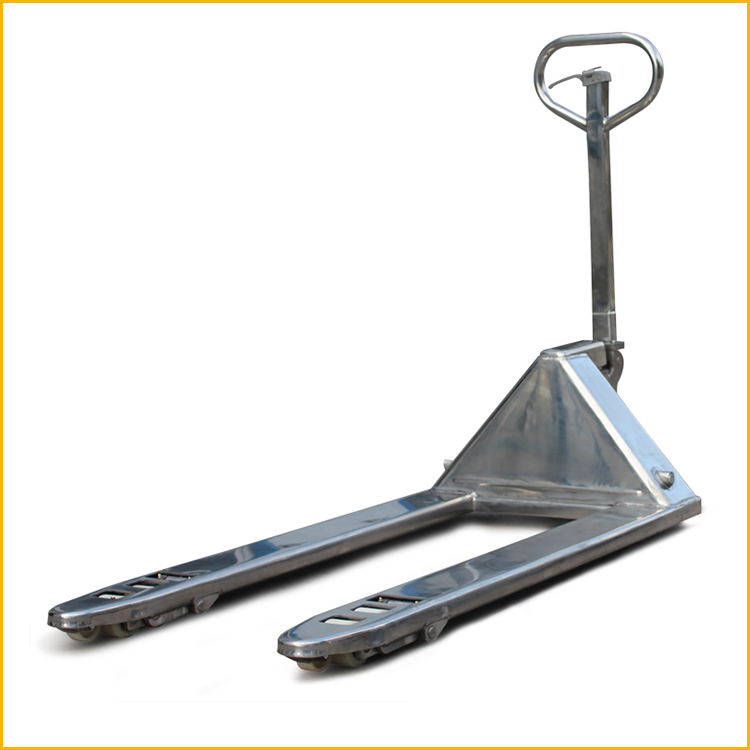

This stainless steel pallet truck is designed for use in environments such as clean rooms, laboratories, wash down and corrosive applications. This 100% stainless steel truck is ideal in industries such as food, fish, slaughter houses, salt water and chemical.

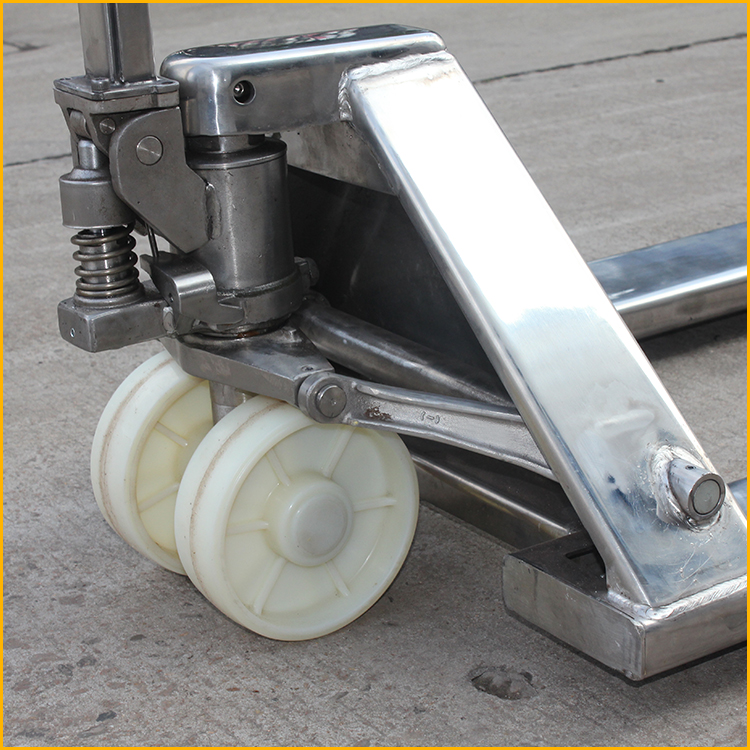

The entire frame and pump is manufactured from 304 stainless. Nylon wheels are standard to withstand water exposure. Wheel bearings are double shielded for protection.

Capacity is 4500 lbs. Fork width is 6.25”. Steer wheels are 7” in diameter and load wheels are 2.75” in diameter. Lowered height is 3”. Entry and exit rollers standard.

Specifications:
MODEL NPS25-511 NPS25-712
Rated Capacity (Kg) 2500 2500
Width over forks (mm) *1 W1 520 685
Fork length (mm) *1 L1 1150 1220
Min. Fork Height (mm) H2 80 80
Max. Fork Height (mm) H1 200 200
Steering Wheel (mm) A 200x62 NYLON 200x62 NYLON
Load Wheel (mm) *2 B 78x70 (Tandem) 78x70 (Tandem)
Weight (kg) 80 83
Under Clearance (mm) 40 40
Fork width (mm) W2 150 150
Width inside forks (mm) 220 385
Strokes 12 12
Overall Height (mm) C 1200 1200
Overall Length (mm) 1500 1570
Steer Angle 230 deg 230 deg
Drive Unit Length (mm) 370 370
