Products – Pallet Truck

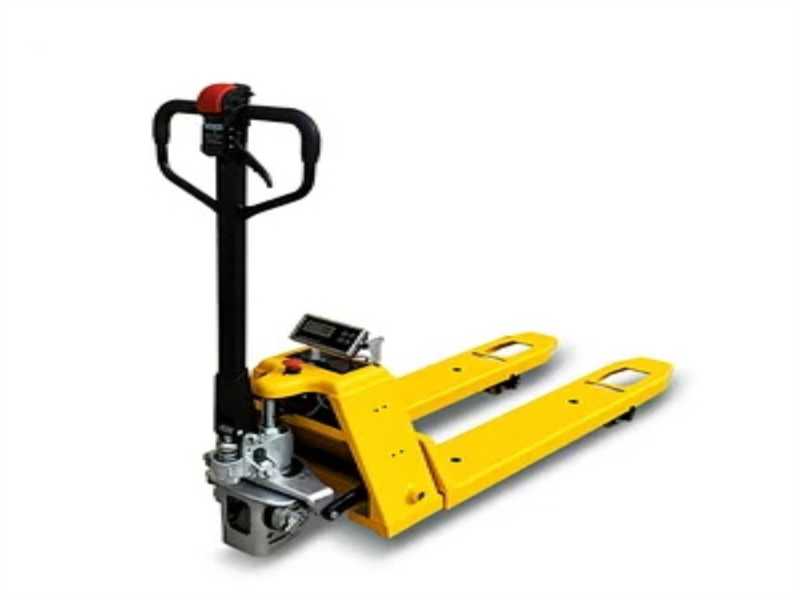

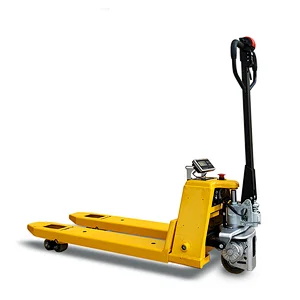

Name:ET15MH-S Semi-Electric Li-Battery Power Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Features of the ET15MH-S  Semi-Electric Li-Battery POWER PALLET TRUCK

1. The Hybrid Pallet Truck with a precise Scale indicator can make your weighing Job easier

2. Easier entrance/exit design for pallet

3.Update Li-battery design with 2 years warranty

4. Quick charging, 3KG weight only 2-5 hour

Specifications:


Product Code

ET15MH-S

Unit of Measurement

Metric System

Imperial

Capacity

kg

1500

lbs

3000

Lowered Fork Height H2

mm

85

inch

3.3"

Steering Whee1*1 A

mm

0180x65

inch

Φ7"X2.6"

Fork Wheel Tandem B

mm

078x70

inch

03 x2.75"

Max Lif Height H1

mm

200

inch

8"

Total Height H

mm

1250

inch

49"

Overall Lengh L2

mm

1540/1610

inch

60.6"x63.4"

Fork Lengh *1 L1

mm

1150/1220

inch

45"/48"

Width Overall Forks W1

mm

540/680

inch

21727"

Single Fork Width W2

mm

165

inch

6.5"

Travel Speed(Load/unload)

4/4.5kmh

2.5/2.8mph

Load Center

mm

600

inch

24"

Battery Voltage/Capacity

V/Ah

24VI20Ah Li-Battery

V/Ah

24VI20Ah Li-Battery

Tuming Radius

mm

1320/1390mm

lbs

52"55"

Service Weight

kg

125

lbs

275
