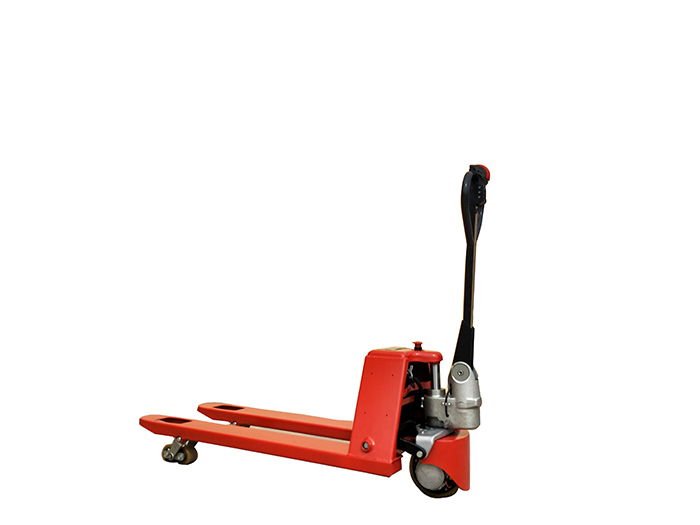

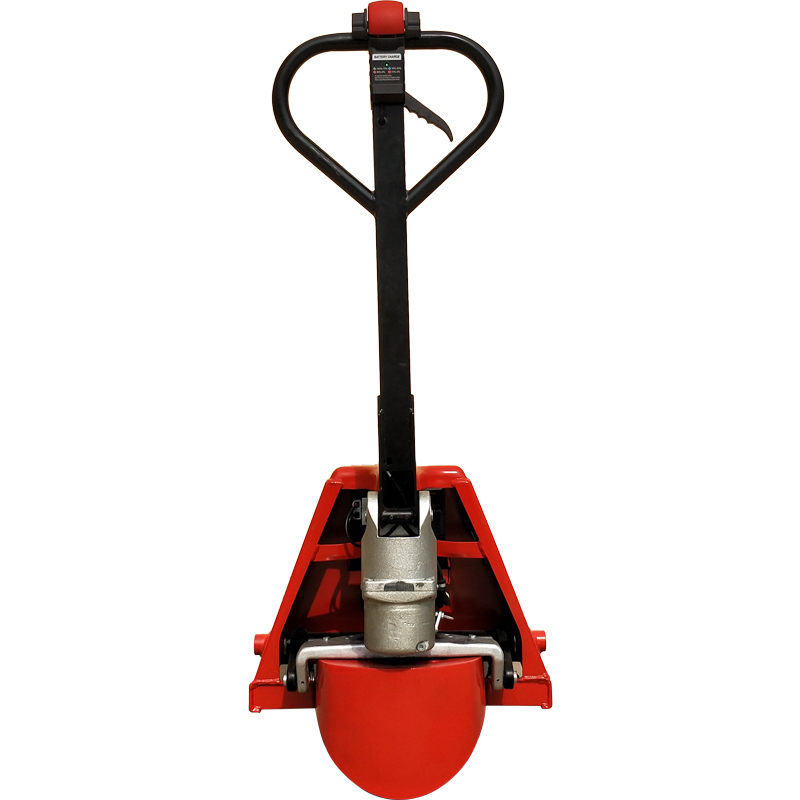

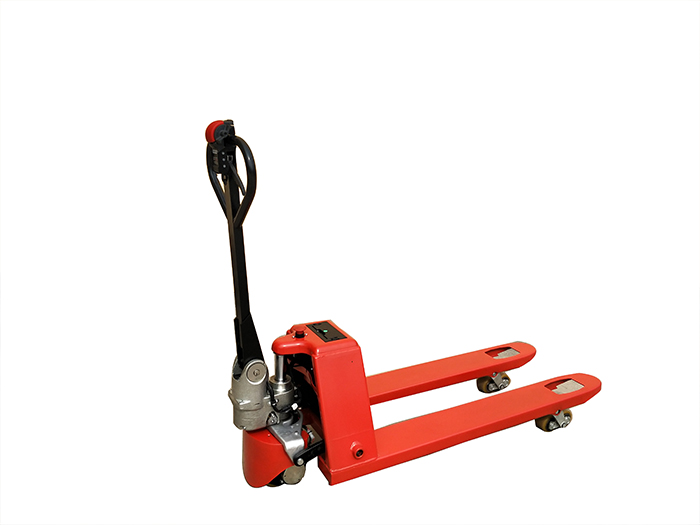

Name:SINOLIFT ET20MH-P Full-Electric Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

At the heart of the ET20MH Forklift is a reliable, high-capacity lithium battery, designed for long-lasting performance, assuring you can tackle the toughest tasks with utmost efficiency. This electric power source is not only eco-friendly but also reduces running costs, showcasing a perfect blend of power and sustainability.


Specifications:
1 Manufacturer
Sinolift Sinolift
2 Model
ET15MH ET20MH
3 Operator type
Walkie Walkie
4 Load Capacity(kg) Q 1500 1500
5 Load Center(mm) C 600 600
6 Wheelbase(mm) Y 1202/1272 1202/1272
7 Service Weight(kg)
115/120 120/125
8 Overall Height(mm) H1 1280 1280
9 Lift Height(mm) H2 200 200
10 Fork Height(Lowered)(mm) H3 85 85
11 Overall length(mm) L1 1555/1625 1555/1625
12 Overall width(mm) B 540/680 540/680
13 Fork Size(mm)  L2 540*1150/680*1220 540*1150/680*1220
14 Travel Speed(laden/unladen km/h 4/4.5 4/4.5
15 Max.gradeability(laden/unladen) % 8%/20% 5%/20%
16 Battery voltage/Capacity V/Ah 24v/20Ah liBattery 24v/20Ah libattery
17 Turning radius R 1352/1422 1352/1422
18 Travel Motor
750w 750w
