Products – Pallet Truck

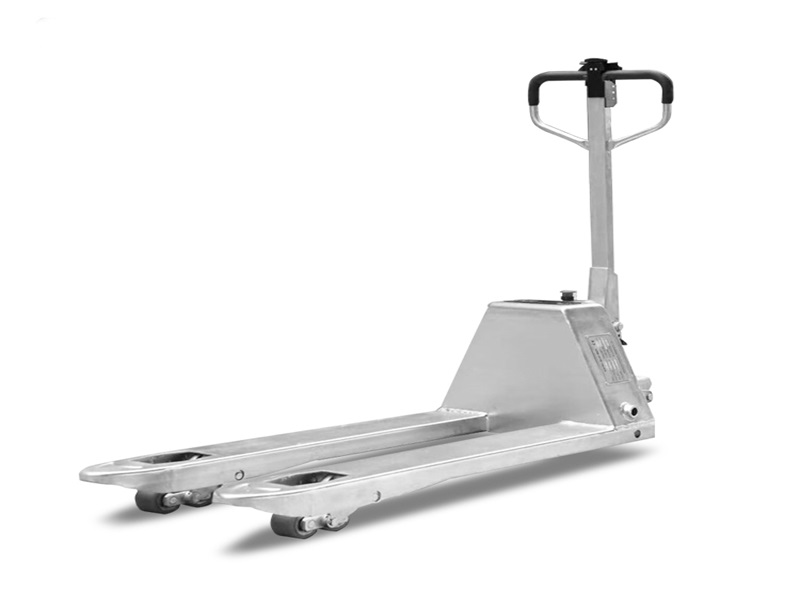

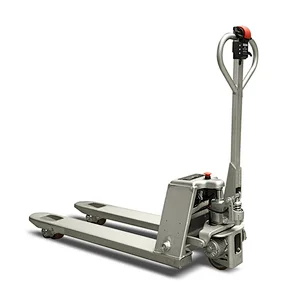

Name:ET15MH-F Semi-Electric Li-Battery Power Stainless Steel Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. High-performance permanent magnet DC motor, which simulates the soft process of manual pallet truck acceleration to ensure the safety of workers.
2. Unique patented technology gravity control handle, in line with CE, GB,ANSI operating standards, safe and efficient operation.
3. Compact and quick-change lithium battery, no maintenance, no need to add acid and liquid, up to 2 years warranty.
4. Walking upright black technology allows workers to operate vehicles safely and effectively in containers or narrow passages.
Specifications:

Product Code

ET15MH-F

Unit of measurement

Metric System

Imperial

Capacity

kg

1500

Ibs

3000

Lowered fork height H2

mm

85

inch

3.3"

Steering wheel *1 A

mm

Φ180x65

inch

Φ7"X2. 6"

Fork wheel tandem B

mm

Φ78x70

inch

Φ3"x2.75"

Max. lit height H1

mm

200

inch

8"

Total height H

mm

1250

inch

49"

Overall length L2

mm

1.335403727

inch

60.6"x63 4"

Fork lenath *1 L1 mm


1150/1220 inch


45"/48"

Width overall forks W1

mm

540/680

inch

21/27"

Single fork width W2

mm

165

inch

6.5"

Travel Speed(l oad/unload)


4/4. 5kmh


2.5/2 8mph

Load center

mm

600

inch

24"

Battery Voltage/Capacity

V/Ah

24V/20Ah Li-Battery

V/Ah

24V/20Ah Li-Battery

Turning Radius

mm

1320/1390mm

Ibs

52"/55"

Service weight

kg

125

Ibs

275
