Products – Pallet Truck

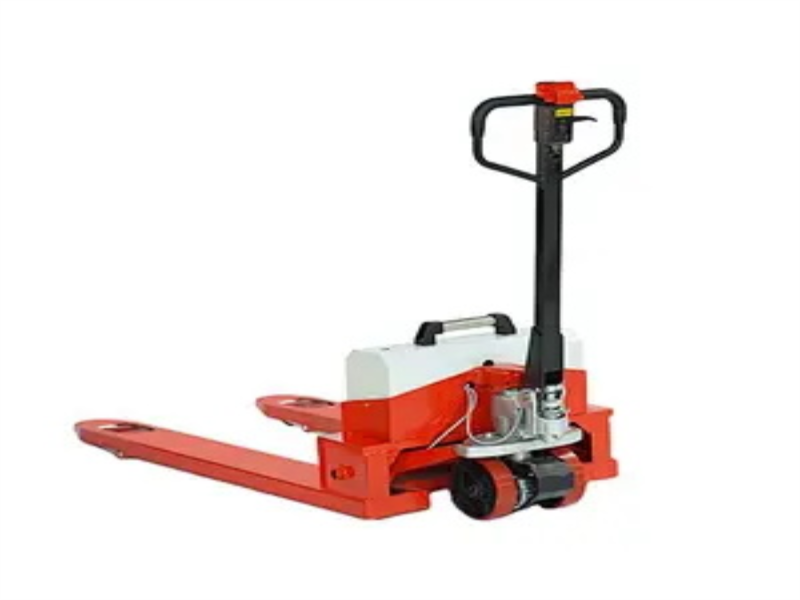

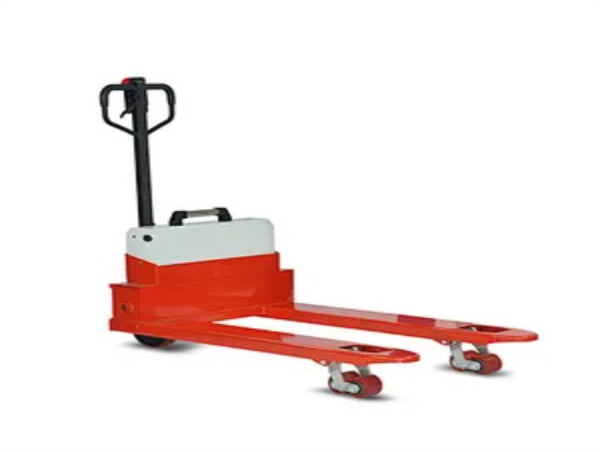

Name:EV20 Semi-electric Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Available in a variety of situationssuitable for warehouses,workshopssupermarkets, logistics operations and long-distance handling;

2. Smart electronically controlled brakes, hand release handle to automatically brake;

3. One cylinder does not leak oil: oil pump for the one cast type, safe not to leak oil,durable strong spring, steady rise and fall;

4. intelligent electronically controlled brakes greatly improve the safety performance of the car.

Specifications:


Model



EV25 (Q15A)

EV25 (L15A)

Battery Capacity



48V/15A or 24A

48V/15A or 20A

Rated Load

kg

2500

2500

Fork Outer Width

mm

550/685

550/685

Single Fork Size

mm

160/50

160/50

Fork Length

mm

1150/1220

1150/1220

Minimal Height of Fork

mm

85

85

Maximum Height of Fork

mm

200

200

Front Load Wheel

mm

Φ80X70 PU Wheel

Φ80X70 PU Wheel

Back Drive Wheel

mm

Φ180X50 PU Wheel

Φ180X50 PU Wheel

Previous:The ET16 Semi-electric Pallet TruckNext:ET15MH-F Semi-Electric Li-Battery Power Stainless Steel Pallet TruckReturn
