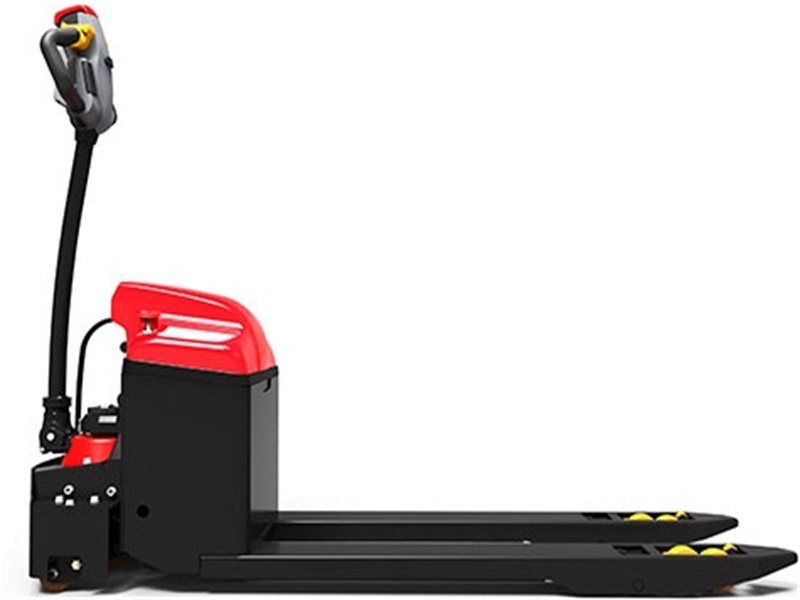

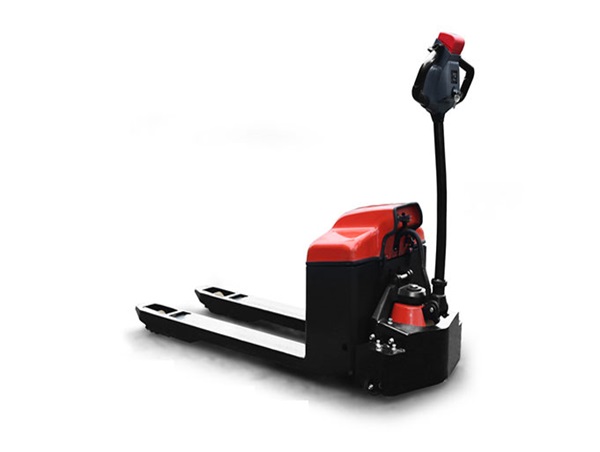

Name:EPT20-ET Series Electric Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Lift and lower pallet loads quickly and easily with a push of a button.It is capable of moving heavy weights more than 1 to 2 tons;

2.Ergonomic handle features dual butterfly thumb controls with infinite forward and reverse speeds, lift/lower controls, safety belly reverse button, and horn;

3.This pallet truck is equipped with reinforced 150mm or 6welded forks;

4.The Electric Pallet Jack offers 4.8 hours service per charge.

Specifications:

Brand

Sinolift

Model



EPT20-15ET

EPT20-20ET

EPT20-30ET

Power Mode


Electric

Electric

Electric

Driving Mode


Walking Mode

Walking Mode

Walking Mode

Rated Load

kg

1500

2000

3000

Load Center Distance

mm

600

600

600

Truck Length

mm

1638

1638

1638

Truck Width

mm

560/685

560/685

560/685

Fork Size

mm

1150*150*50

1150*150*50

1150*160*55

Fork Outer Width

mm

560/685

560/685

560/680

Fork Lift Height

mm

195

195

200

Tuming Radius

mm

1485

1485

1780

Wheel Type


PU Polyurethane

PU Polyurethane

PU Polyurethane

Front Wheel Size

mm

ф80*60

ф80*60

ф85*65

Drive Wheel Size

mm

ф210*75

ф210*75

ф250*80

Drive Control Type


DC

DC

AC

Drive Motor Power

kw

0.65

0.75

1.5

Lifting Motor Power

kw

0.84

0.84

1.5

Battery Voltage

V/Ah

2X12/65

4X12/30

2X12/100

Weight (Including Battery)

kg

164

200

400

Minimum Height of
Fork from Ground

mm

80

80

85
