Products – Pallet Truck

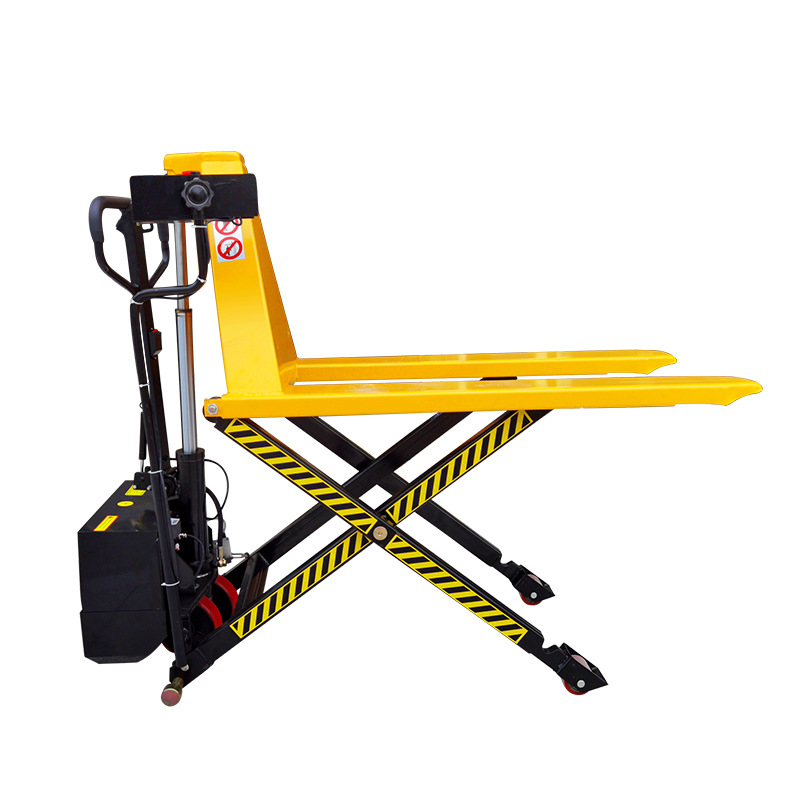

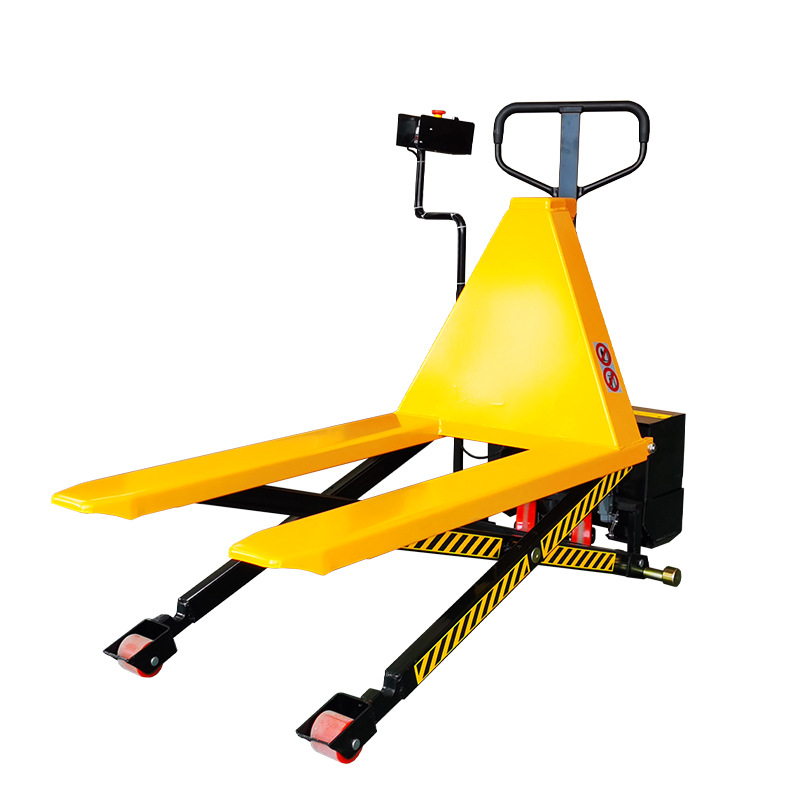

Name:NPHD-1 Electric Scissors Pallet Truck with photoelectric sensor
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. The truck can load 1T, 1.5T, and the lifting height is 800MM.

2. This NPHD-1 (double-section cylinder)is equipped with a safety valve to avoid overloading and comes with a charger.

3. It can be used as a lifting platform. Its body design is compact, and the oil pump has the function of quick lifting.

4. The lifting range can be adapted to different handling heights, excluding the trouble bending over to carry goods. 5. This NPHD-1 (double-section cylinder) has            automatic height adjustment mode or manual height adjustment mode.




Specifications:

MODEL

NPHD15-1(540)

NPHD15-1(680)

Max Load

kg

1000

1000

Maximum Fork Height

mm

800

800

Minimum Fork Height

mm

85

85

Fork Length

mm

1150

1150

Fork Width

mm

540

685

Drive Wheel Size

mm

φ180×50

φ180×50

Fork Wheel Size

mm

φ74×50

φ74×50

Accumulator

V/Ah

12/75

12/75

Weight

kg

155

161
