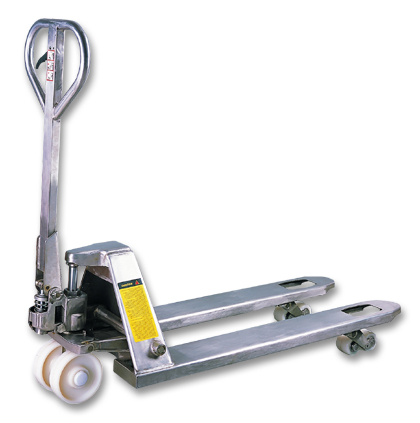

Name:ACS Stainless Steel Hand Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.The material of the vehicle is 304 stainless steel.

2. All parts are made of stainless steel, including hydraulic pumps, fork carriages, handles, push rods, bearings, latches and bolts etc.;

3. Suitable for meat or other food industry, dairy canning and some corrosive acid and salt places;

4. Loading wheel/driving wheel material: Nylon;

5. The lower height of the fork is 85mm,

6. Subject to standard EN1757-2;

7. Easy to install and unassembled when transported

Specifications:

Stainless Steel Manual Pallet Truck

Item/ Model

AC 2 Ton  540*1150

AC 2 Ton  685*1220

Max Loading Capacity

KG

2000

2000

Large Wheel Size

MM

180*50

180*50

Small Wheel Size

MM

74*70

74*70

Outer Width of Forks

MM

540

685

Fork Inner Width

MM

220

365

Fork Length

MM

1150

1220

Lowest Fork Placement

MM

85

85

Highest Fork Placement

MM

205

205
