Products – Pallet Truck

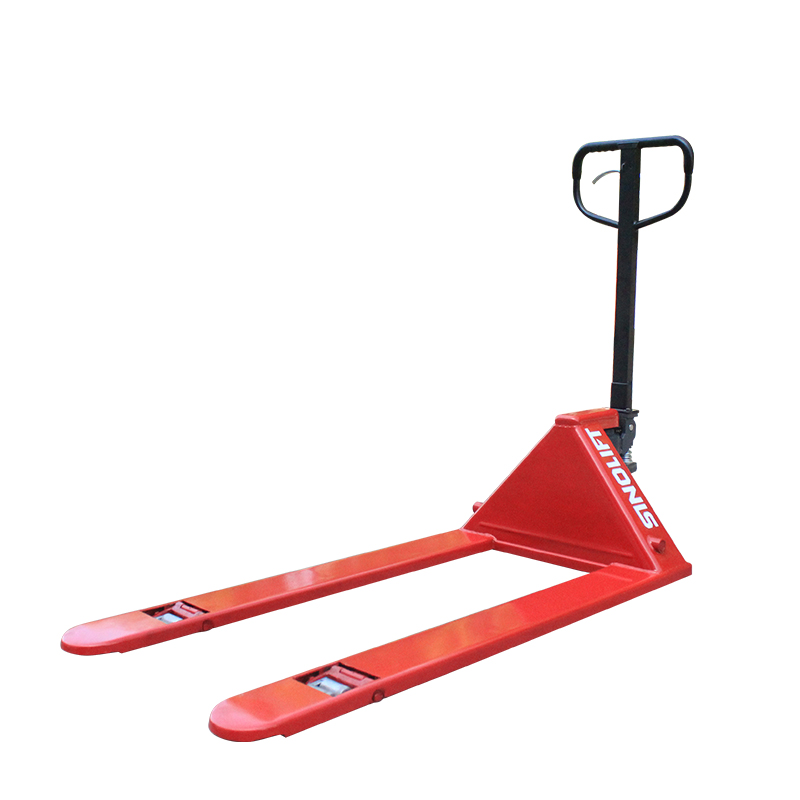

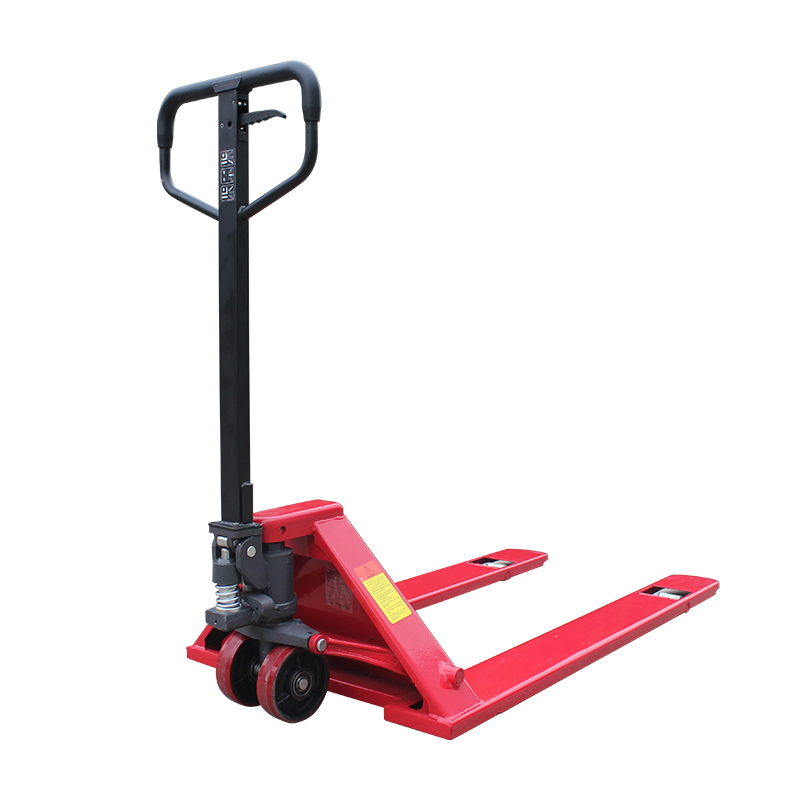

Name:NPSL10-35 03 NPSL25-51 superlow profile
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Low level car is suitable for low pallet, narrow space work occasions;

Integral welded cylinder, cylinder drop speed is not affected by the load;

Imported sealing ring, chrome plated piston rod;

Internal relief valve provides overload protection, effectively reducing maintenance costs;

High quality radial roller bearing is used at the connection of rotating shaft, which is flexible and does not shake.

Integrated cast wheel frame, equipped with front and rear guide wheels to protect the assembly wheel from impact and extend the life of the wheel.

Specifications:
Item/Type NPSL25-Low-51mm NPSL10-Supper Low
Capacity Q kg 1500 1000
Min. fork height h mm 51 35
Max. fork height h1 mm 165 90
Steering wheel mm Ø180x50 Ø160x50
Load roller Single mm Ø50x93 No
Load roller Tandem mm Ø50x70 Ø34x58
Size of fork e*s mm 160x37 160x30
Width overall forks B mm 540 / 685 / 838 530/685
Fork length I mm 1150/1220 1120
