Products – Pallet Truck

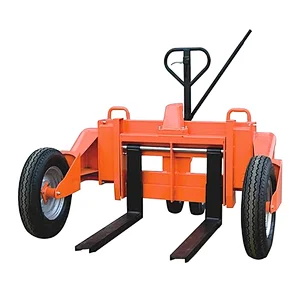

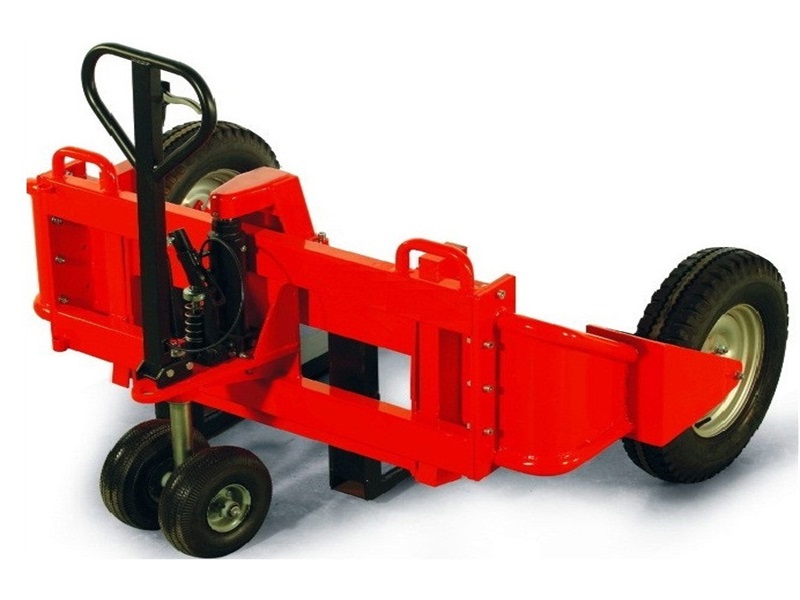

Name:RTT12 All Rough Terrain Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Ideal for open and closed pallets.

2. Hand release trigger, easy to maneuver with 210 degrees turning radius.

3. Low maintenance pump unit.

4. Hand release trigger to control the rate of descent.

5. 2640 lbs capacity adjustable forks Rough Terrain Truck.

6. Fitted with Pneumatic tires for use on undulating surfaces.

7. Powder coated heavy duty steel frame.

8. Fitted with adjustable 34 inches long forks that can lower down to a minimum height of 2 inches.

Specifications:

Model

RTT12

Capacity Q

kg

1200

Fork Length L1

mm

860

Fork width e

mm

100

Adjustable Fork Width w1-w2

mm

212-735

Max.Fork Height H (Max)

mm

223

Min.Fork Height H (Min)

mm

53

Max.Pump Stroke

mm

170

Overall Size LxWxH

mm

1375x1605x1200

Front Wheel Dia.x Width

mm

550x132

Rear Wheel Dia.x Width

mm

300x80

Width inside the front wheel

mm

1277

Net Weight

kg

235

Minimum Qty.

n

7 purchase
