Products – Scissor Lift Platform

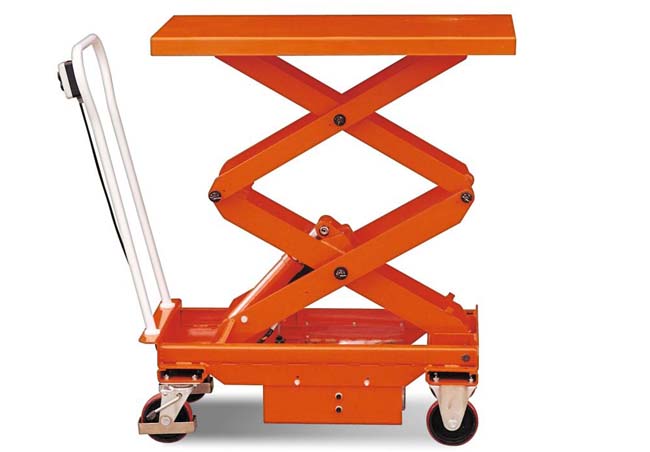

Name:ES30D ES50D ES80D Doulbe Scissors Electric Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
 01 Hand Hydraulic Table Lift
 02 Double Scissors Hydraulic Table Lift
 03 Three Scissors Hydraulic Table Lift
 04 Pneumatic Table Lift
 05 Semi-Electric Table Lift
 06 Full Electric Table Lift
 07 Post Lift Table
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
Other

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Feature:

1.Electric lifting design.

2.Thickened high-quality oil cylinder。

3.automatic charger.

4.Meet EN1570,1999 safety standards


Specifications:
Model ES30D ES50D ES80D
Type Double Scissor Double Scissor Double Scissor
Load capacity kg 300Kg 500Kg 750Kg
Min.height mm 450mm 450mm 450mm
Max.height mm 1600 1618 1460
Table dimension mm 1010X520mm 1010X520mm 1010X520mm
Dia.of the wheel mm Φ125X30mm Φ150X40mm Φ150X40mm
Lifting and lowering time S 15 15 15
Storage Battery V/Ah 75/12 75/12 75/12
Charger input Voltage V/A 220/10 220/10 220/10
Net weight kg 150 160 170
Previous:Sinolift ES30 ES50 ES75 ES100 Single Scissor Electric Table LiftNext:Sinolift TS40 TS80 Tilting Electric Table LiftReturn
