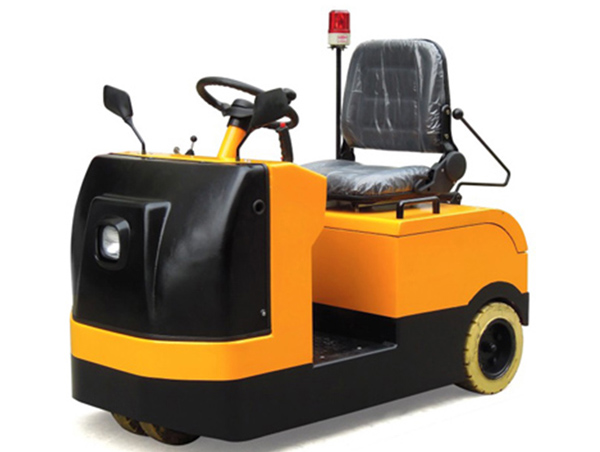

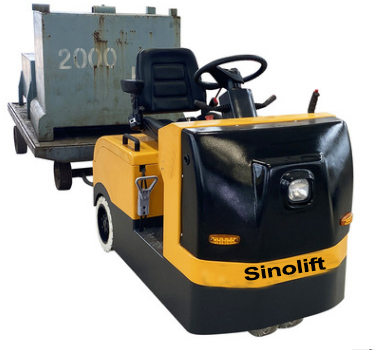

Name:QD30BH QD50BH Rider Electric Towing Tractor
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 E Series Electric Pallet Truck
 06 Acid Battery Operated Pallet Truck
 07 Forklift Mounted Attachment
 08 Lifting Crane Equipment
 09 Jack and Skates
 10 Electric Towing Tractor
 11 Counter Balanced Forklift
 12 Electric Stacker

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262

1. Suspended seat
New type of suspended seat: adjust the bearing capacity according to the weight, and provide the most comfort.
2. Reliable accelerator
The inner safety switch ensures safer operation.
The service life is more than 10 million times.
3. Big steering angle
Bigger steering angle ensures smaller turning radius and easier operation, and the space utilization ratio is also increased.
4. Beautiful and useful tighten mechanism
The tighten mechanism is installed at the top of the cover, so that the forklift is more beautiful, convenient and useful.
5. Tricolor taillight
The tricolor taillight gives you obvious indications of turning, breaking and reversing, which ensure more safety for both life and property.
Model No. QD-30BH QD-50BH
Towing Capacity kg 3000 5000
Driving Motor W DC-24V-2000W DC-36V-3000W
Battery D-300A 24V D-300A 24V
Driving Speed km/h 0~6.5 0~6.5
Controller Type CURTIS solid-state speed CURTIS solid-state speed
Working Time Hours 6 6
Min. Turning Radius mm 1350 1580
Operation Type Rider seated Rider seated
Min.under-clearance mm 85 85
Steering Wheel mm White Rubber Φ267x76 White Rubber Φ330x165
Drive Wheel mm Φ330x114 Φ267x127
Overall length mm 1700 1760
Overall width mm 800 820
Overall height mm 1240 1280
Service Weight kg 1450 1580
