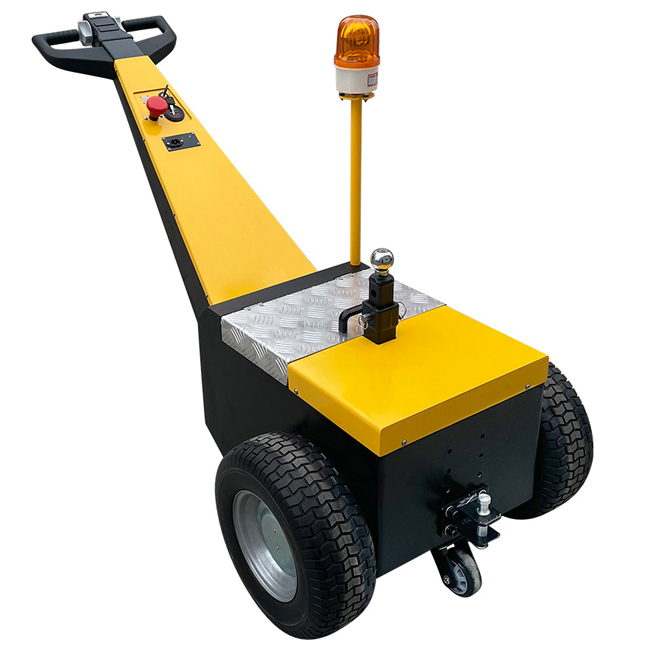

Name:ETP200 ETP250 ETP350 ETP400 Walkie ElectricTugger Power Tug capacity 2000-4000kg
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 E Series Electric Pallet Truck
 06 Acid Battery Operated Pallet Truck
 07 Forklift Mounted Attachment
 08 Lifting Crane Equipment
 09 Jack and Skates
 10 Electric Towing Tractor
 11 Counter Balanced Forklift
 12 Electric Stacker
Other

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Large capacity maintenance free battery is adopted.
2.Stepless speed regulating acceleration system.
3.It has the function of emergency braking.
4.It is suitable for indoor and outdoor flat pavement.
5.The maximum design gradient is 5%.
6.It has low voltage protection function.
7.There is fault display lamp, which is convenient for diagnosis and maintenance.
8.Built in charger for charging at any time.
9.High torque electromagnetic brake is used for service brake and parking brake.
Specifications:
Model ETP200 ETP250 ETP350 ETP400
Drive unit Battery Battery Battery Battery
Operator type Pedestrian Pedestrian Pedestrian Pedestrian
Rated capacity kg 2000 2500 3500 4000
Rated drawbar pull N 480 720 800 800
Wheelbase mm 630 630 680 680
Service weight(include battery) kg 275 295 336 345
Tyre type Rubber/PU Rubber/PU Rubber/PU Rubber/PU
Tyre size, driving wheels mm 2XΦ406x150 2XΦ406x150 2XΦ375x115 2XΦ375x115
Tyre size, loading wheels mm Φ125x50 Φ150x50 Φ150x50 Φ150x50
Tyre quantity, driving/loding wheel 2/2 2/2 2/2 2/2
Overall Height mm 1100 1100 1230 1230
Overall length mm 1705 1735 1915 1915
Overall width mm 760 760 805 805
Travel speed, laden/unladen km/h 4/5 4/5 2.5/3.5 2.5/3.5
Gradeability, laden/unladen % 5/10 5/10 5/10 5/10
Braking type Electromagnetic Electromagnetic Electromagnetic Electromagnetic
Charger V/A 24/10 24/15 24/15 24/50
Rated power of driving motor S2 60 minutes Kw 0.8 1.2 1.5 1.5
Battery voltage/nominal capacity K20 V/Ah 2X12/70 2X12/100 2X12/120 24/200 Lithium battery
Type of drive unit DC DC DC DC
Steering type Mechanical Mechanical Mechanical Mechanical
Sound pressure level at the driver's ear dB(A)
<70
<70
<70
<70
