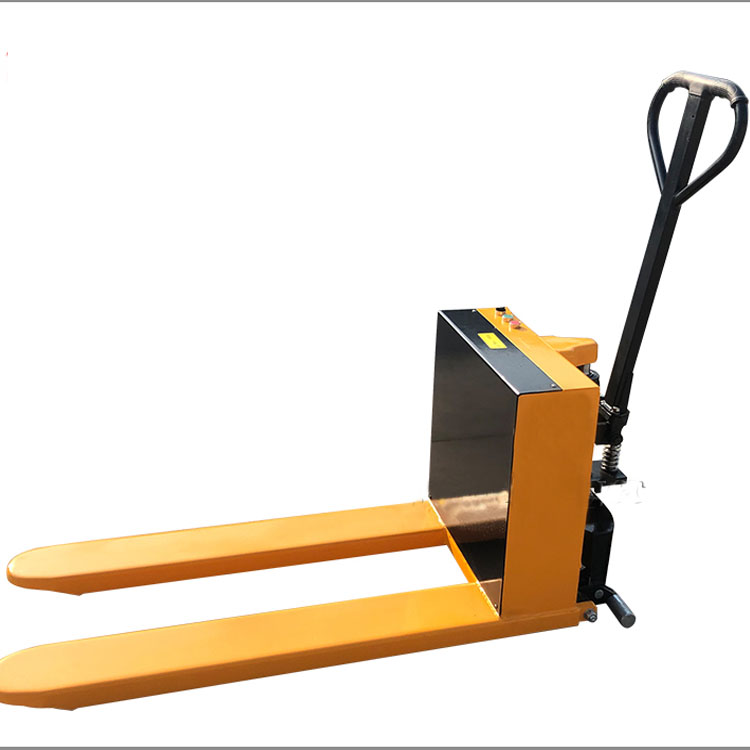

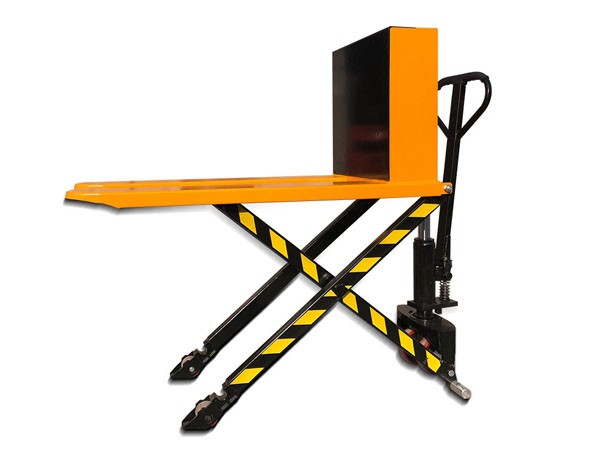

Name:EGSF1000 EGSF1500 Electric Scissor Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 E Series Electric Pallet Truck
 06 Acid Battery Operated Pallet Truck
 07 Forklift Mounted Attachment
 08 Lifting Crane Equipment
 09 Jack and Skates
 10 Electric Towing Tractor
 11 Counter Balanced Forklift
 12 Electric Stacker
Other

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Combination of pallet truck and lift table.
2.Ideal for your loadingand unloading operations.
3.Continuous-welded heavy steel frame and forks handle weighty loads with ease.
4.Easy-to-use control lever,plus two parking brakes on steering wheels increase safety.
5.A steering handle on 1000kg models for easier and comfortable turning.
6.Conforms to EN1757-4.
Specifications:
Model EGSF1000 EGSF1500
Loading Capacity kg 1000 1500
Min. Lifting height mm 85 85
Max. Lifting height mm 800 800
Steering wheel mm 180X50 180X50
Fork wheel mm 80X70 80X70
Fork Length mm 1150 1150
Fork width mm 520/550/685 520/550/685
Overall Length mm 1520X520/550/685X1120 1520X520/550/685X1120
Voltage V 12 12
Battery capacity Ah 60 60
Net Weight kg 181 181

Previous:GSF1000 GSF1500 Hand Scissors Pallet Truck Scissor Lift Pallet TruckNext:ETM050 ETM100 ETM150 Walkie Electric Tugger 500-1000kg capacity Electric PalletReturn
