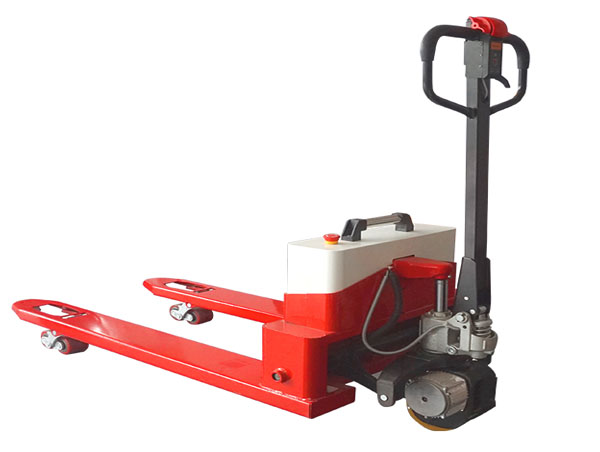

Name:EV20S EV20L Semi-electric Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Multifuntional handle.

2.Lithium-ion Battery as the power.Three types of lithium battery 48V/15Ah,48V/20Ah,48V/30Ah,battery life is at least 5 years.Full charge can be used for at least 4 hours.

3.Intrgated Casting Cylinder.Strong sealed and no oil leakage.

4.Quicker pressure relief valve.It will improve the put down speed as well as the work efficiency.

Specifications:
Model EV20S / EV20L
Driving Type Semi-Electric
Driving Motor kv 0.8
Driving Wheel Size mm ø180X50
Front Wheel Size mm ø80X70
Rated Capacity kg 2000
Turning Radius mm 1500
Travel speed km/h 5
Outer Width mm 685/550
Inner Width mm 365
Overall length mm 1150
Max.Fork Height mm 200
Min. Fork Height mm 70
Lithium Battery v/ah 48
Net weight kg 150
