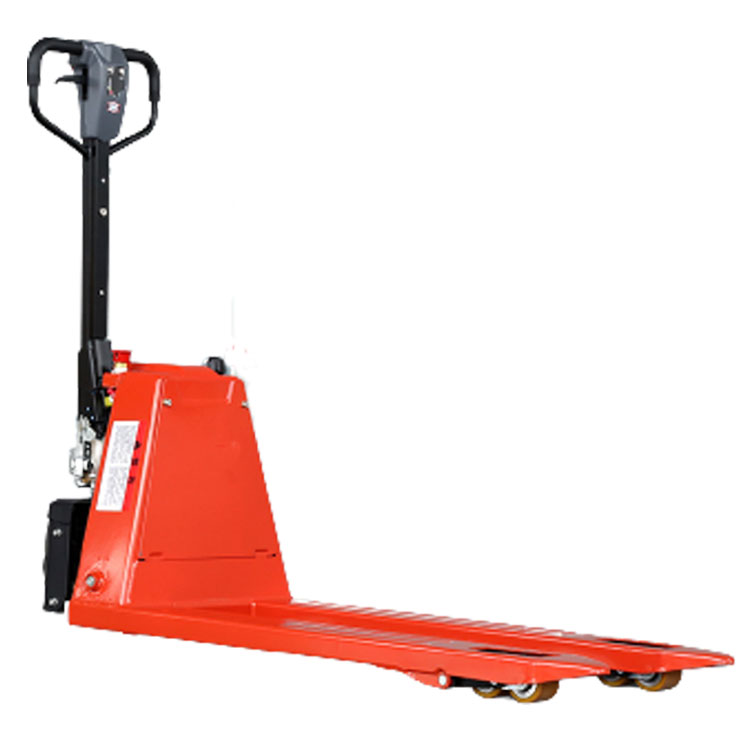

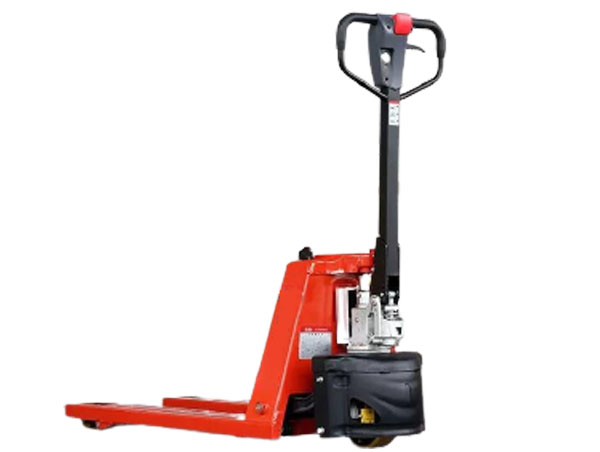

Model
|
|
EPT18-EHJ
Electric Pallet Truck
|
|
Drive unit
|
|
Electric
|
|
Rated capacity
|
Kg
|
1800
|
|
Type Operation
|
|
Pedestrian
|
|
Load center
|
mm
|
600mm
|
|
Load distance
|
mm
|
883/946
|
|
Wheel base
|
mm
|
1170/1233
|
|
Net weight(including Battery)
|
Kg
|
145
|
|
Axle Loading.laden driving side
|
mm
|
645/1300
|
|
Axle Loading.unladen driving side
|
mm
|
115/30
|
|
Tyre type driving wheels(diameter X width)
|
|
PU/PU
|
|
Tyre size, driving wheels(diameter X width)
|
mm
|
Φ210X70
|
|
Tyre size, loading wheels(diameter X width)
|
mm
|
2XΦ80X60(Φ74X88)
|
|
wheels,number driving,caster/loading(x=driving wheels)
|
mm
|
1X
/4
|
|
track width,rear,loading side
|
mm
|
410(535)
|
|
Lift height
|
mm
|
115
|
|
Height drawbar in drawing position min,/max
|
mm
|
715/1280
|
|
Lowered height
|
mm
|
85(75)
|
|
Overall length
|
mm
|
1613
|
|
Length to face of forks
|
mm
|
463
|
|
Overall width
|
mm
|
560(685)
|
|
Fork dimensions
|
mm
|
50X150X1150
|
|
Distance fork arms
|
mm
|
560/685
|
|
Ground slearance,center of wheelbase
|
mm
|
35
|
|
Asile width for pallets 1000X1200 crossways
|
mm
|
1684
|
|
Aisle Width For Pallets 800X1200 Crossways
|
mm
|
1684
|
|
Turning radius
|
mm
|
1430
|
|
Travel speed,laden/unladen
|
k/mh
|
2,5/3
|
|
Lift speed,laden/unladen
|
m/s
|
10mm/time
|
|
Lowering speed,laden/unladen
|
m/s
|
Controlable
|
|
Max,Gradeability,laden/unladen
|
mm
|
2/6
|
|
Service bake type
|
|
Electromagnetic
|
|
Drive motor rating S2 60 min
|
kw
|
0.65
|
|
Lift motor rating at S3 15%
|
kw
|
manual
lifting
|
|
The maxium allowed size battery
|
mm
|
185/125/190
|
|
Battery voltage/norminal capacity k20
|
mm
|
24/30
|
|
Battery weight
|
kg
|
9.5X2
|
|
type of drive control
|
|
DC
|
|
Steering type
|
|
Mechanical
|
|
Sound pressure level at the driver's ear
|
mm
|
74
|
Diagrams：
