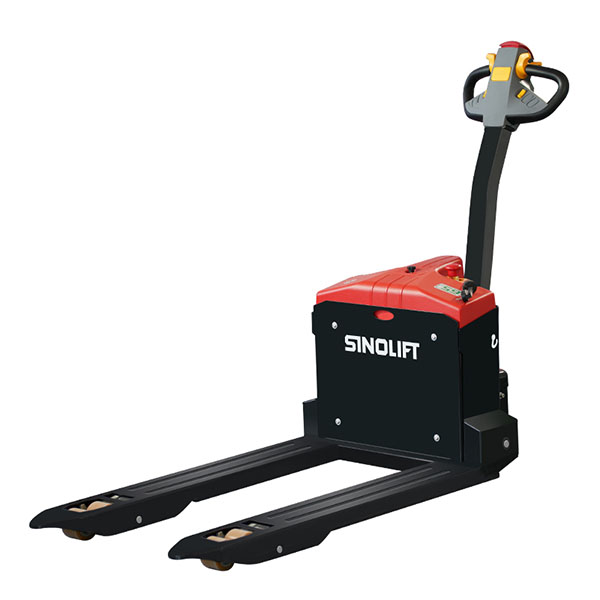

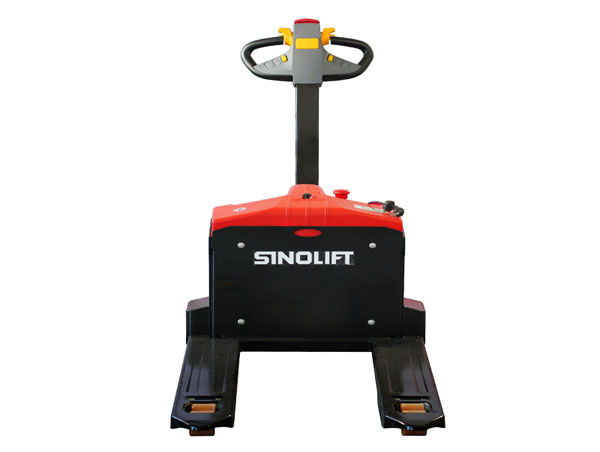

Name:EPT20-15EHJ Electric Pallet Truck 1.5-3 Ton
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 E Series Electric Pallet Truck
 06 Acid Battery Operated Pallet Truck
 07 Forklift Mounted Attachment
 08 Lifting Crane Equipment
 09 Jack and Skates
 10 Electric Towing Tractor
 11 Counter Balanced Forklift
 12 Electric Stacker
Other

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Compact design.Includes horn for safety.

2.High-torque DC drive handle heavy-duty jobs.
3.Smooth rolling poly-on-steel steer and roll wheels for easy maneuverability.
4.Battery charger included,built-in battery level gauge and Key-operated On/Off control for safety and security.

5.Use stable CUTIS electronic control system Integrate hydraulic pump features high quality seals.

6.Robust chassis and forks manufactured from steel (with epoxy paint finish).
7.Safety features include a power cut switch

Specifications:


Model EPT20-15EHJ
Drive unit Electric
Rated capacity Kg 1500
Type Operation Pedestrian
Load center mm 600mm
Load distance mm 883/946
Wheel base mm 1152/1215
Net weight(including Battery) Kg 140
Axle Loading.laden driving side mm 540/110
Axle Loading.unladen driving side mm 110/30
Tyre type driving wheels(diameter X width) PU/PU
Tyre size, driving wheels(diameter X width) mm Φ210X70
Tyre size, loading wheels(diameter X width) mm 2XΦ80X60(Φ74X88)
wheels,number driving,caster/loading(x=driving wheels) mm 1X1/4
track width,rear,loading side mm 410(535)
Lift height mm 115
Height drawbar in drawing position min,/max mm 715/1280
Lowered height mm 85(75)
Overall length mm 1588
Length to face of forks mm 438
Overall width mm 560(685)
Fork dimensions mm 50X150X1150
Distance fork arms mm 560/685
Ground slearance,center of wheelbase mm 35
Asile width for pallets 1000X1200 crossways mm 1669
Aisle Width For Pallets 800X1200 Crossways mm 1869
Turning radius mm 1415
Travel speed,laden/unladen k/mh 3,5/4
Lift speed,laden/unladen m/s 10mm/time
Lowering speed,laden/unladen m/s Controlable
Max,Gradeability,laden/unladen mm 2/6
Service bake type Electromagnetic
Drive motor rating S2 60 min kw 0.65
Lift motor rating at S3 15% kw manual lifting
The maxium allowed size battery mm 185/125/190
Battery voltage/norminal capacity k20 mm 24/30
Battery weight kg 9.5X2
type of drive control DC
Steering type Mechanical
Sound pressure level at the driver's ear mm 74
