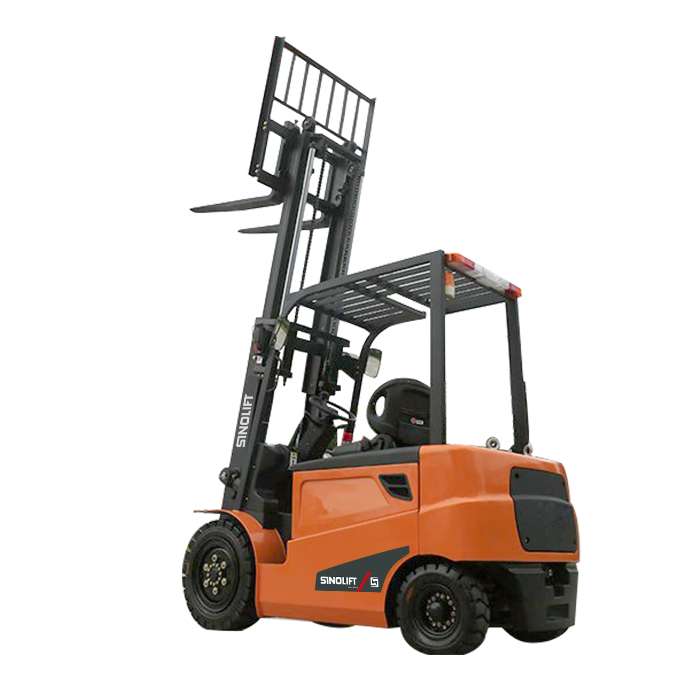

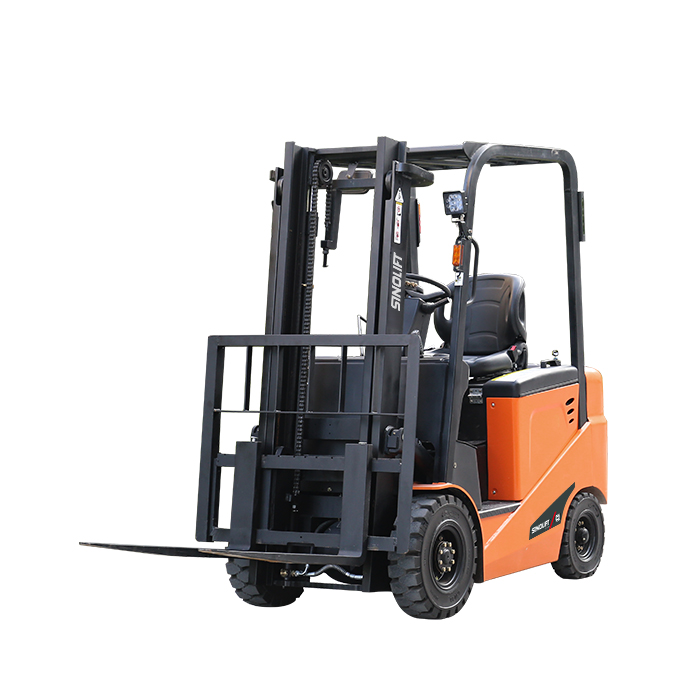

Name:CPD20E Electric Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Drum Grabber
Forklift or Crane Mounted Drum Handler
Cylinder Handling Trolley
Mini Pallet Stacker
Work Positioner Lift
Platform Hand Trolley
Drum dumping equipment
Other
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Aerial Work Platform
Pallet Truck
Roll Handling Trolley
Pallet Tilter
Industrial Material Handling Equipment
 01 Hand Pallet Truck
 02 High Lift Scissors Pallet Truck
 03 Mechanical Pallet Truck
 04 Lithium Battery Operated Pallet Truck
 05 Acid Battery Operated Pallet Truck
 06 Forklift Mounted Attachment
 07 Lifting Crane Equipment
 08 Jack and Skates
 09 Electric Stacker
 10 Counter Balanced Forklift

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

CPD20E Electric Stacker

1.Driver could easy to read and understand it according to the right instrument panel with clear meter display.
2.Equipped with original imported American Curtis electric control system;The controller is directly fixed in the balanced weight to lead better heat dissipation.
3.Redesigned hudraulic control levers positioned next toseat to make operators feel comformation.
4.The standard LED lamps and warning lights make it safer,more energy efficient and create better werking condition.


Specifications:

MODEL NO. CPD20E
Maximum load capacity Q kg 2000
Overall length ( No fork) L' mm 2210
Overall length (Cargo fork) L mm 3280
Overall width W mm 1070
Height, mast lowered H1 mm 2070
Height of overhead guard(cabin) H4 mm 2180
Height, mast extended H2 mm 4035
Ground clearance, laden, below mast H5 mm 120
Ground clearance,unladen/laden,centre of wheelbase H7 mm 130
Front tread W3 mm 890
Rear tread W2 mm 920
Wheelbase L1 mm 1400
Front overhang L2 mm 430
Lift height H mm 3000
Free lift height H3 mm 0
Mast tilt angle, front/rear α/β ° 6/8
Max.lift speed unladen mm/s 320
laden mm/s 274
Max. travel speed unladen km/h 14
laden km/h 12
Turning radius R mm 2010
Max. gradability,laden % 12
Load centre distance C mm 500
Curb weight(with battery) kg 3480
Tyre Front 6.50-10-10PR
Rear 5.00-8-10PR
Motor Drive kw 8
Lift kw 12
Battery V/Ah 48/450
Type of drive control Full AC system
Aisle width for lengthways 800*1000 mm 3850
Aisle width for lengthways 1000*1200 mm 3650
Container quantity(1*20GP/40HQ) 20GP/40HQ units 5/10
