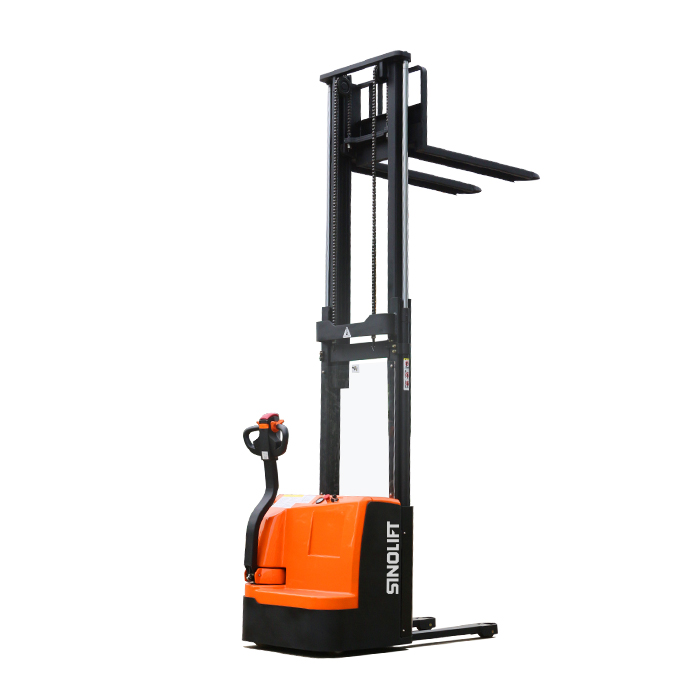

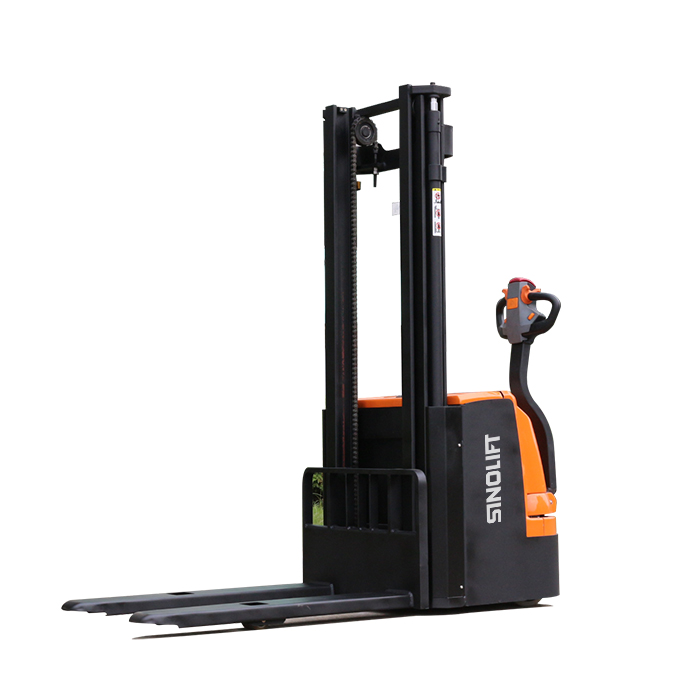

CDD15C Full Electric Walkie Stacker
LOAD CAPACITY: 1500KG
LIFTING HEIGHT: 2500MM,3000MM, 3500MM, 4000MM
▲Vertical AC drive system, precise control, maintenance-free, safe and reliable.
▲ZAPI Controller, Timer, Power meter, Easy to operate and maintain.
▲Reliable Quality of the United States AMP Waterproof Plug-ins and electrical parts, All Wires, Cables have Reliable Protection, Fixed, Greatly Reducing Electrical Failure.
|
|
Model
|
CDD15C
|
|
Load capacity/rated load
|
kg
|
|
1500
|
|
Load center distance
|
mm
|
C
|
600
|
|
Overall length
|
mm
|
L1
|
1940
|
|
Overall width
|
mm
|
b1
|
800
|
|
Overall height
|
mm
|
h1
|
2065
|
|
Wheelbase
|
mm
|
Y
|
1300
|
|
Height (handle)
|
mm
|
h2/h3
|
850/1250
|
|
Fork height, lowered
|
mm
|
h4
|
85
|
|
Max.lift height
|
mm
|
h5
|
2500/3000/3500/4000
|
|
Min.Ground clearance
|
mm
|
h6
|
30
|
|
Forks outside width
|
mm
|
b2
|
550/685
|
|
Forks inside width
|
mm
|
b3
|
230/365
|
|
Fork length
|
mm
|
h7
|
1150
|
|
Fork width
|
mm
|
e
|
160
|
|
Front tread
|
mm
|
b4
|
525
|
|
Max.Lift speed unladen
|
mm/s
|
|
120
|
|
Max.Lift speed laden
|
mm/s
|
|
105
|
|
Max.travel speed unladen
|
km/h
|
|
5
|
|
Max.travel speed laden
|
km/h
|
|
4.5
|
|
Min.ouside turning radius
|
mm
|
Wa
|
1470
|
|
Grade ability, laden
|
%
|
|
5
|
|
Grade ability, unladen
|
%
|
|
8
|
|
Weight (unladen)
|
kg
|
|
955
|
|
Battery capacity
|
Ah
|
|
210
|
|
Battery voltage
|
V
|
|
24
|
|
Lift motor (DC)
|
kw
|
|
2.2
|
|
Drive motor (DC)
|
kw
|
|
1.2
|
|
Aisle width of Crossways, 1000*1200 Pallet
|
mm
|
|
2405
|
|
Aisle width of Crossways, 800*1200 Pallet
|
mm
|
|
2340
|
|
